32 00 620 Adjusting rear axle

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: A camber change always means a toe change as well. The camber must therefore be adjusted first.

Adjusting camber:

Replace nut (2) and tighten to 5 Nm.

Turn eccentric bolt (1) to adjust camber to setpoint value.

Tighten nut (2).

Tightening torque 165 Nm.

Fig 1: Turning Eccentric Bolt Adjust Camber Setpoint Value

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting toe:

Replace nut (2) and tighten to 5 Nm.

Turn eccentric bolt (1) to adjust toe to specified value.

Tighten nut (2).

Tightening torque 65 Nm.

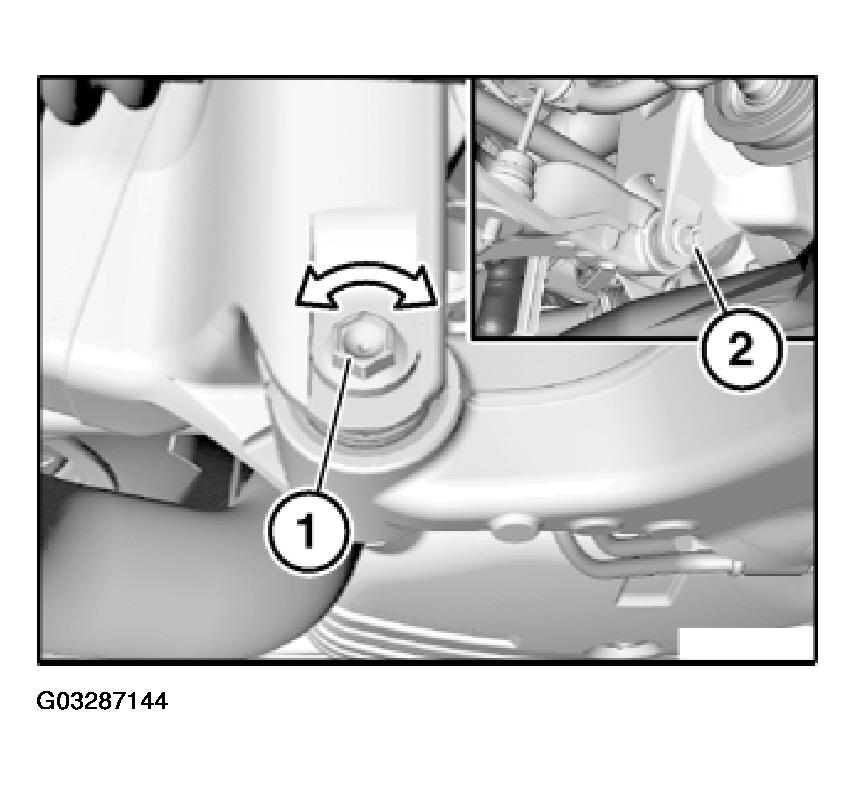

Fig 2: Turning Eccentric Bolt To Adjust Toe To Specified Value

Courtesy of BMW OF NORTH AMERICA, INC.
