32 00 610 Adjusting toe-in and camber on front axle

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Changes in axle geometry caused by accidents must under no circumstances be rectified by camber adjustment!

After installation:

Version with active front steering:

IMPORTANT: Once the special tool 32 4 150 has been fitted, the cumulative steering angle must still be set to "zero"!

Version without active front steering:

Adjusting toe-in/toe angle difference:

If necessary, remove steering gear cover at side.

Clean thread on tie rod.

Slacken clamping nut (2), gripping tie rod end (1) in the process.

Remove clamp (4).

Adjusting procedures:

  1. Turn tie rod (3) to adjust toe-in to specified value.
  2. Check cumulative steering angle; if necessary, set to "zero"
  3. Check toe values; if necessary, repeat adjustment procedure

Tighten down clamping nut (2).

Tightening torque, 51 N.m.

Fit clamp (4).

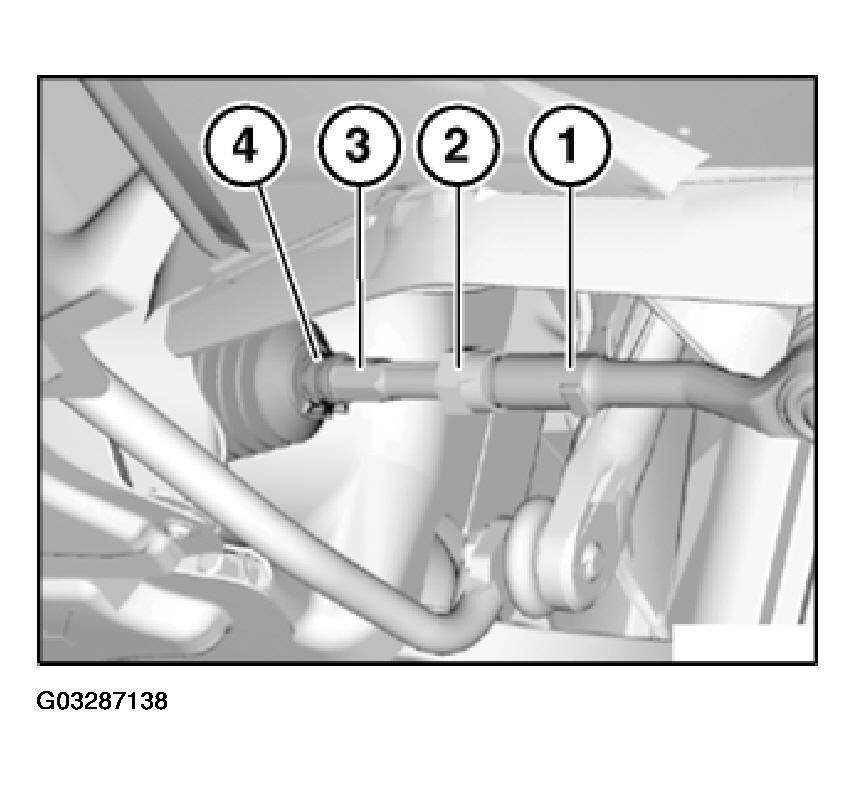

Fig 1: Adjusting Tie Rod End
G03287138Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting camber:

M5:

Disconnect connector (2).

Unclip connecting cable (1) from spring strut dome cover (3).

Detach connecting cable (1) from front spring strut.

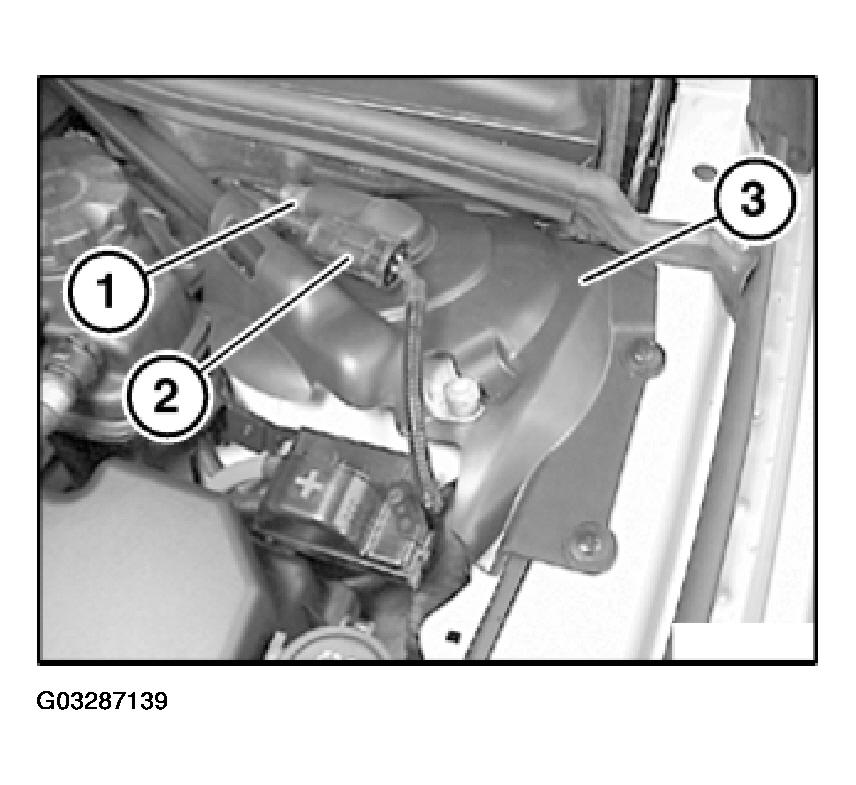

Fig 2: Unclipping Connecting Cable From Spring Strut Dome Cover
G03287139Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, release expander rivet (1).

If necessary, unclip spring strut dome cover (2) from front cross strut.

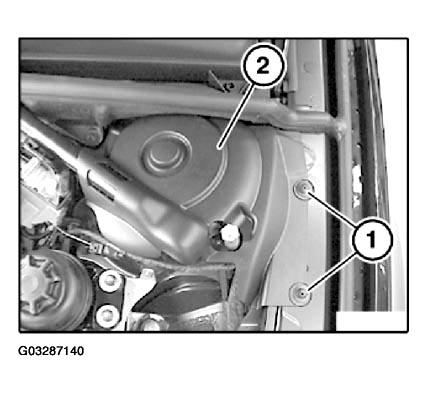

Fig 3: Unclipping Spring Strut Dome Cover From Front Cross Strut
G03287140Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove protective cap.

Knock out centering pin (1) in downwards direction.

Clean wheel arch from below in area of support bearing with compressed air.

Slacken nut (2) approx. 1 to 1.5 turns.

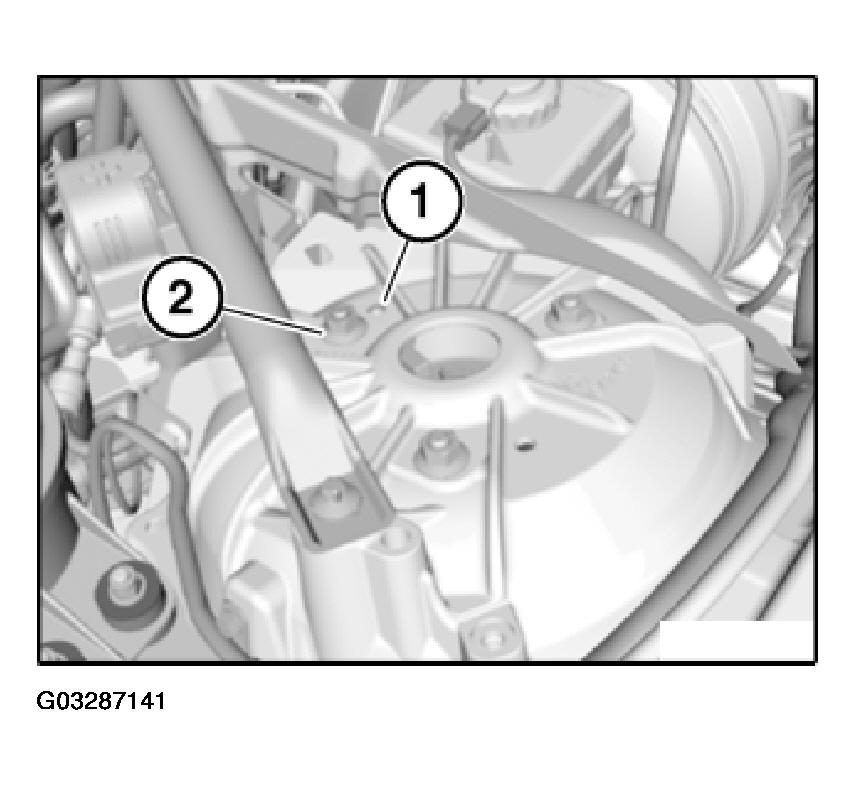

Fig 4: Knocking Out Centering Pin
G03287141Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 32 3 190 into wheel arch opening and over nut.

Replace nuts (3) and screw on but do not tighten down fully.

Adjusting procedures:

  1. Turn nut (4) in special tool 32 3 190 to adjust camber to specified value.

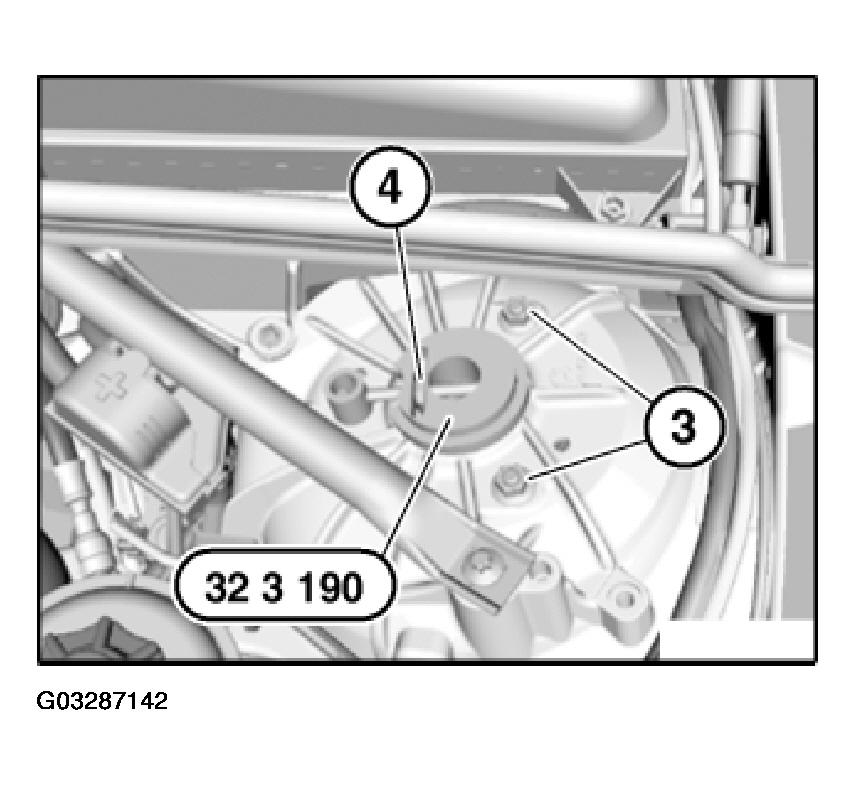

    Fig 5: Turning Nut (4) In Special Tool 32 3 190 To Adjust Camber
    G03287142Courtesy of BMW OF NORTH AMERICA, INC.
  2. Check cumulative steering angle; if necessary, set to "zero"
  3. Check camber values; if necessary, repeat adjustment procedure

Tighten down nuts (3)

Tightening torque 34 N.m.

Remove special tool 32 3 190.

Replace nut (2) and tighten down.

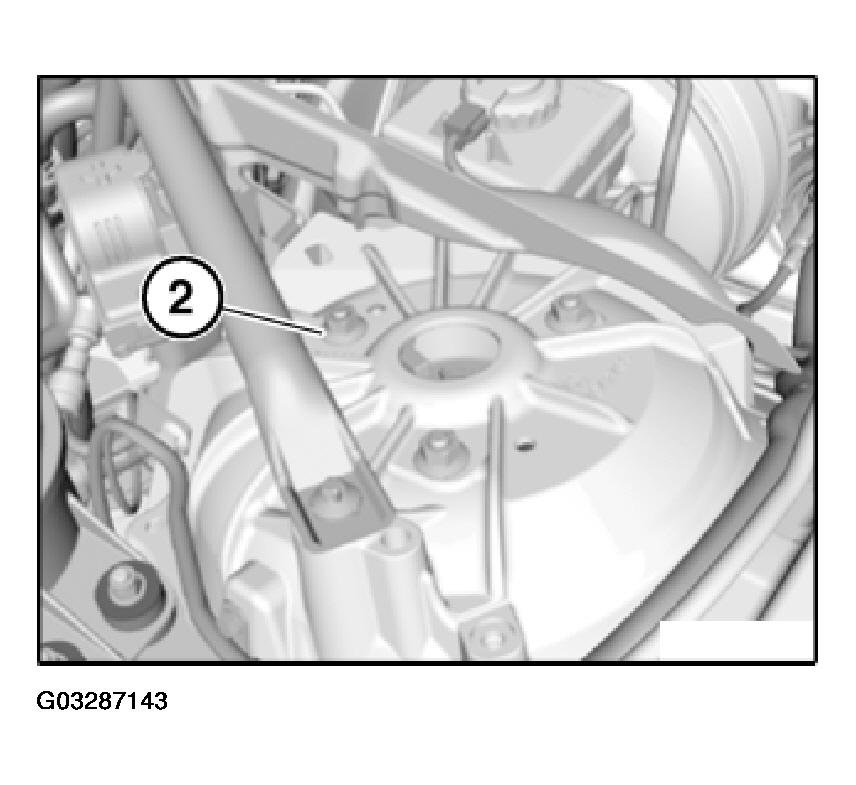

Fig 6: Identifying Nut (2)
G03287143Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 34 N.m.
