Removing radiator cover

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Illustrations show N62:

Release screws along line.

Unclip Bowden cable (1).

Remove cover (2).

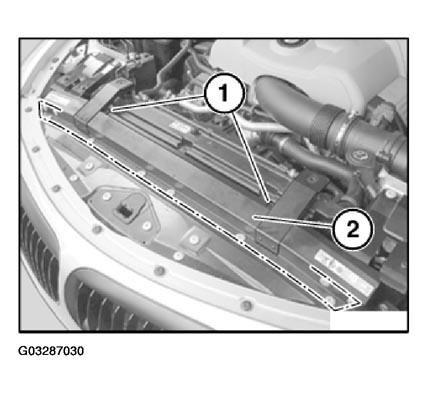

Fig 1: Loosening Bowden Cable And Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustrations show N62:

Unclip line (1).

Unfasten screws.

Remove module carrier cover (2).

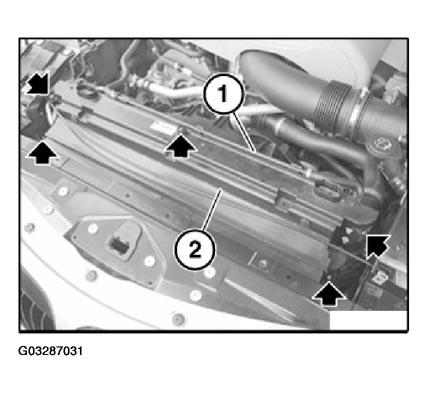

Fig 2: Removing Module Carrier Cover

Courtesy of BMW OF NORTH AMERICA, INC.
