17 11 370 Removing and installing/replacing cooling loop for power steering

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove module carrier

Recycling:

Catch and dispose of hydraulic fluid.

Observe country-specific waste-disposal regulations.

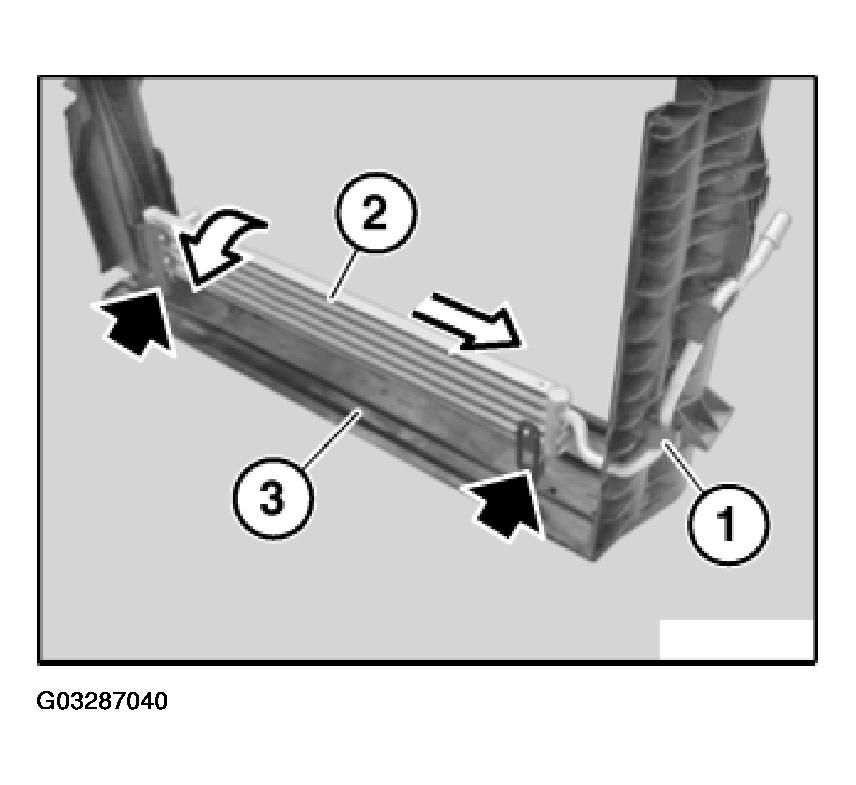

Fig 1: Removing Cooling Loop

Courtesy of BMW OF NORTH AMERICA, INC.

Release retaining clip (1) on left.

Unfasten screws.

IMPORTANT: Risk of damage to connecting pipes.

Carefully press cooling loop (2) on right towards front, then unclip on left and remove from module carrier (3).
