17 11 046 Removing and installing/replacing module carrier

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove radiator cover.
Remove fan cowl with electric fan
Drain coolant
Remove radiator
Draw off fluid from power steering

Installation:

Bleed power steering unit, refer to 32 13 006 BLEEDING POWER STEERING UNIT .

Unlock hydraulic lines on cooling loop and disconnect
Secure A/C condenser against damage and against falling down.

Press lock (1) and remove holder (2) downwards.

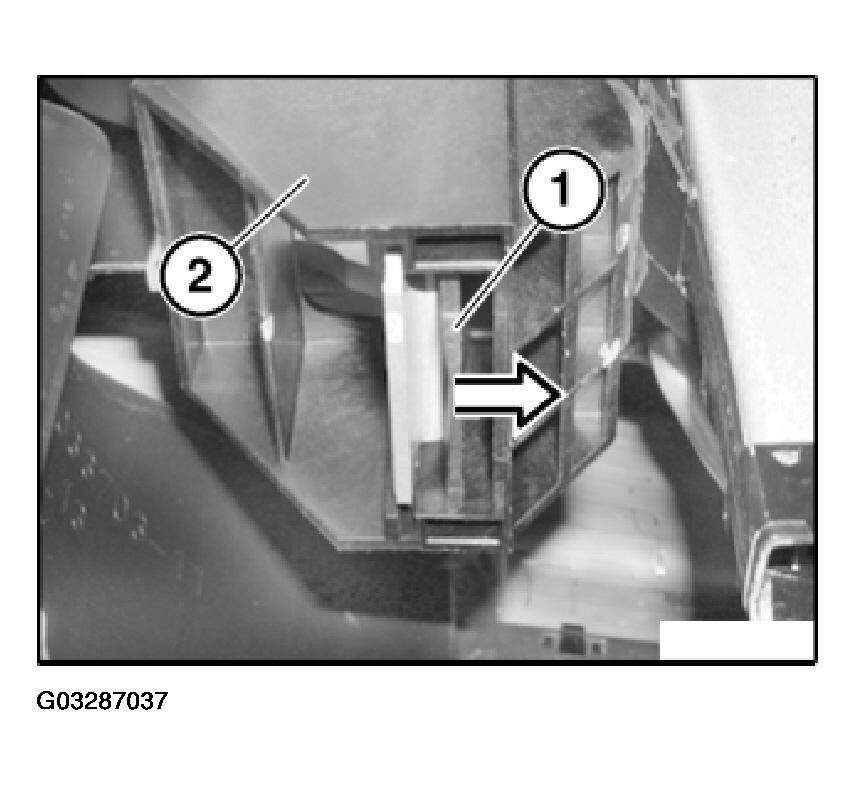

Fig 1: Pressing Lock And Removing Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Illustration shows the left holder: The same procedure applies to the opposite side.

Installation:

Rubber mounts fall out easily, ensure correct installation position.

Remove module carrier (1) towards bottom.

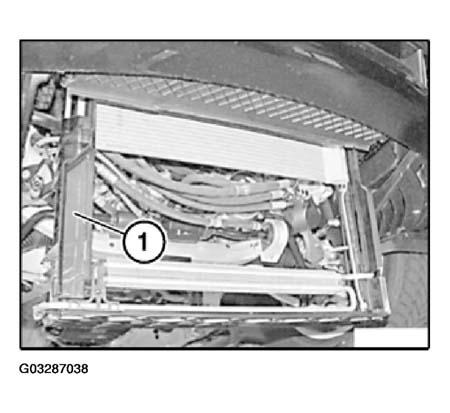

Fig 2: Removing Module Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

When replacing module carrier:

Convert power steering cooling loop.
