17 11 000 Removing and installing radiator (N62)
WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of scalding!
Only perform this work after engine has cooled down.
Necessary preliminary tasks:
- Follow instructions for working on cooling system.
- Remove fan cowl
- Remove front engine underguard
- Drain coolant
- Detach heat exchanger for automatic transmission from radiator.
- Unlock and detach all coolant hoses on radiator.

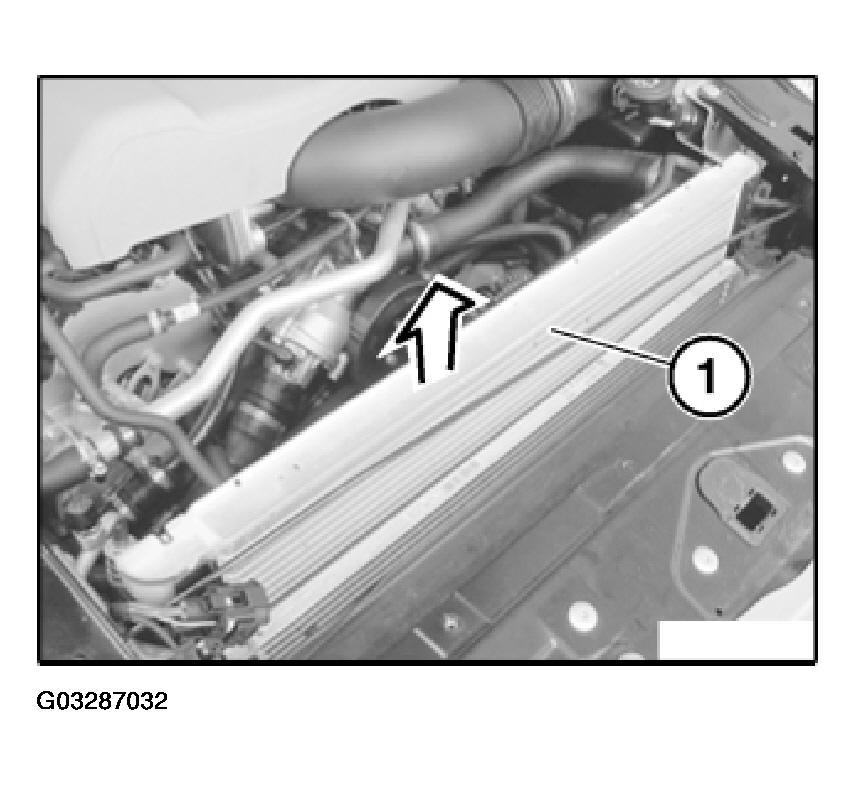

Remove radiator (1) towards top.
Installation:
Ensure correct seating in side guides.
Top up coolant.
Vent cooling system and check for leaks.
