13 53 240 Replacing complete injection pipe (N62): Recycling

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Fuel escapes when fuel line is detached. Catch and dispose of escaping fuel.

Observe country-specific waste-disposal regulations.

Remove protective cap from compressed air connection (1).

Blow fuel back into tank with a short blast of compressed air (max. 3 bar) at compressed air connection (1).

Unfasten screws.

Remove both injection pipes (2) towards top.

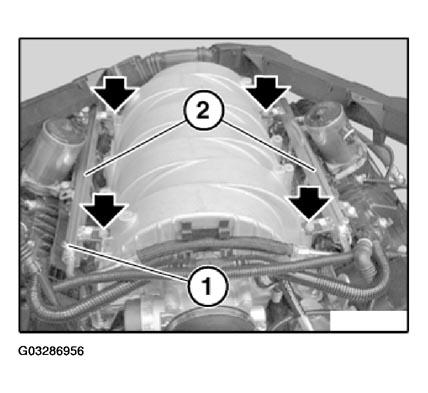

Fig 1: Removing Protective Cap From Compressed Air Connection
G03286956Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect fuel hose (1).

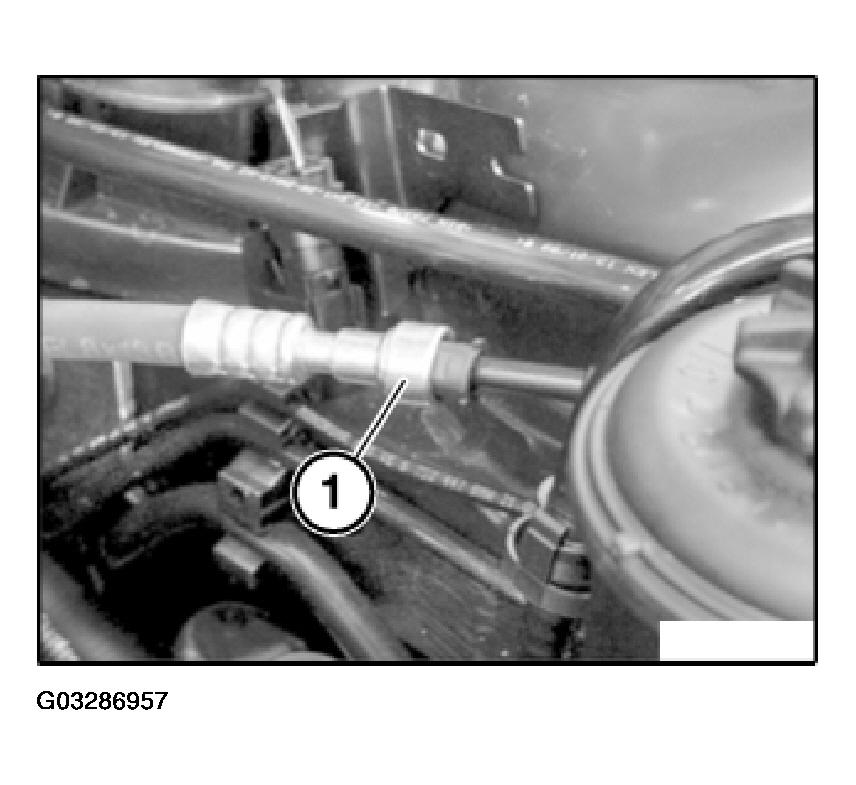

Fig 2: Disconnecting Fuel Hose
G03286957Courtesy of BMW OF NORTH AMERICA, INC.

Seal fuel hose with special tool 13 5 281.

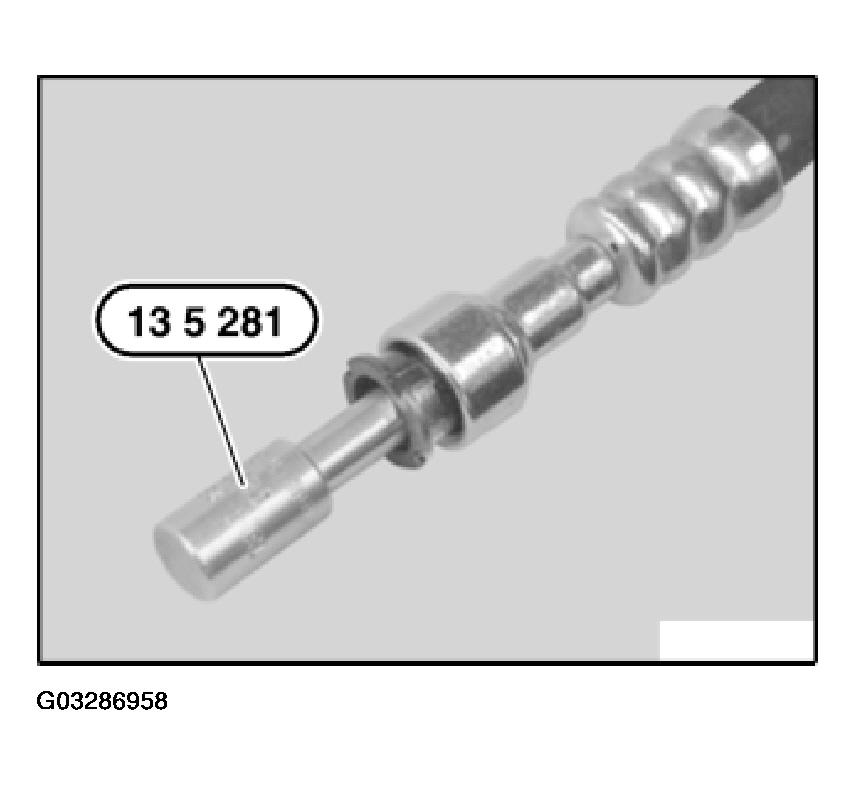

Fig 3: Sealing Fuel Hose With Special Tool
G03286958Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

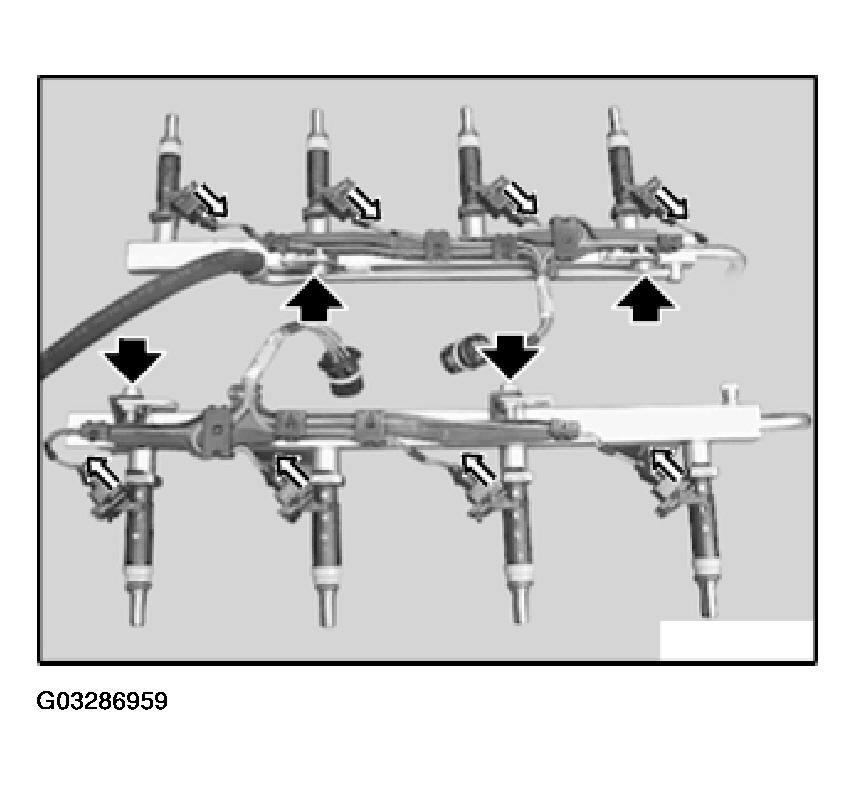

Fig 4: Unfastening Screws
G03286959Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector and remove.

Lever out retainers (1).

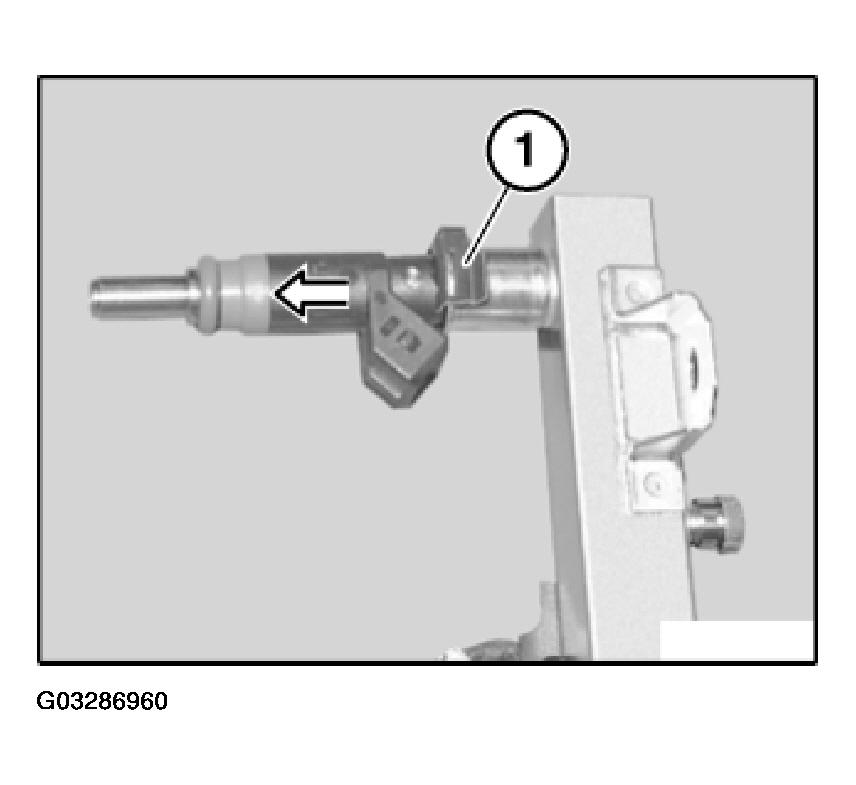

Fig 5: Removing Retainers
G03286960Courtesy of BMW OF NORTH AMERICA, INC.

Pull fuel injectors out of injection pipe.

Installation:

  1. Replace sealing rings on fuel injectors and coat with anti-friction rubber coating.
NOTE: Check stored fault messages. Now clear the fault memory.
