12 41 020 Removing and installing/replacing starter motor (N62)

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Switch off ignition
Disconnect battery negative lead and cover
Remove reinforcement plate
E60/E63/64/E65/E66 only: Remove right exhaust manifold

Release screw and nut.

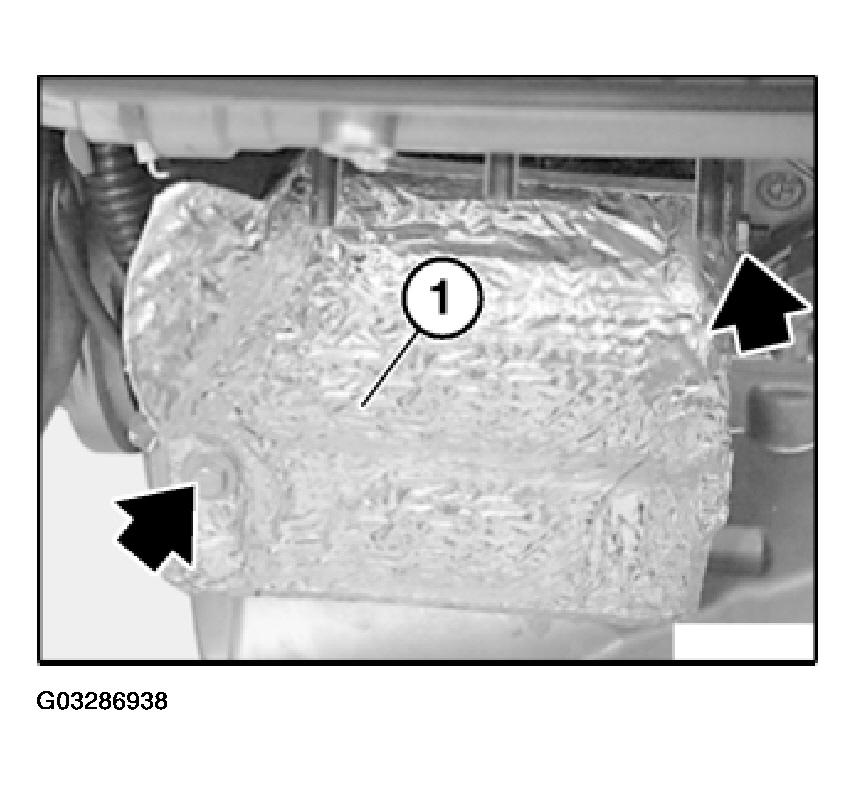

Remove heat shield (1).

Fig 1: Removing Heat Shield

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten nut.

Tightening torque, refer to 12 41 4AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

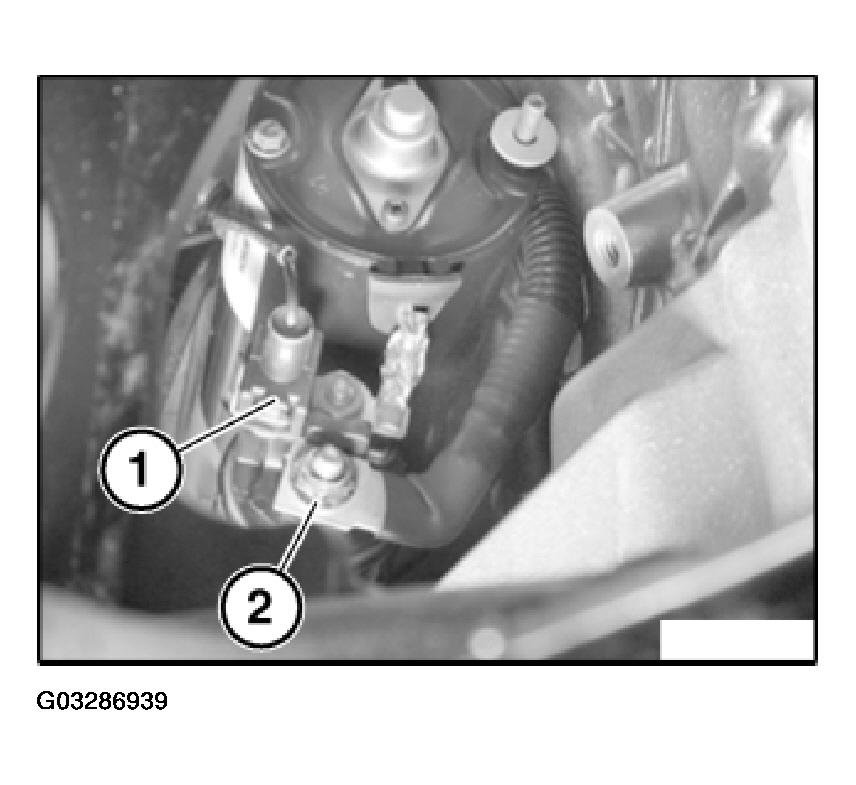

Unlock plug (1) and remove.

Fig 2: Unlocking Plug

Courtesy of BMW OF NORTH AMERICA, INC.

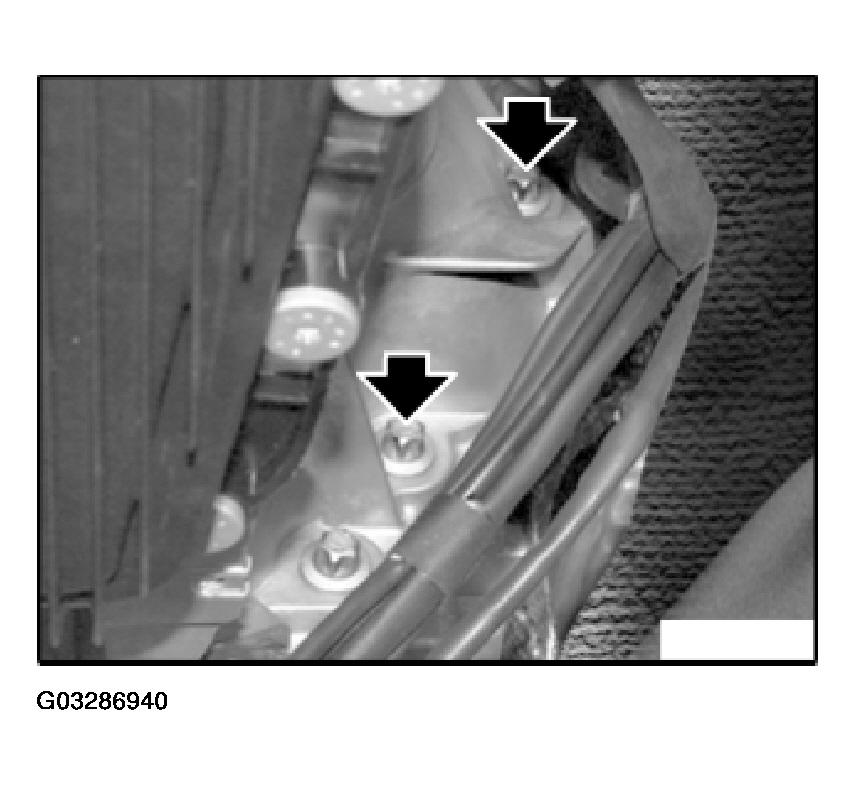

Release screws and pull release out of transmission mounting and remove.

Fig 3: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, refer to 12 41 1AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Installation:

Check starter pinion and ring gear for damage, replace damaged parts if necessary.
