12 13 511 Replacing ignition coil (N62)

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

Remove acoustic cover.

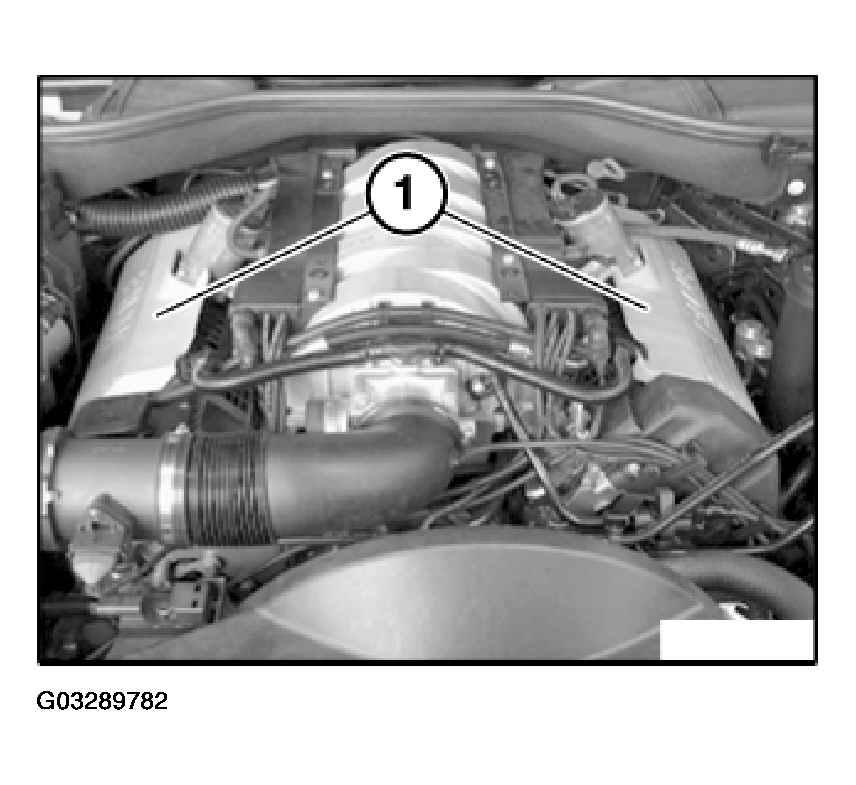

Pull ignition coil covers (1) out of rubber grommets.

Fig 1: Removing Ignition Coil Covers

Courtesy of BMW OF NORTH AMERICA, INC.

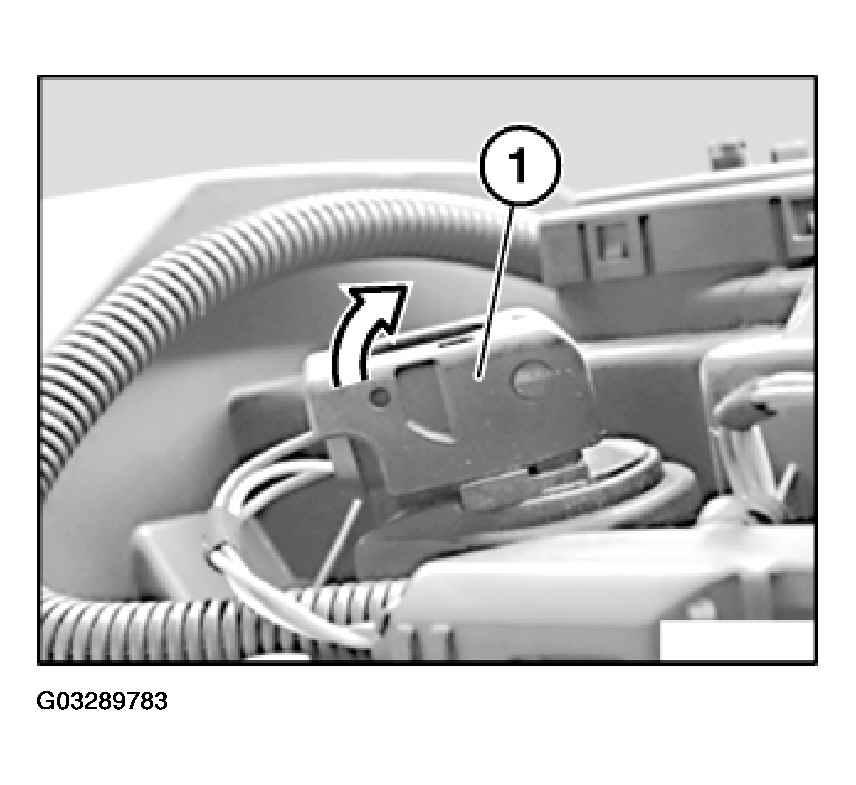

Unlock plug fastener (1) of ignition coil.

Fig 2: Releasing Ignition Coil Plug Fastener

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug.

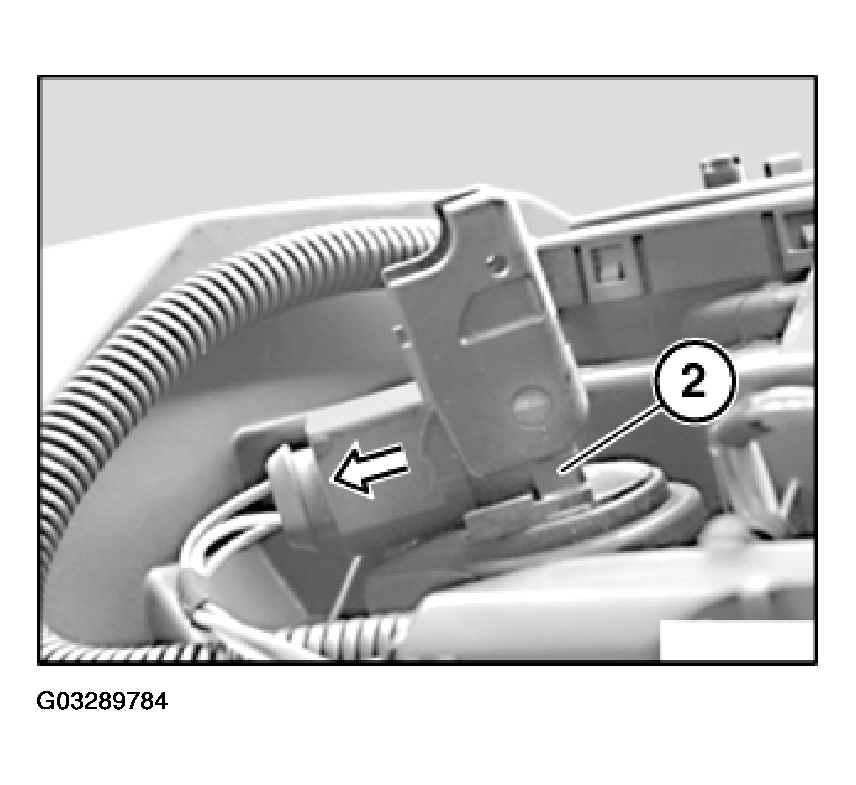

Fig 3: Removing Ignition Coil

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out ignition coil (2).

This procedure is applicable to all ignition coils.

Installation:

Insert rubber seal on ignition coils (2) between guides.

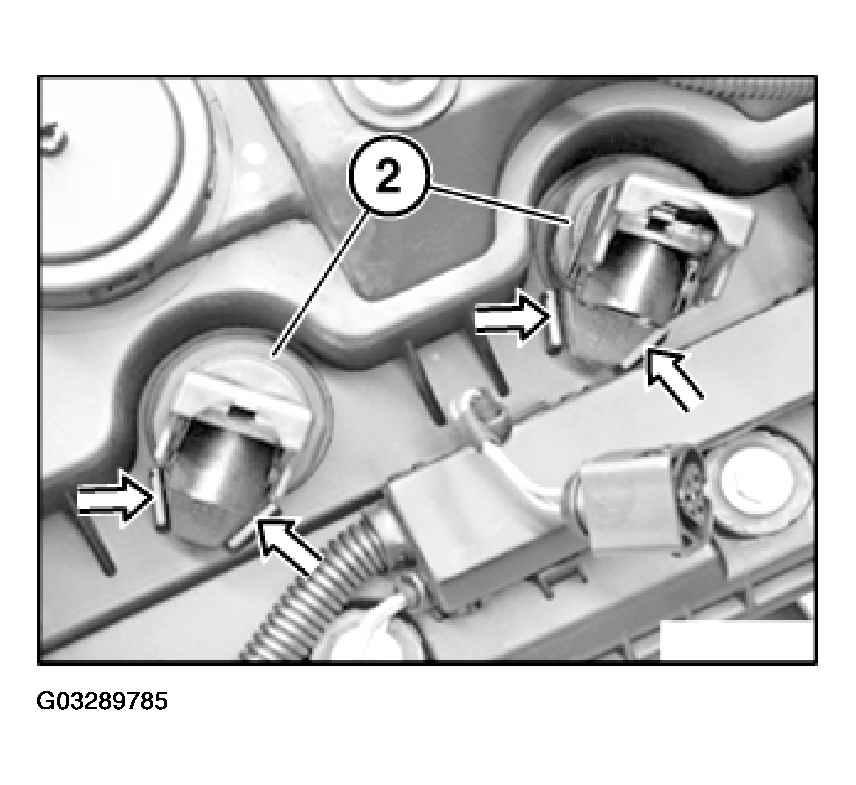

Fig 4: Inserting Rubber Seal On Ignition Coils Between Guides

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control unit. Check stored fault messages. Rectify faults. Now clear the fault memory.
