12 14 522 Replacing pulse generator on left inlet camshaft (N62)

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

(cylinder bank 5 to 8)

Interrogate fault memory of DME control unit.

Switch off ignition.

Remove acoustic cover.

Remove left ignition coil cover.

Unlock and detach plug connection (1).

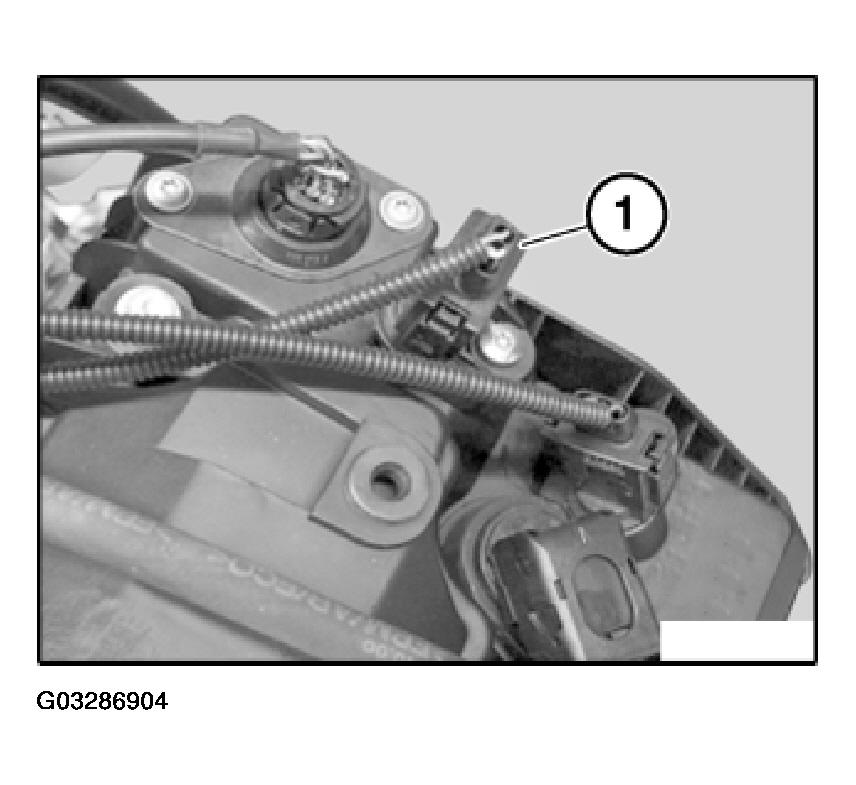

Fig 1: Unlocking And Detaching Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw.

Remove pulse generator (2).

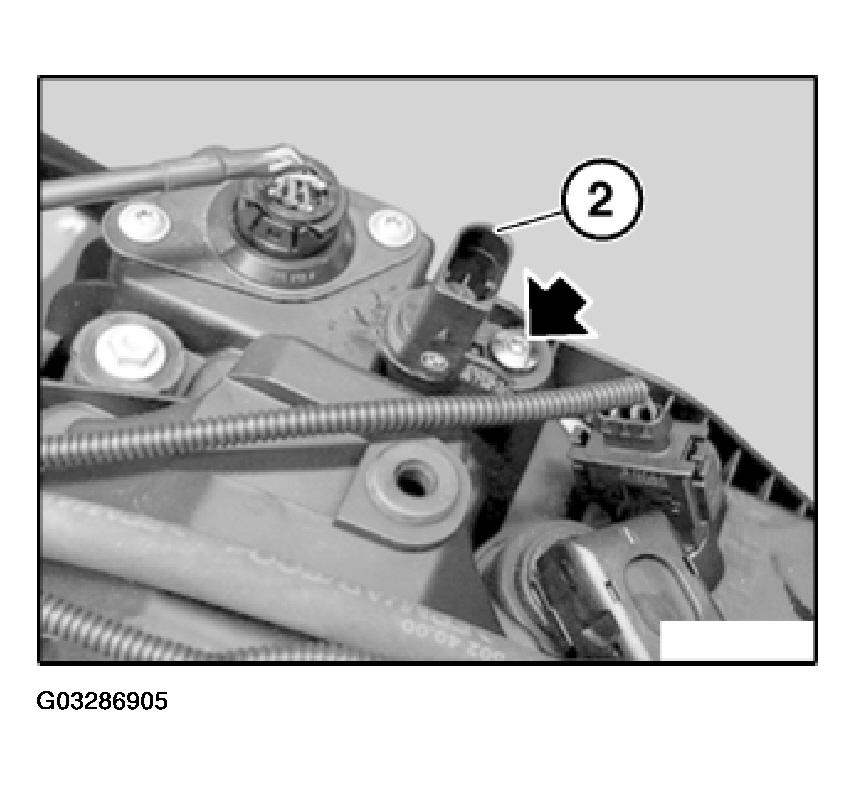

Fig 2: Removing Pulse Generator

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing ring and coat with anti-friction rubber coating.

NOTE: Interrogate fault memory of DME control unit. Check stored fault messages. Rectify faults. Now clear the fault memory.
