12 31 ... Replacing alternator belt pulley

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: For special tools, refer to ENGINE ELECTRICAL SYSTEM - SPECIAL TOOLS - 645CI .

12 7 110

Remove and install alternator drive belt.

Depending on alternator type, grip shaft with:

hexagon socket
multi-tooth socket or
Torx socket wrench

Release nut with special tool 12 7 110.

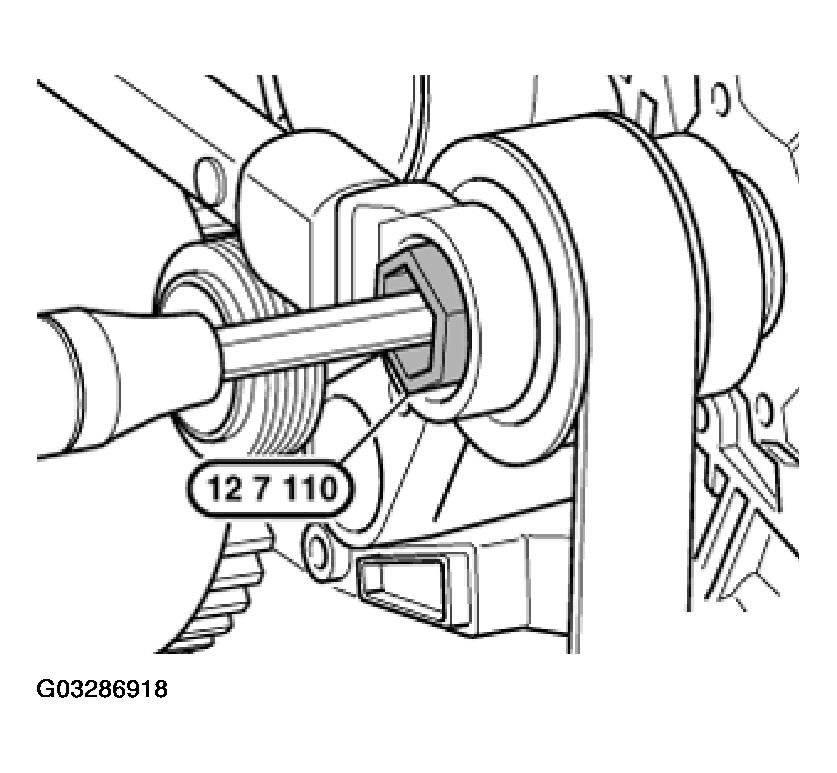

Fig 1: Releasing Nut With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, refer to 12 31 2AZ / 12 31 3AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .
