11 37 040 Removing and installing/replacing right eccentric shaft sensor (N62/N62TU)

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

(cylinder bank 1 to 4)

Remove right cylinder head cover. Refer to 11 12 006 REMOVING AND INSTALLING / SEALING RIGHT CYLINDER HEAD COVER (N62 / N62TU) .

Unfasten screws.

Remove eccentric shaft sensor (1).

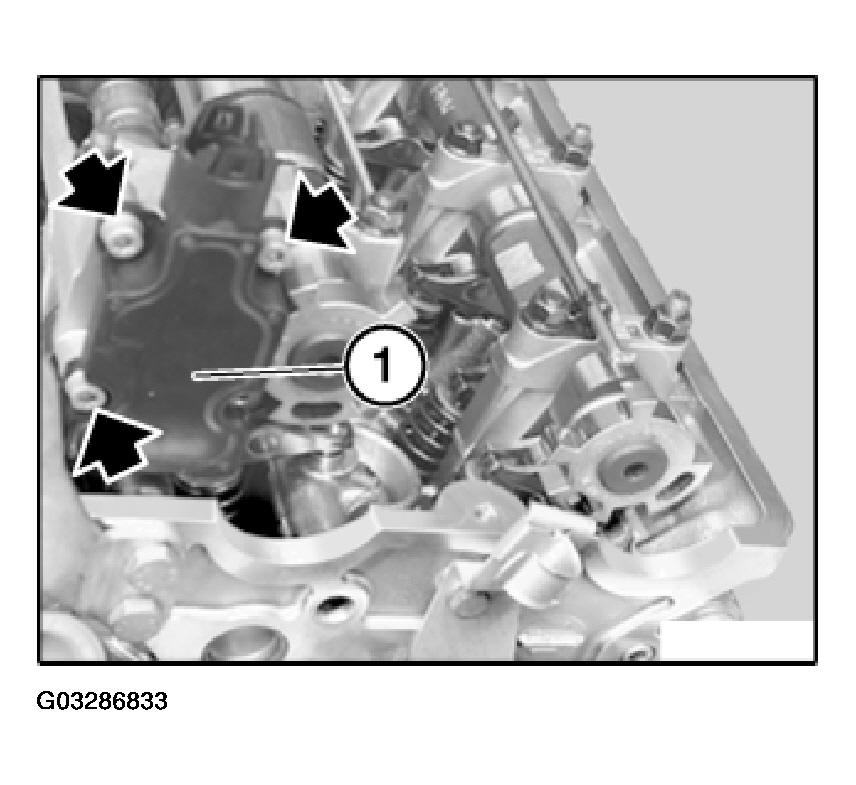

Fig 1: Removing Eccentric Shaft Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Read out fault memory of control unit of Digital Motor Electronics (DME).

Check stored fault messages.

Rectify faults.

Now clear the fault memory.
