11 37 035 Removing and installing/replacing left eccentric shaft sensor (N62/N62TU)

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

(cylinder bank 5 to 8)

Remove left cylinder head cover. Refer to 11 12 005 REMOVING AND INSTALLING/SEALING LEFT CYLINDER HEAD COVER (N62/N62TU) .

Unfasten screws.

Remove eccentric shaft sensor (1).

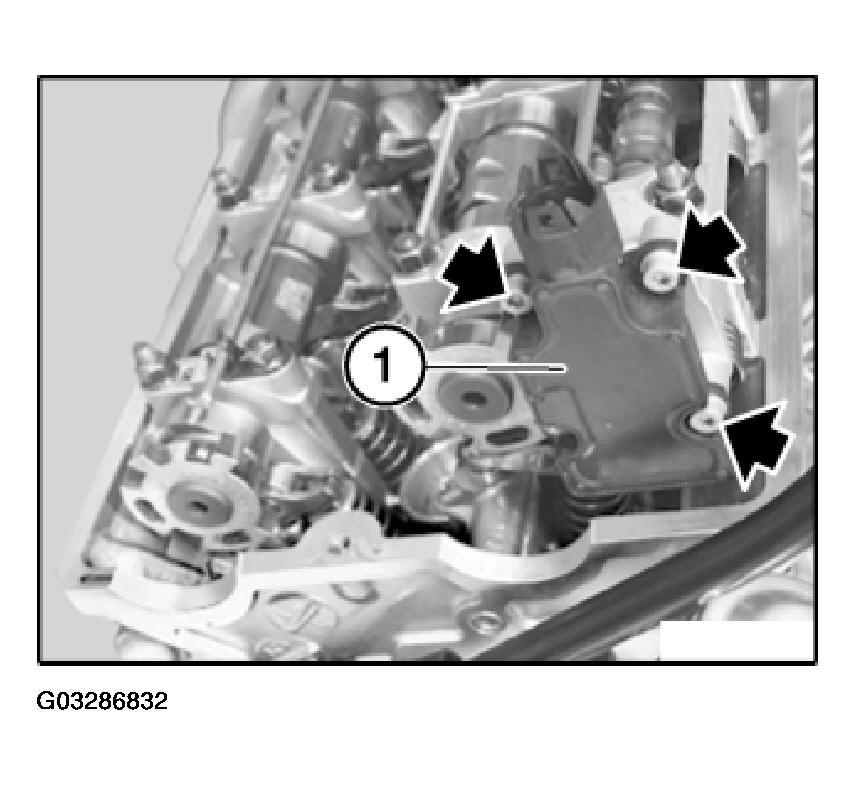

Fig 1: Removing Eccentric Shaft Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Read out fault memory of control unit of Digital Motor Electronics (DME).

Check stored fault messages.

Rectify faults.

Now clear the fault memory.
