11 37 008 Removing And Installing/Replacing Right Eccentric Shaft (N62 From 9/03): Installation

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Installation of eccentric shaft is described separately from removal.

NOTE: Lubricate eccentric shaft at bearing positions.

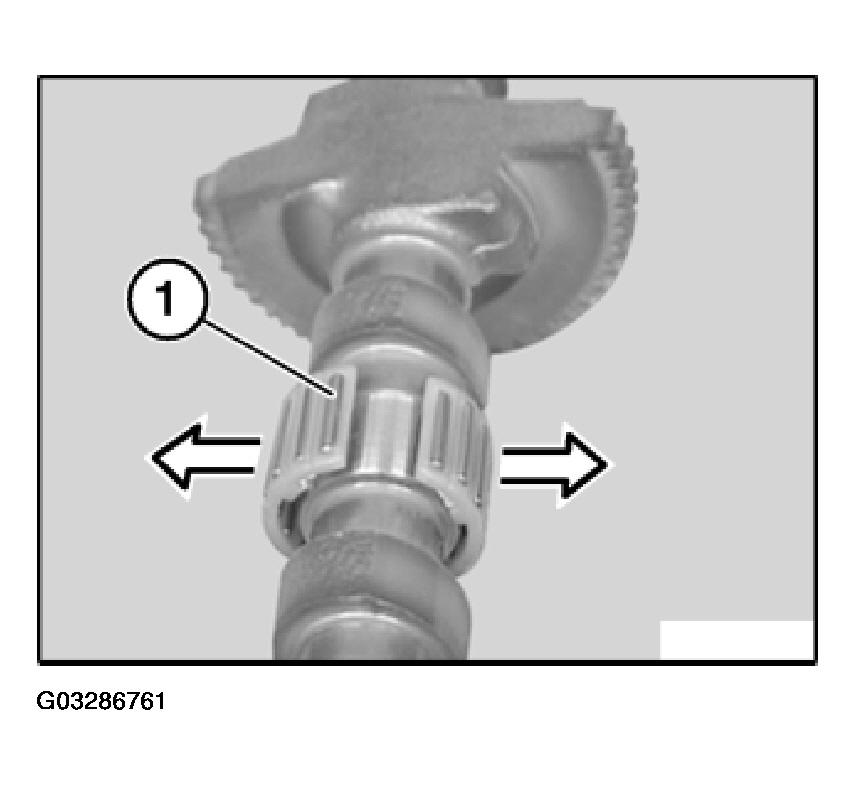

Replace needle bearing (1).

IMPORTANT: Needle bearings break off very easily when installed.

Carefully press needle bearings (1) apart at split position only to such an extent that they can be fitted over eccentric shaft.

Fig 1: Pressing Needle Bearings Apart At Split Position

G03286761

Courtesy of BMW OF NORTH AMERICA, INC.

Eccentric shafts from 2/2003:

NOTE: Eccentric shafts of cylinders 1 to 4 and 5 to 8 are identical parts.

IMPORTANT: Note installation direction of eccentric shafts. Depending on the side on which the magnet wheel is fitted, the eccentric shafts are used for cylinders 1 to 4 or 5 to 8. Incorrect assembly will result in engine damage.

Installation of magnet wheel:

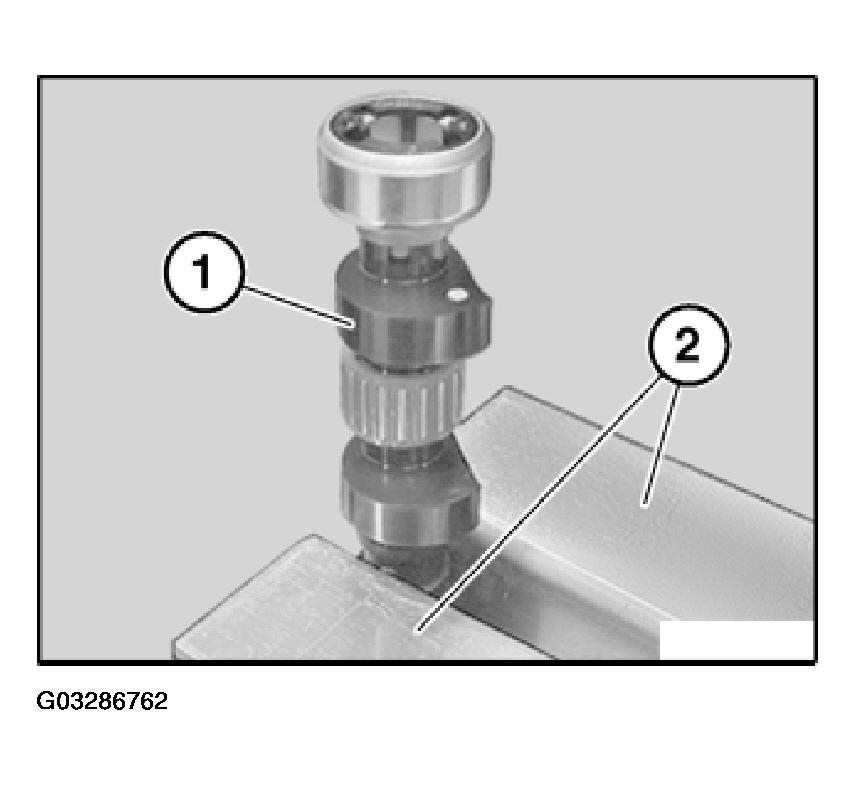

NOTE: Carefully clamp eccentric shaft (1) as illustrated with protective jaws (2) in a vice.

Fig 2: Clamping Eccentric Shaft With Protective Jaws

G03286762

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Incorrect assembly will result in engine damage.

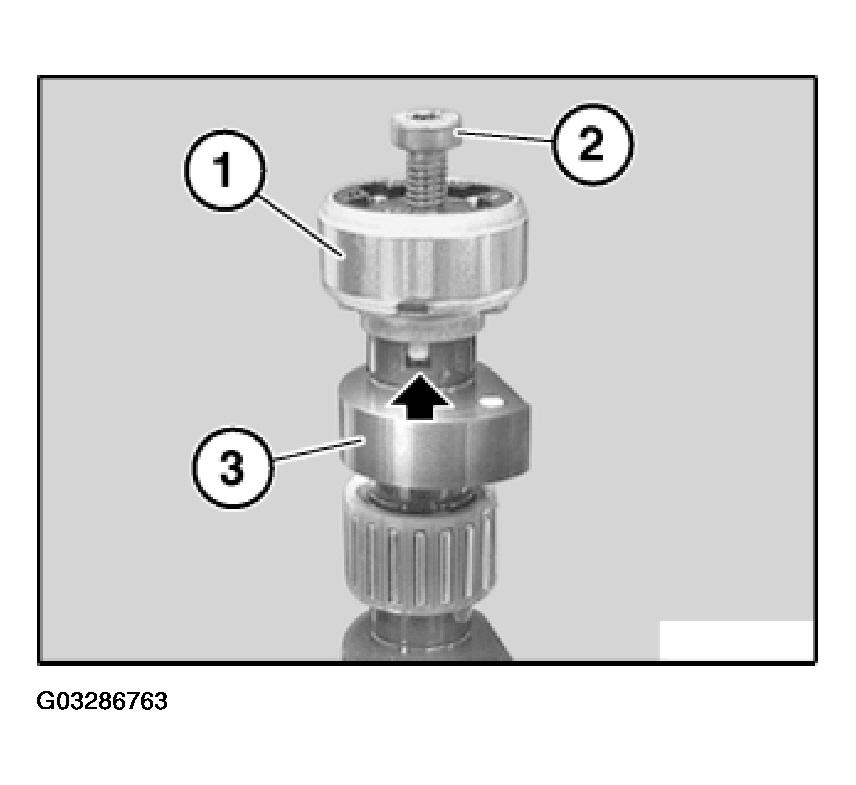

Assemble eccentric shaft for cylinder bank 1 to 4:

The machined curvature (3) and the groove in the eccentric shaft must point forwards as illustrated.

The unmachined surface on the eccentric points to the right.

Secure magnet wheel (1) with lug in eccentric shaft groove.

IMPORTANT: Only install original antimagnetic screw (2).

Insert screw (2) and tighten down.

Tightening torque 11 37 1AZ in ENGINE - TIGHTENING TORQUES .

Fig 3: Identifying Magnet Wheel With Lug In Eccentric Shaft Groove

G03286763

Courtesy of BMW OF NORTH AMERICA, INC.

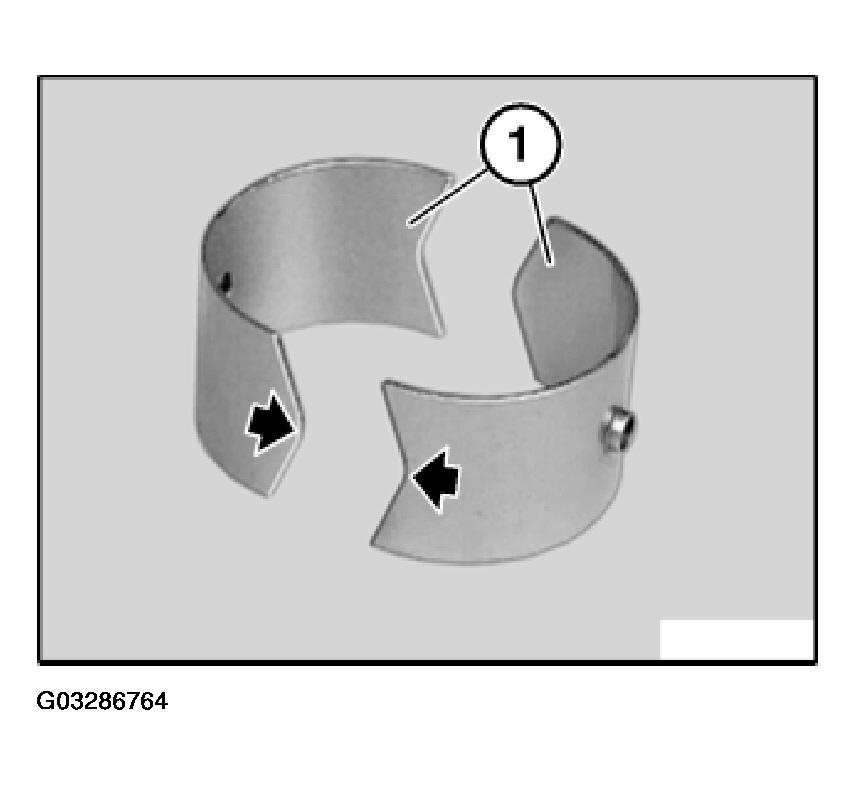

NOTE: Replace bearing shells (1) of needle bearings.

IMPORTANT: Bearing shells (1) must be installed in such a way that ends of bearing shells (1) face each other as shown in illustration.

Fig 4: Replacing Bearing Shells Of Needle Bearings

G03286764

Courtesy of BMW OF NORTH AMERICA, INC.

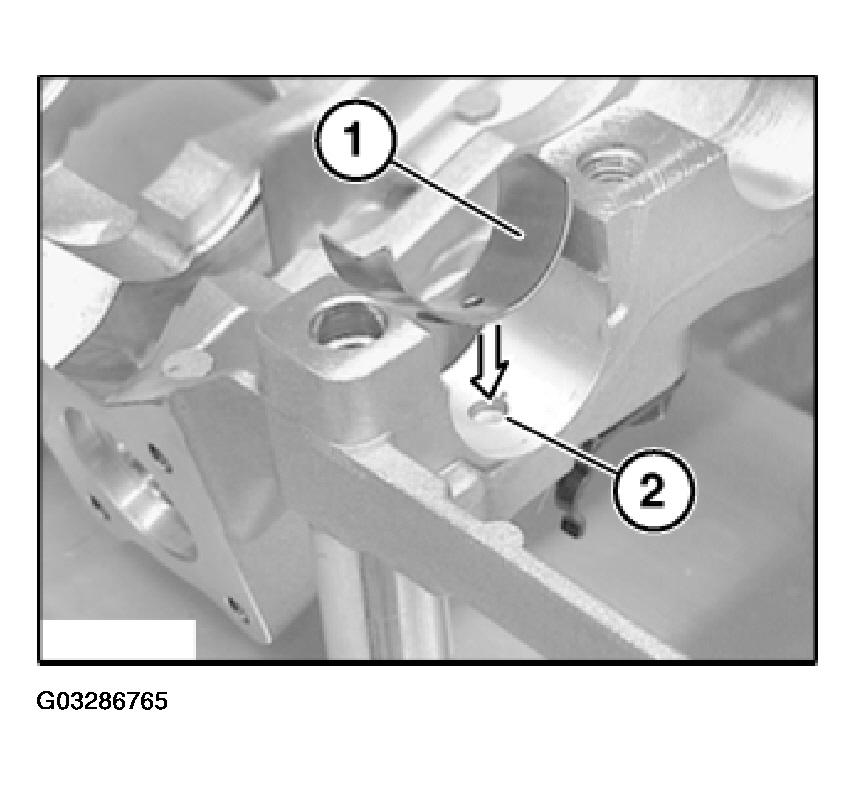

Insert bearing shells (1) into bearing bracket so that it is secured in bore (2).

Fig 5: Inserting Bearing Shells Into Bearing Bracket

G03286765

Courtesy of BMW OF NORTH AMERICA, INC.

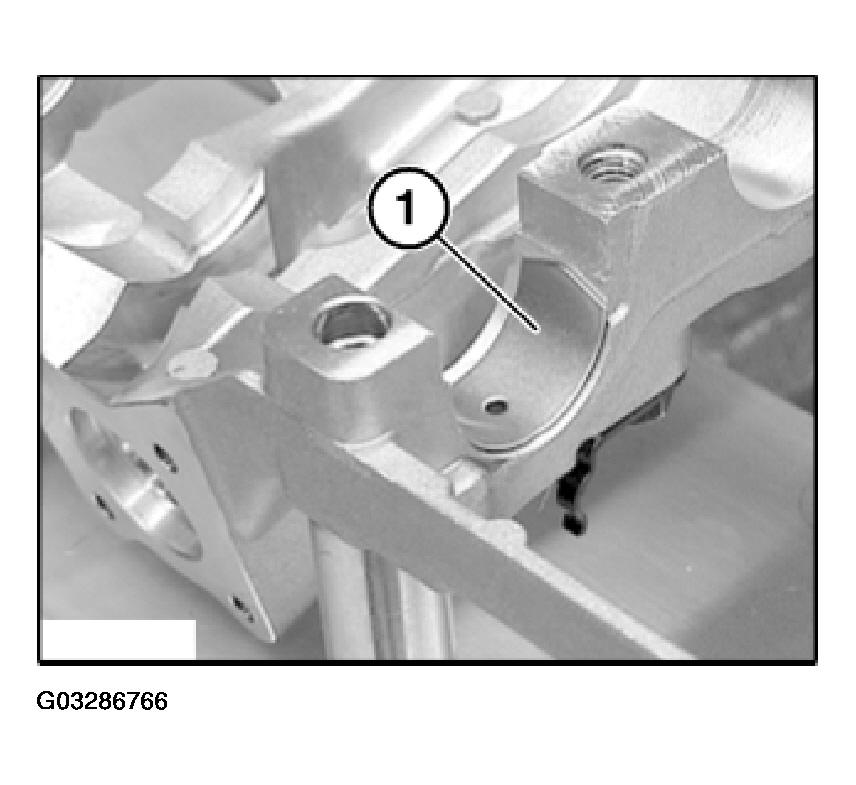

Lubricate bearing shells (1) with engine oil.

Fig 6: Lubricating Bearing Shells With Engine Oil

G03286766

Courtesy of BMW OF NORTH AMERICA, INC.

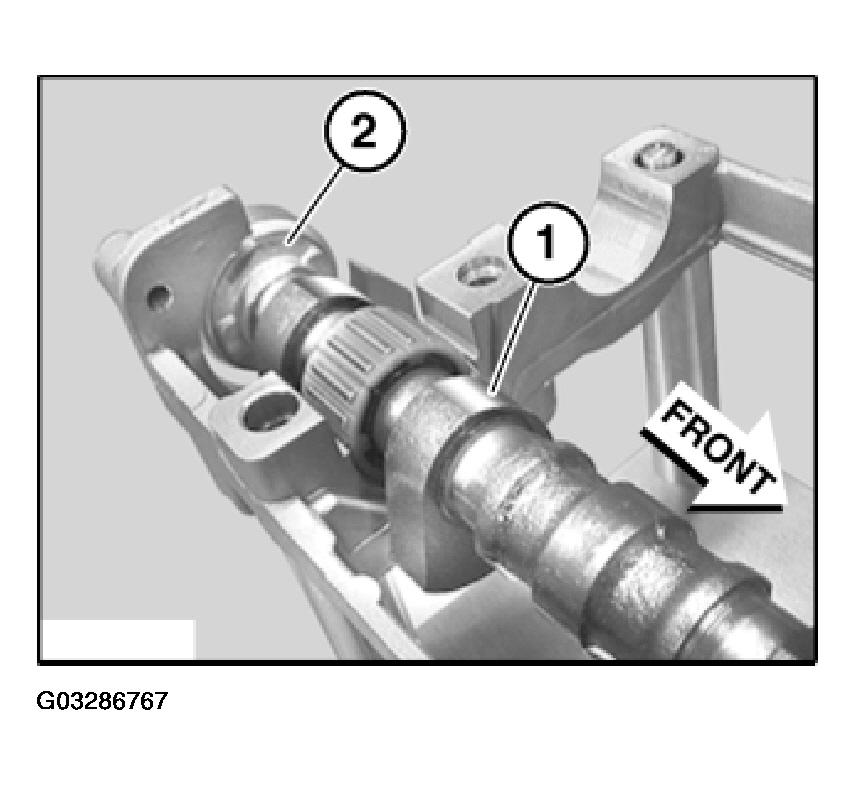

Cylinder bank 1 to 4:

IMPORTANT: The machined curvature (1) of the eccentric points inwards.

The magnet wheel (2) is at the rear.

Install eccentric shaft as shown in illustration.

Fig 7: Installing Eccentric Shaft

G03286767

Courtesy of BMW OF NORTH AMERICA, INC.

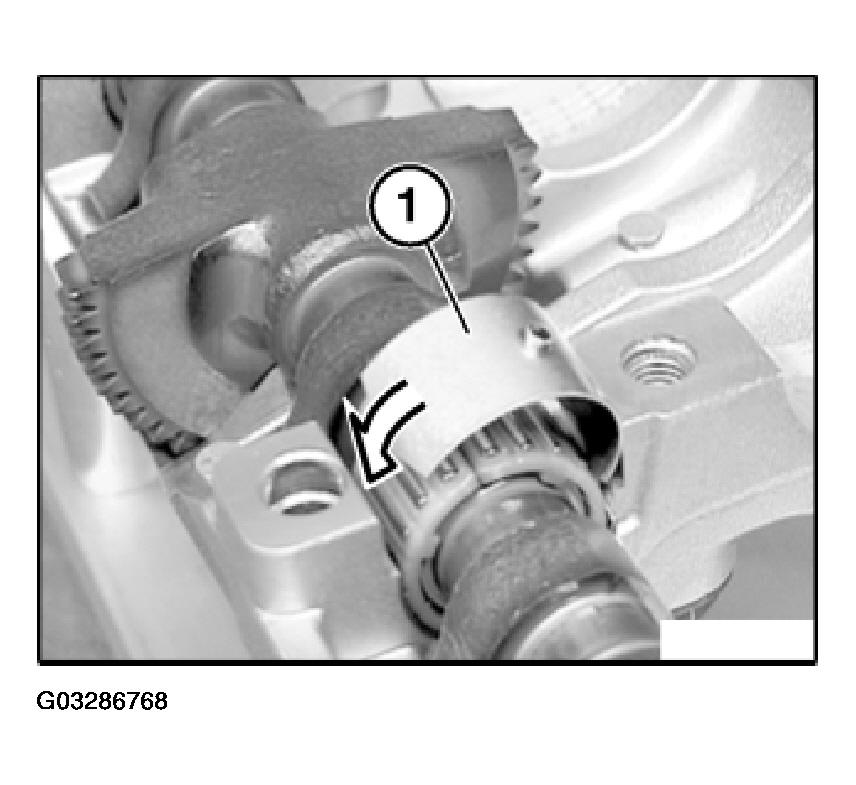

Lubricate bearing shells (1) with engine oil.

Install bearing shells (1).

Fig 8: Installing Bearing Shells

G03286768

Courtesy of BMW OF NORTH AMERICA, INC.

Bearing shells (1) must snap audibly into place.

Check correct position of bearing shells (1).

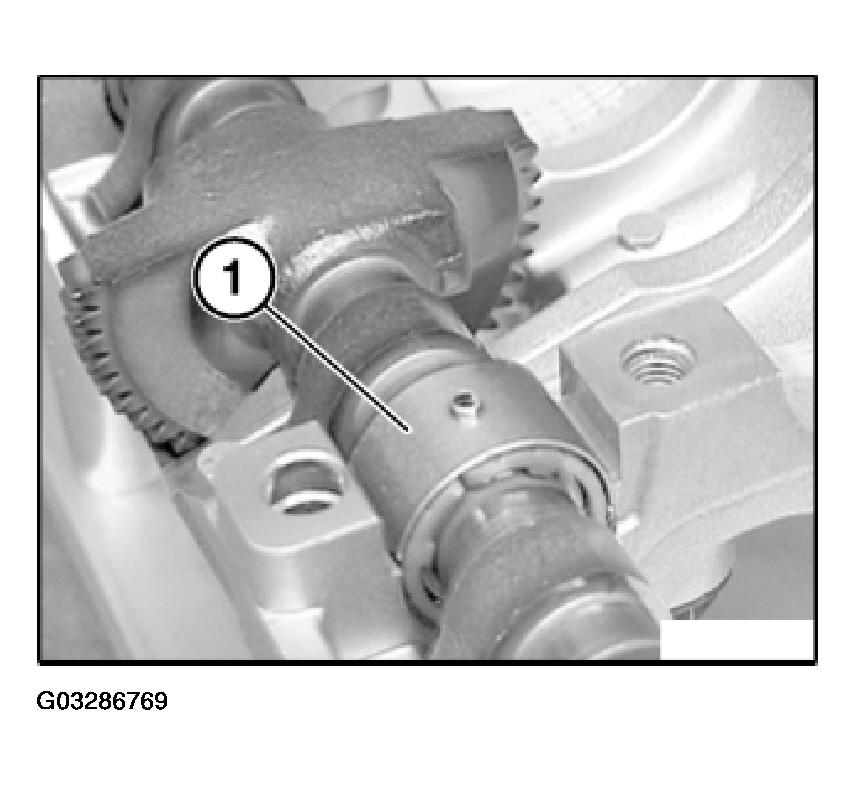

Fig 9: Checking Correct Position Of Bearing Shells

G03286769

Courtesy of BMW OF NORTH AMERICA, INC.

Install right inlet camshaft.

Assemble engine.
