11 36 047 Removing And Installing/Replacing Inlet And Exhaust Adjustment Units On Left Side (N62): Installation

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Installation of inlet and exhaust adjustment units is described separately from removal.

CAUTION: Risk of mixing up parts.

The inlet and exhaust adjustment units are different.

Mixing up the inlet and exhaust adjustment units will cause damage to the engine.

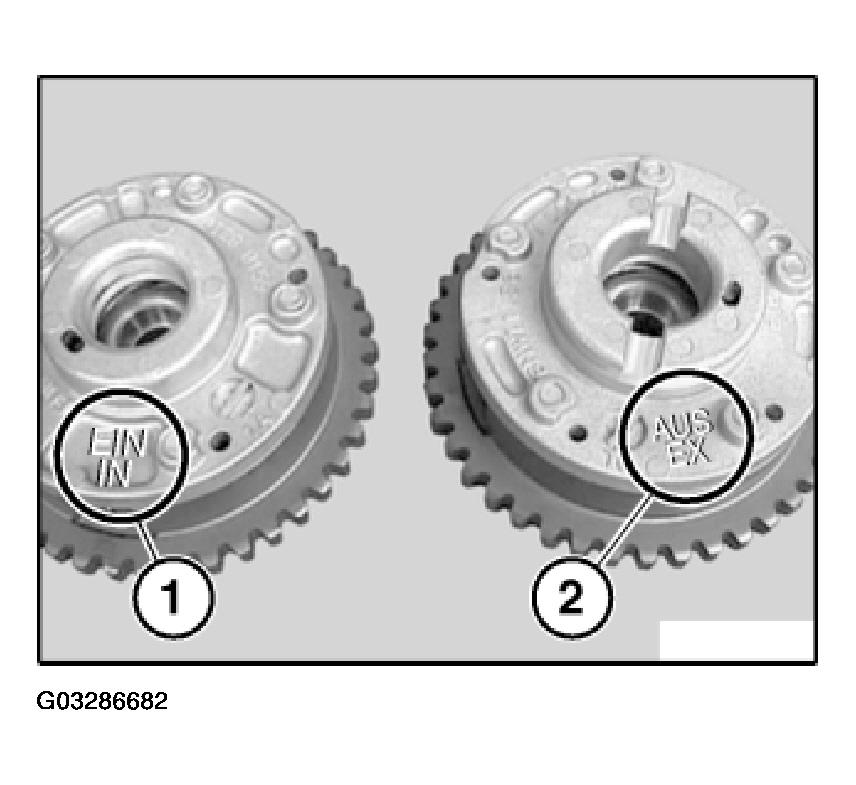

Inlet adjustment unit (1) is marked with EIN and IN
Exhaust adjustment unit (2) is marked with AUS and EX

Fig 1: Identifying Inlet Adjustment Unit And Exhaust Adjustment Unit
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Position of inlet adjustment unit (1) to timing chain can be freely selected.

Pull timing chain up.

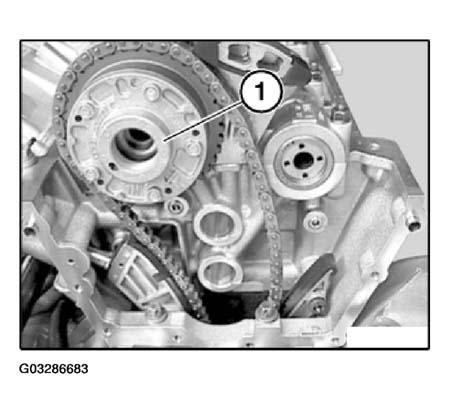

Feed inlet adjustment unit (1) into timing chain and fit onto inlet camshaft.

Fig 2: Identifying Inlet Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

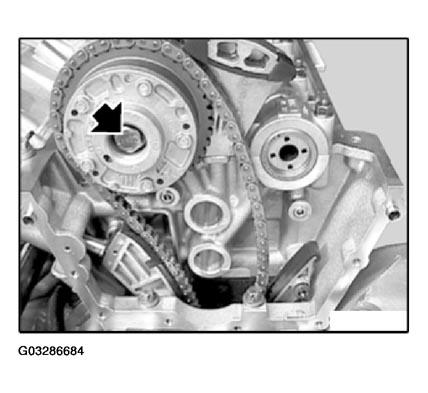

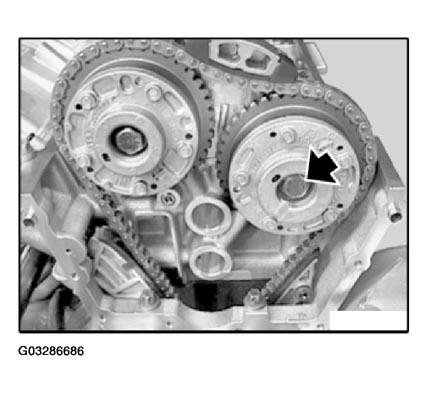

Replace screw.

Install screw on inlet adjustment unit.

Tighten screw without play and then slacken off again by half a turn.

Fig 3: Tightening Inlet Adjustment Unit Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Position of exhaust adjustment unit (2) to timing chain can be freely selected.

Pull timing chain up.

Feed exhaust adjustment unit (2) into timing chain.

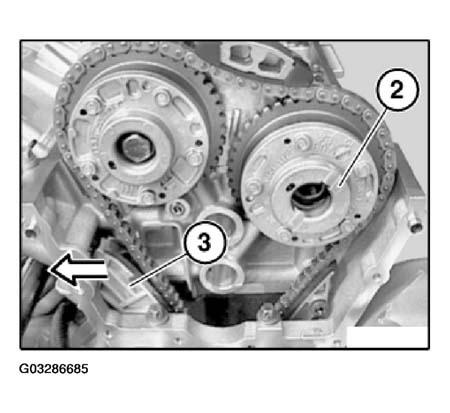

Press tensioner rail (3) back and fit exhaust adjustment unit (2) onto exhaust camshaft.

NOTE: If tensioner rail (3) cannot be pressed back far enough to enable fitting of exhaust adjustment unit (2):

Remove chain tensioner. Place chain tensioner on a level surface and compress slowly and carefully. Repeat this procedure twice.

Fig 4: Pressing Tensioner Rail Back And Fitting Exhaust Adjustment Unit Onto Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing ring. Install chain tensioner and tighten down.

Tightening torque, of chain tensioner, refer to 11 31 8AZ in ENGINE - TIGHTENING TORQUES .

Fit exhaust adjustment unit (2).

Replace screw.

Install screw on exhaust adjustment unit.

Tighten screw without play and then slacken off again by half a turn.

Fig 5: Installing Screw On Exhaust Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

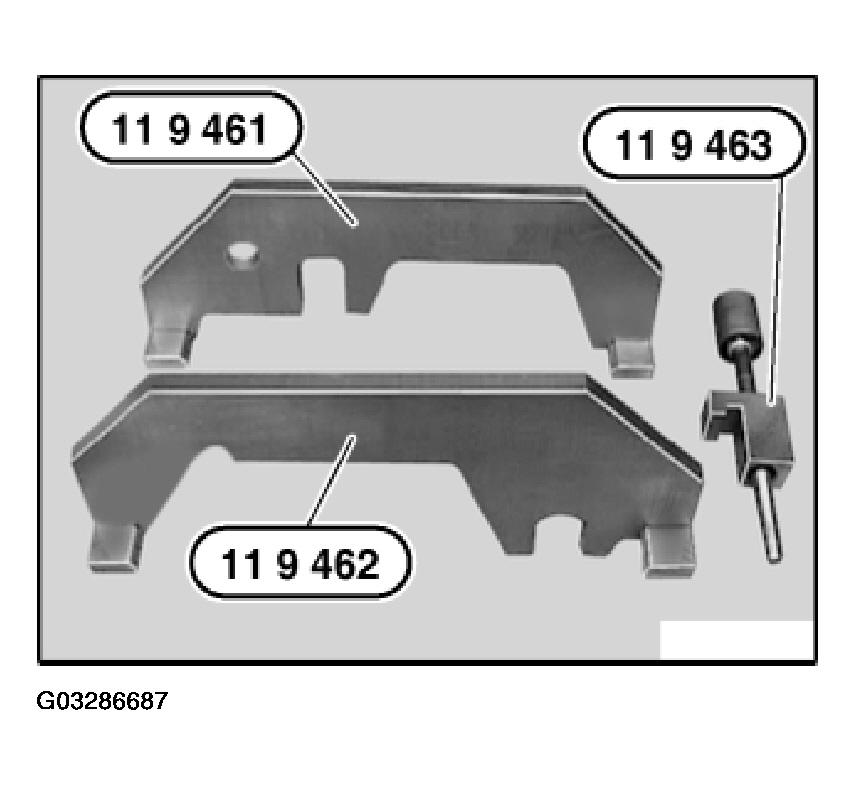

Get special tool kit 11 9 460 ready for securing camshafts.

NOTE: Special tool 11 9 461 for securing inlet camshaft. Special tool 11 9 462 for securing exhaust camshaft. Special tool 11 9 463 (holder with screw).

Fig 6: Identifying Special Tool Kit 11 9 460 For Securing Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

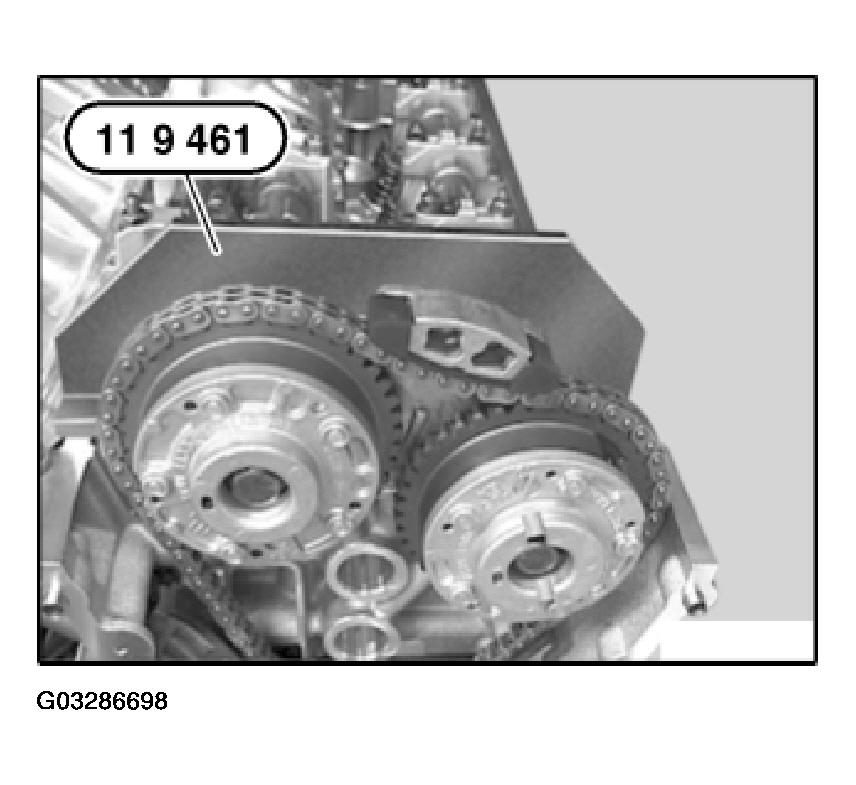

Place special tool 11 9 461 on inlet camshaft and align inlet camshaft so that special tool 11 9 461 rests without a gap on cylinder head.

Fig 7: Placing Special Tool 11 9 461 On Inlet Camshaft And Aligning Inlet Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

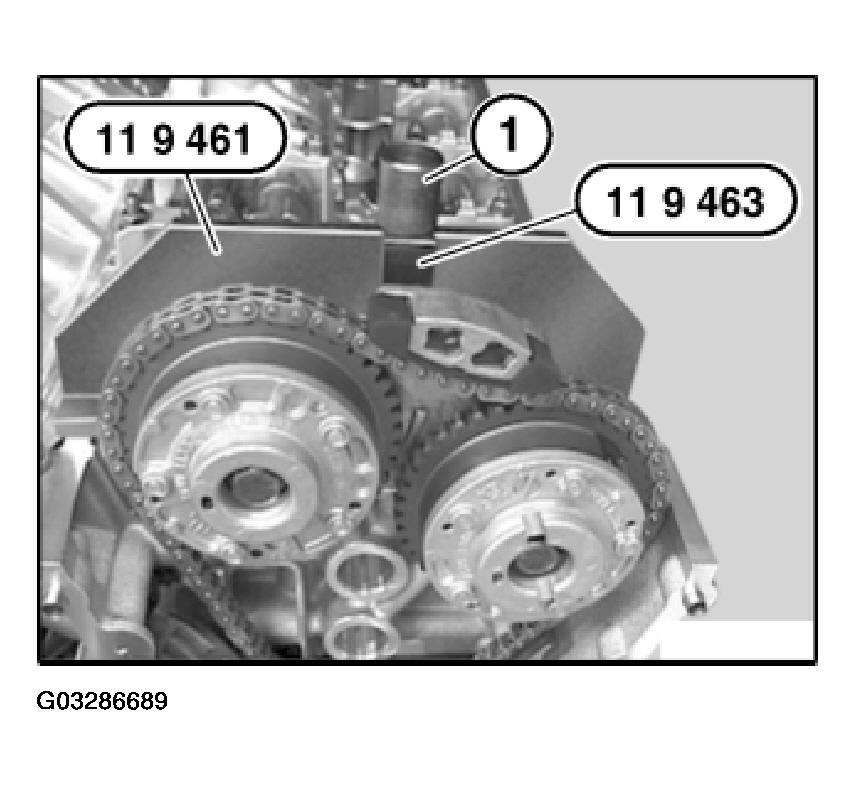

Fit special tool 11 9 463, secure screw (1) in thread for oil line and tighten down by hand.

Fig 8: Fitting Special Tool 11 9 463 And Securing Screw In Thread For Oil Line And Tightening Down By Hand

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Make sure screws of inlet and exhaust adjustment units have been slackened off by a half turn.

Crank engine at central bolt from 45° before TDC position in direction of rotation to firing TDC position.

Secure vibration damper with special tool 11 9 190 in firing TDC position of 1st cylinder.

Fig 9: Securing Vibration Damper With Special Tool 11 9 190

Courtesy of BMW OF NORTH AMERICA, INC.

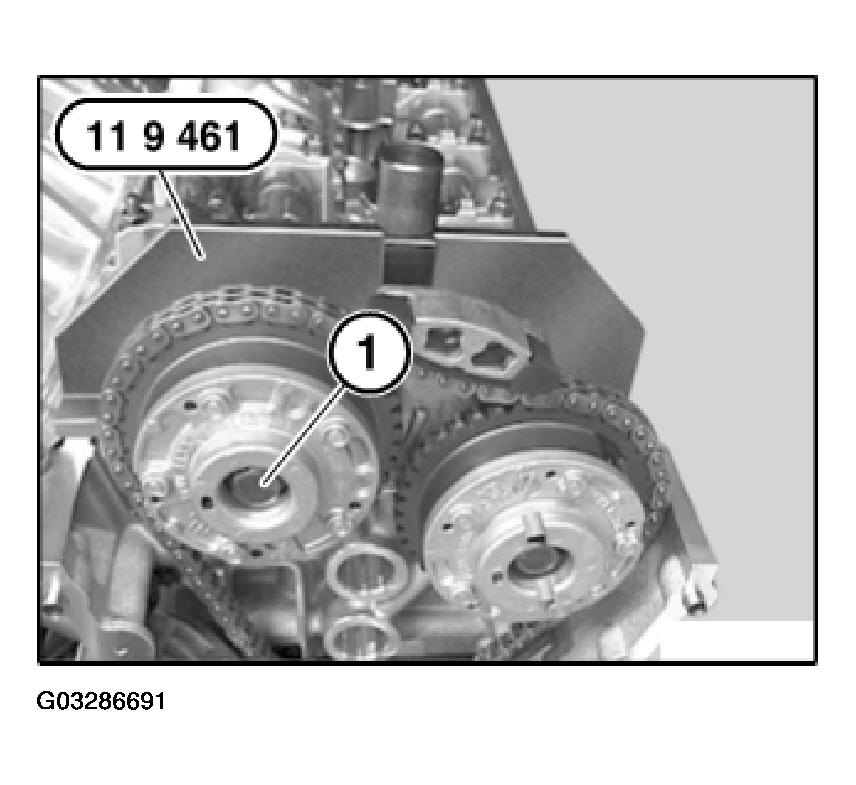

NOTE: When tightening down screw (1), grip camshaft at hexagon head.

Tighten down screw (1) of inlet adjustment unit.

Tightening torque, refer to, 11 36 16AZ in ENGINE - TIGHTENING TORQUES .

Fig 10: Tightening Down Screw Of Inlet Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1), remove special tools 11 9 463 and 11 9 461 from inlet camshaft.

Fig 11: Releasing Screw And Removing Special Tools 11 9 463/11 9 461 From Inlet Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

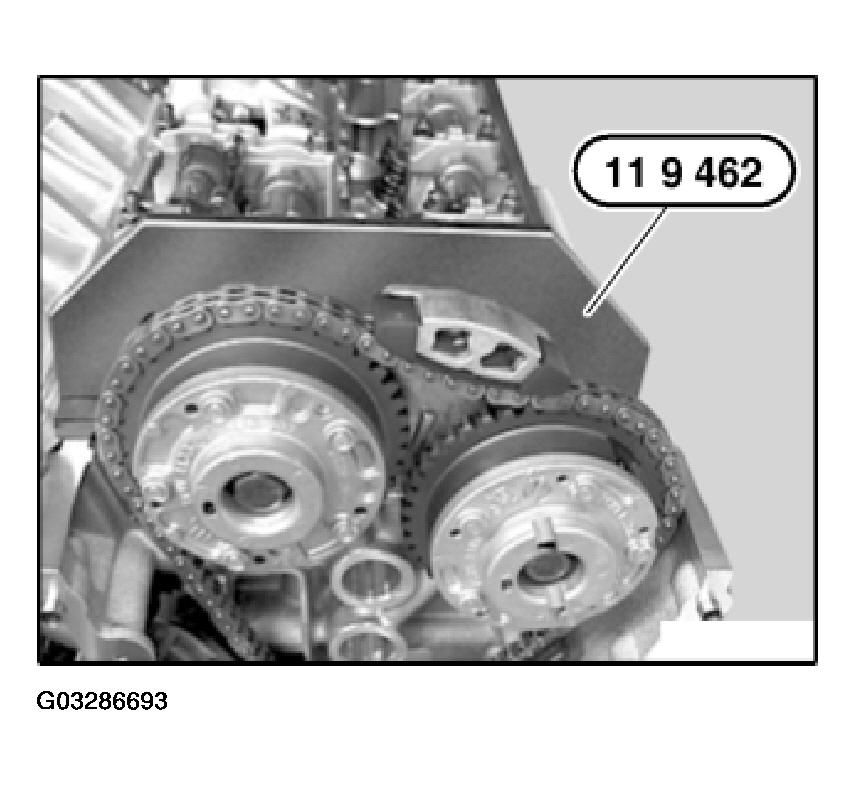

Place special tool 11 9 462 on exhaust camshaft and align exhaust camshaft so that special tool 11 9 462 rests without a gap on cylinder head.

Fig 12: Placing Special Tool 11 9 462 On Exhaust Camshaft And Aligning Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

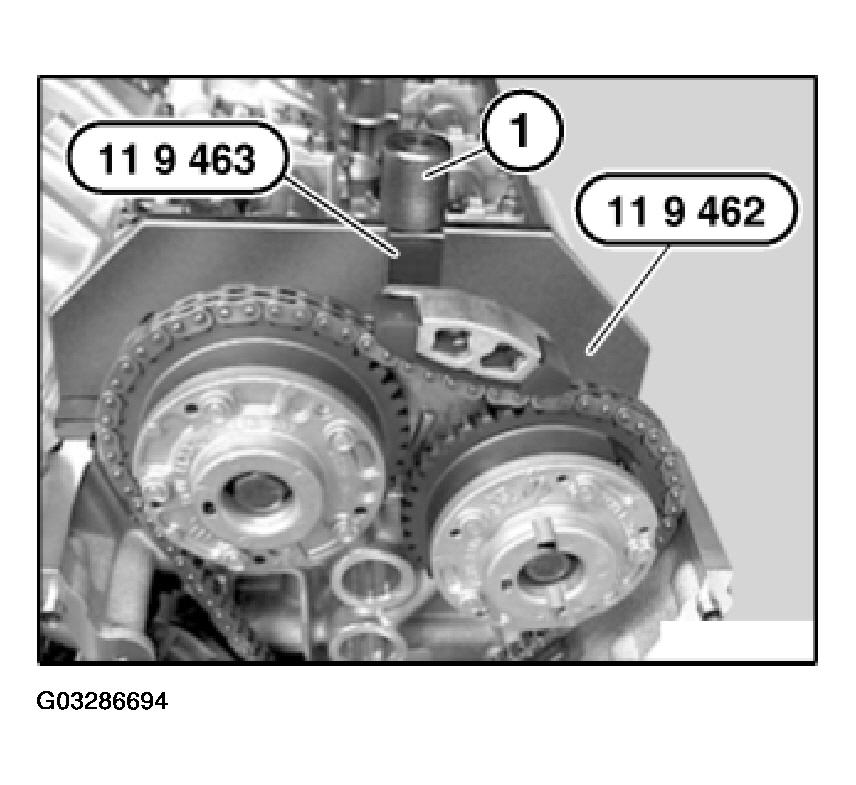

Fit special tool 11 9 463, secure screw (1) in thread for oil line and tighten down by hand.

Fig 13: Fitting Special Tool 11 9 463 And Securing Screw In Thread For Oil Line And Tightening Down By Hand

Courtesy of BMW OF NORTH AMERICA, INC.

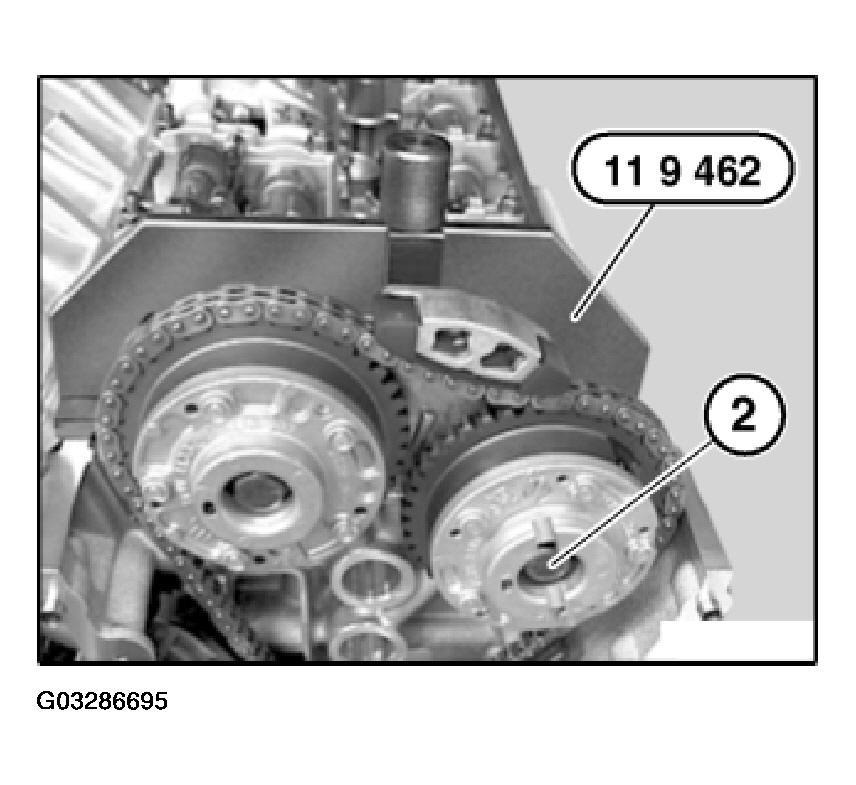

NOTE: When tightening down screw (2), grip camshaft at hexagon head.

Tighten down screw (2) of exhaust adjustment unit.

Tightening torque, refer to, 11 36 16AZ in ENGINE - TIGHTENING TORQUES .

Fig 14: Tightening Down Screw Of Exhaust Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1), remove special tools 11 9 463 and 11 9 462 from exhaust camshaft.

Fig 15: Releasing Screw And Removing Special Tools 11 9 463/11 9 462 From Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 9 190.

Crank engine at central bolt twice in direction of rotation until engine returns to firing TDC position of 1st cylinder.

Secure vibration damper with special tool 11 9 190 in firing TDC position of 1st cylinder.

Fig 16: Securing Vibration Damper With Special Tool 11 9 190

Courtesy of BMW OF NORTH AMERICA, INC.

Place special tool 11 9 461 on inlet camshaft and check timing.

NOTE: The timing is correctly adjusted when special tool 11 9 461 rests flat on the cylinder head or protrudes by up to 0.5 mm to the exhaust side.

Remove special tool 11 9 461 from inlet camshaft.

Fig 17: Placing Special Tool 11 9 461 On Inlet Camshaft And Checking Timing

Courtesy of BMW OF NORTH AMERICA, INC.

Place special tool 11 9 462 on exhaust camshaft and check timing.

NOTE: The timing is correctly adjusted when special tool 11 9 462 rests flat on the cylinder head or protrudes by up to 0.5 mm to the exhaust side.

Fig 18: Placing Special Tool 11 9 462 On Exhaust Camshaft And Checking Timing

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all special tools.

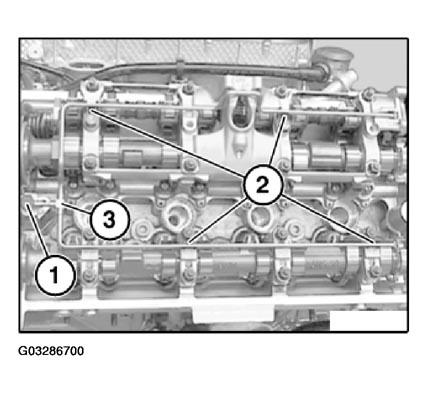

CAUTION: Screw (1) is a special screw and must not be replaced with a normal M8 screw.

Clip oil line (3) into retainers (2).

Insert screw (1) and tighten down.

Assemble engine.

Fig 19: Clipping Oil Line Into Retainers

Courtesy of BMW OF NORTH AMERICA, INC.
