Lightly coat pistons and piston rings with oil. Offset the contact points of the piston rings by approx. 120° to each other but do not position above the piston pin boss.

Slide special tool 11 8 141 over piston (1).

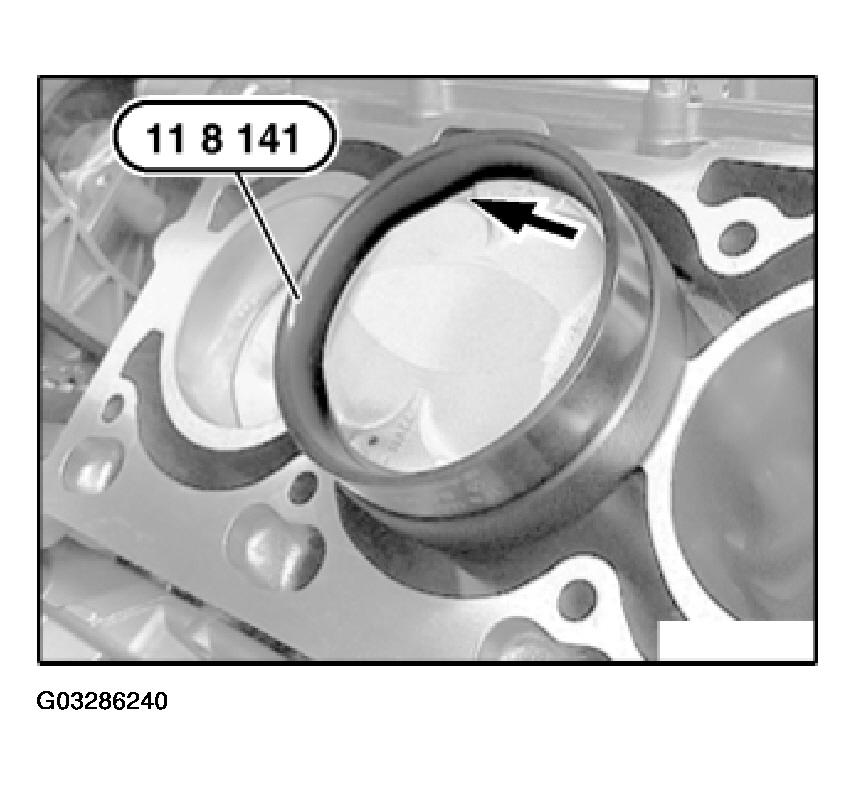

Fig 1: Sliding Special Tool 11 8 141 Over Piston (1)

G03286240

Courtesy of BMW OF NORTH AMERICA, INC.

Install piston so that arrow points to camshaft drive.

CAUTION: Danger of piston ring failure.

Only press pistons into place with finger force - do not knock in!

Attach crankpin to connecting rod.

Remove special tools 11 8 151 and 11 8 152.

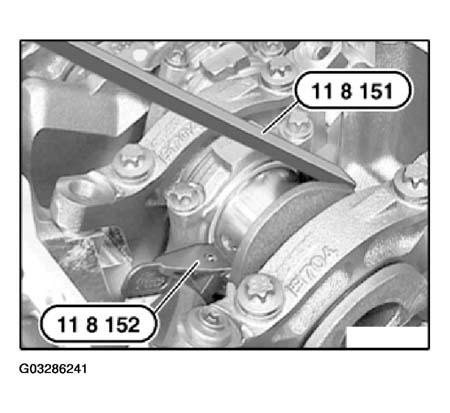

Fig 2: Removing Special Tools 11 8 151 And 11 8 152

G03286241

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, the pairing letters (1) are shown on the removed conrod.

CAUTION: Conrods and conrod bearing caps are denoted with the same pairing letters (1), do not mix them up.

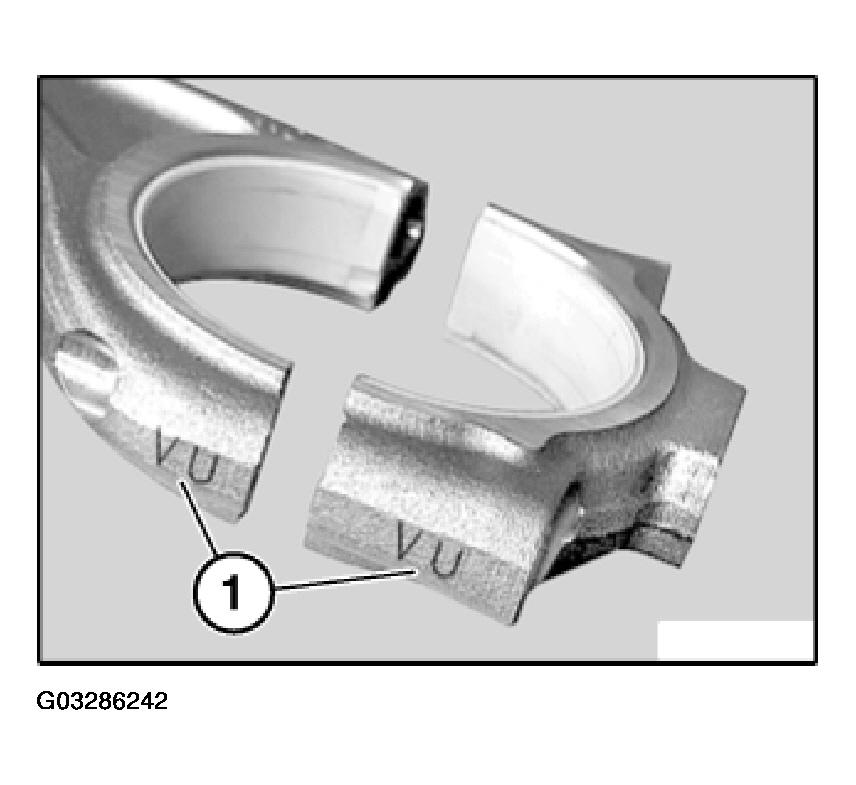

Fig 3: Identifying Pairing Letters On Conrod

G03286242

Courtesy of BMW OF NORTH AMERICA, INC.

Apply light coat of oil to connecting-rod bearing shells.

Fit bearing cap so that pairing letters match up.

Install new connecting-rod screws.

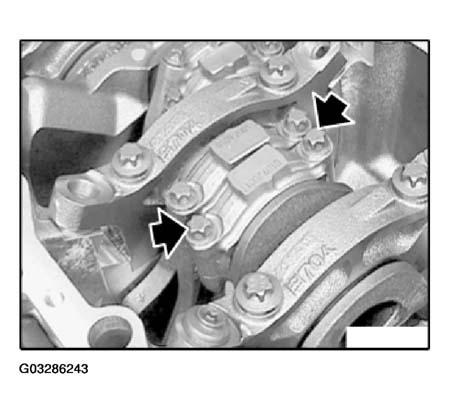

Fig 4: Installing Connecting-Rod Screws

G03286243

Courtesy of BMW OF NORTH AMERICA, INC.

Secure conrod with special tool 00 9 120.

Tightening torque, refer to 11 24 1AZ in ENGINE - TIGHTENING TORQUES .

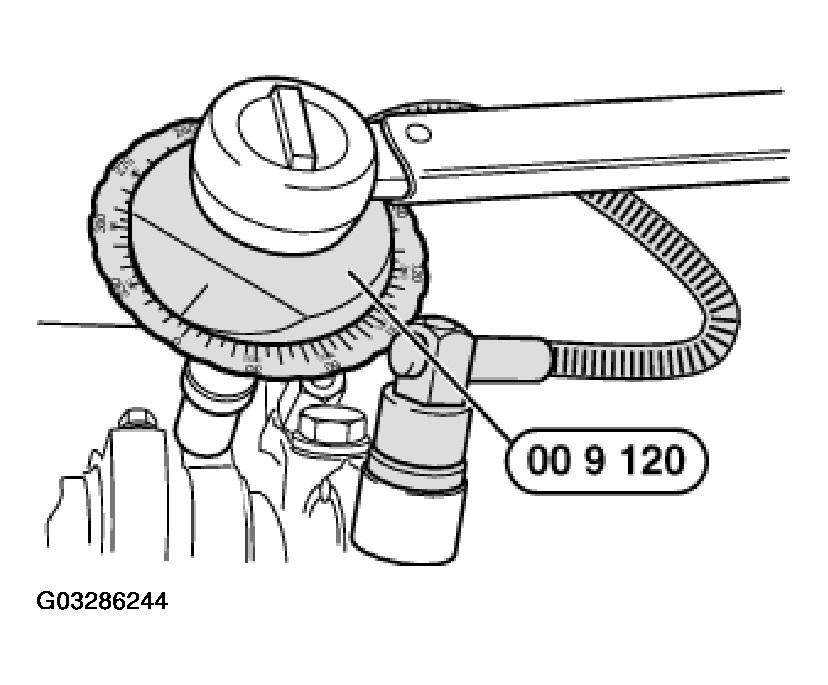

Fig 5: Securing Conrod With Special Tool 00 9 120
