11 13 020 Removing And Installing/Replacing Oil Sump Bottom Section (N62)

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove reinforcement plate.

Remove oil drain plug and drain engine oil. Refer to 00 00 610 ENGINE OIL SERVICE (N62/N62TU) .

Unlock and detach plug connection (1) from oil level switch.

Release screws and remove oil sump bottom section (2).

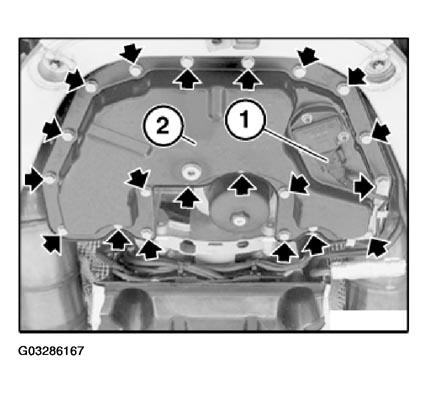

Fig 1: Removing Oil Sump Bottom Section

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, refer to 11 13 2AZ in ENGINE - TIGHTENING TORQUES .

Installation:

Clean sealing surfaces.
Replace seal.
Replace screws.

When replacing oil sump bottom section:

Convert oil level sensor.

Replace sealing ring.
