11 24 571 Replacing All Conrod Bearings (N62)

Special Tools Required:

• 00 2 590
• 00 9 120
• 11 2 110

(Piston removed)

The letter (1) denotes the crankshaft construction stage.

The numbers (2) denote the bearing shell classification for the relevant bearing position from 1 to 5 (main bearing cap).

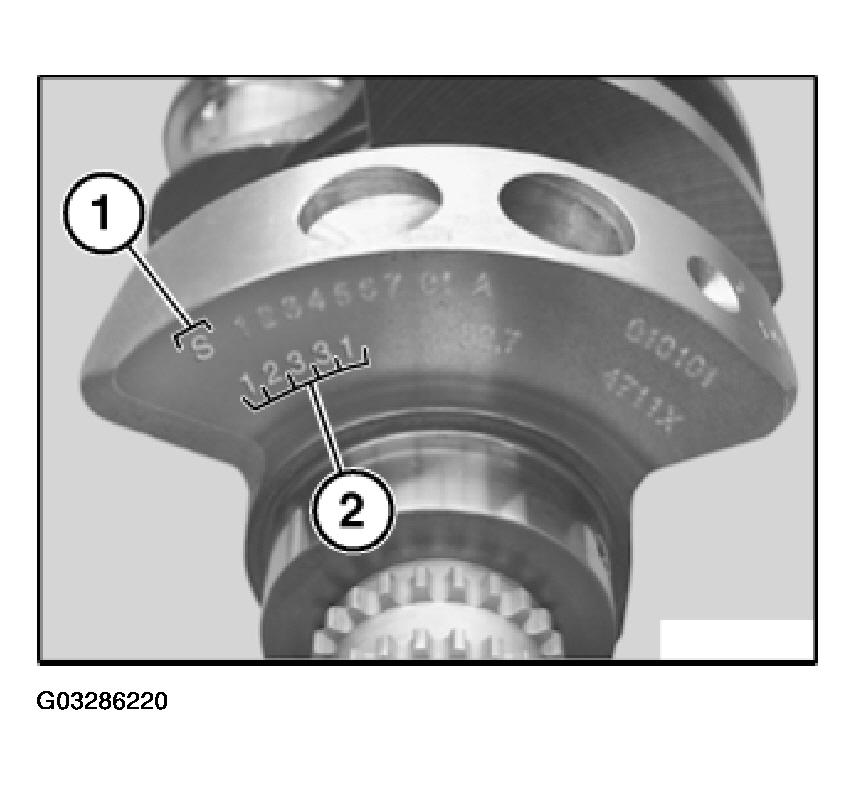

Fig 1: Identifying Letter And Numbers Denoting Crankshaft Construction Stage And Bearing Shell Classification

Courtesy of BMW OF NORTH AMERICA, INC.

Install new conrod bearing shells.

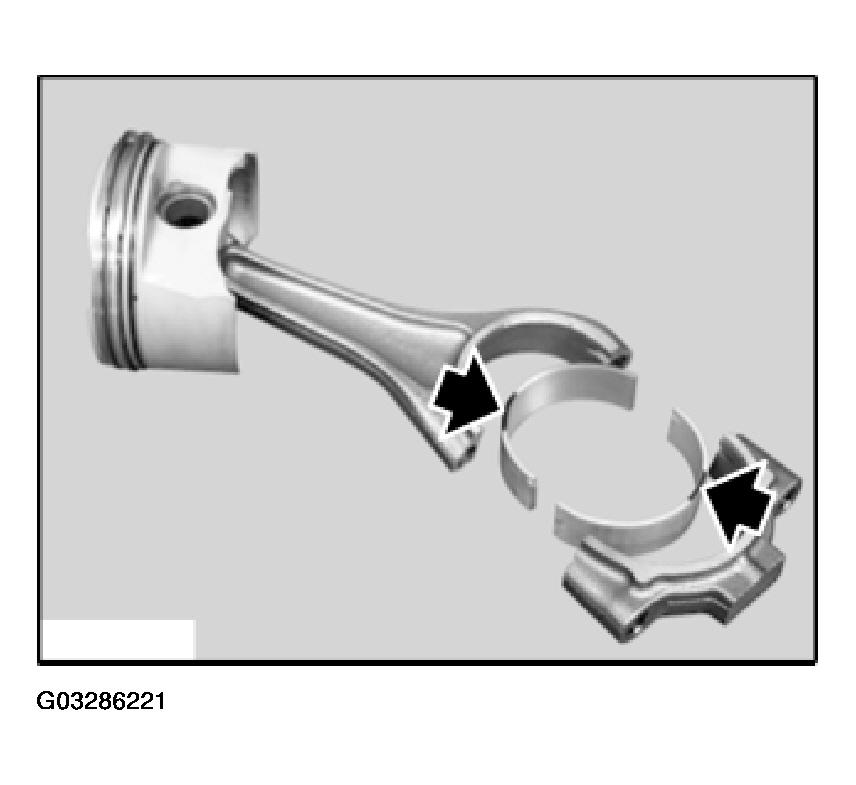

Fig 2: Installing Conrod Bearing Shells

Courtesy of BMW OF NORTH AMERICA, INC.

Insert one red and one blue bearing shell for each conrod.

Install piston. Refer to 11 25 530 REMOVING AND INSTALLING/REPLACING ALL PISTONS (N62) .

Check Connecting-Rod Bearing Clearance:

Piston in BDC position.

Fit special tool 00 2 590 (Plastigage Type PG 1) to the oil-free crankshaft.

Position bearing caps so that pair numbers match up.

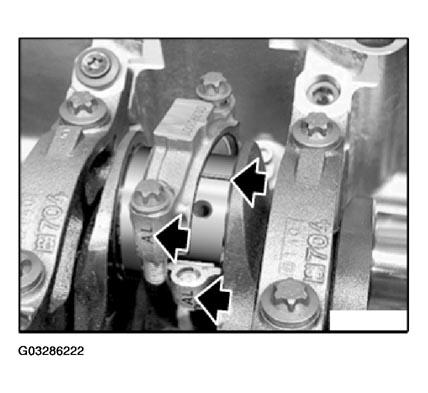

Fig 3: Aligning Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Use the old connecting-rod bolts to check connecting-rod clearance.

Tighten down conrod bolts with special tool 00 9 120 or special tool 11 2 110.

Tightening torque, refer to 11 24 1AZ in ENGINE - TIGHTENING TORQUES .

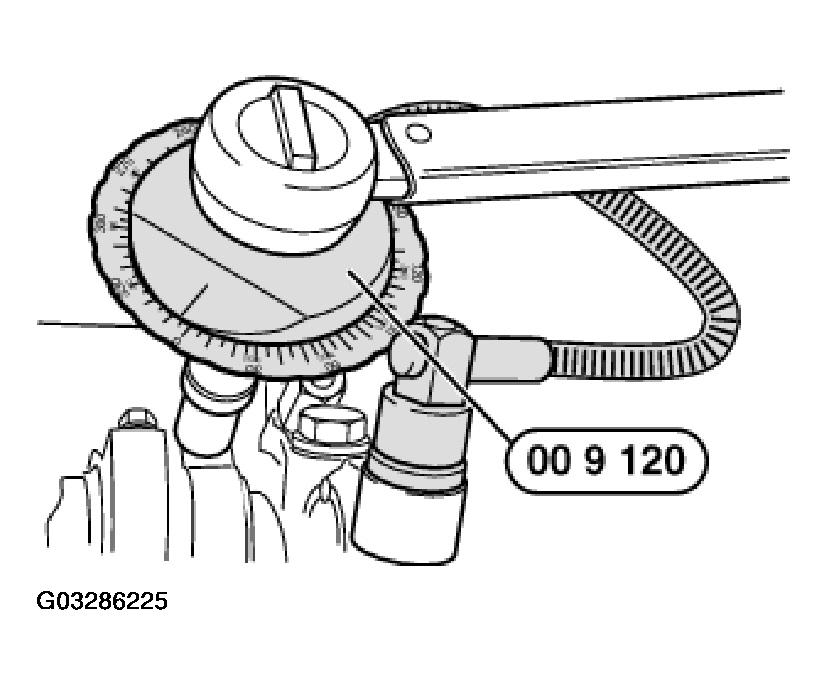

Fig 4: Identifying Torque Angle Measuring Dial

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bearing cap and read off bearing play at width of flattened plastic thread with assistance of measurement scale.

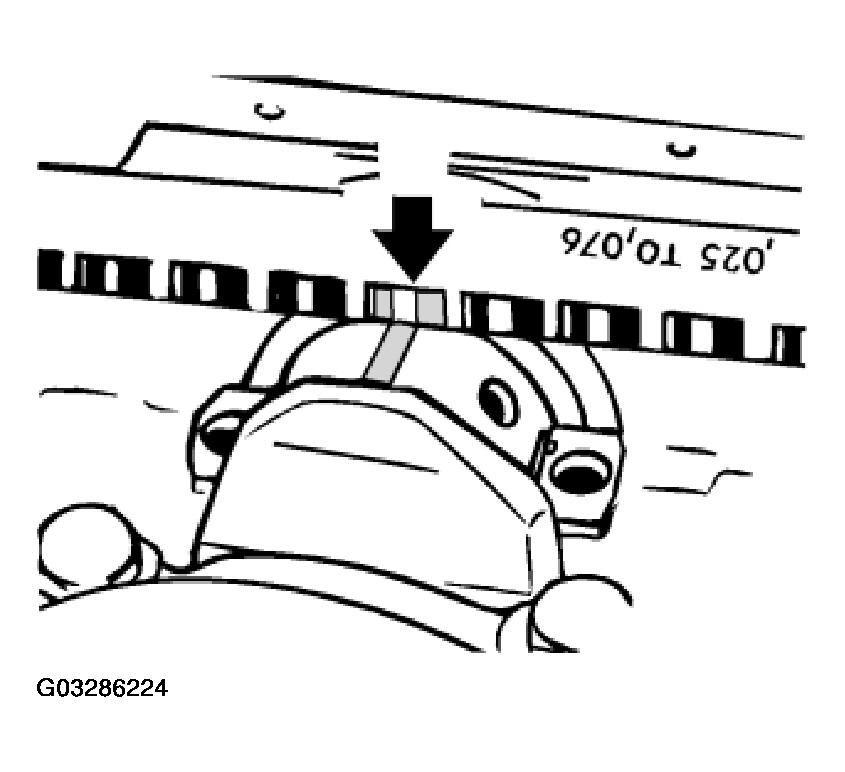

Fig 5: Measuring Bearing Play Using Measurement Scale

Courtesy of BMW OF NORTH AMERICA, INC.

Conrod bearing clearance. Refer to ENGINE - TECHNICAL DATA - 645CI .

• Remove plastic thread.
• Lubricate crankshaft and bearing shells.
• Install new connecting-rod screws.

Tighten down conrod bolts with special tool 00 9 120 or special tool 11 2 110.

Tightening torque, refer to 11 24 1AZ in ENGINE - TIGHTENING TORQUES .

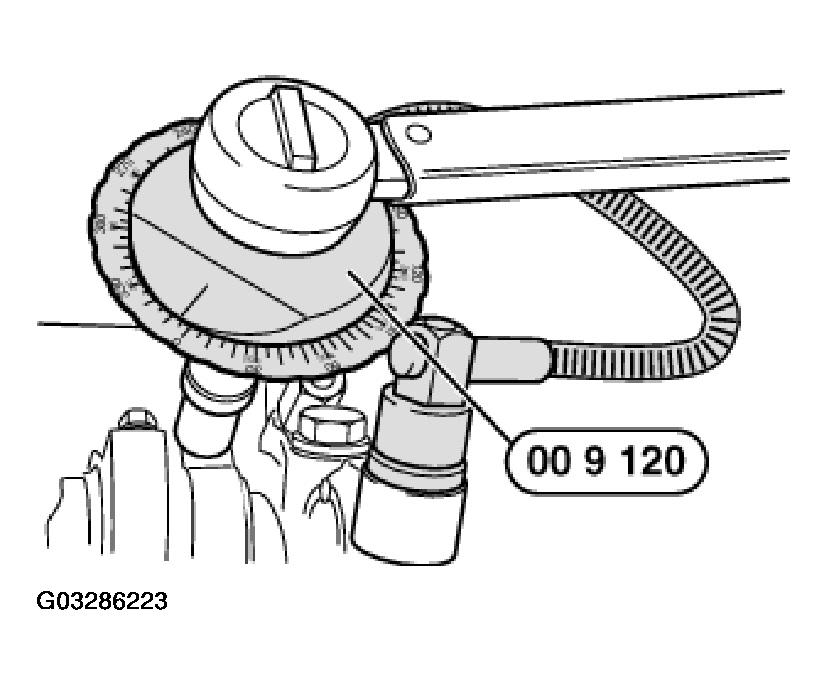

Fig 6: View Of Torque Angle Measuring Dial

Courtesy of BMW OF NORTH AMERICA, INC.
