Becker & Sohne Twin-Strut Underfloor Platform

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 BMW M6, 2007 BMW 650i, 2006 BMW M6, 2006 BMW 650i, and 2005 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

The BMW multi-trailer can only be raised if it is supported at right angles to the direction of travel. For raising, use the high additional supports (1) of Becker & Sohne.

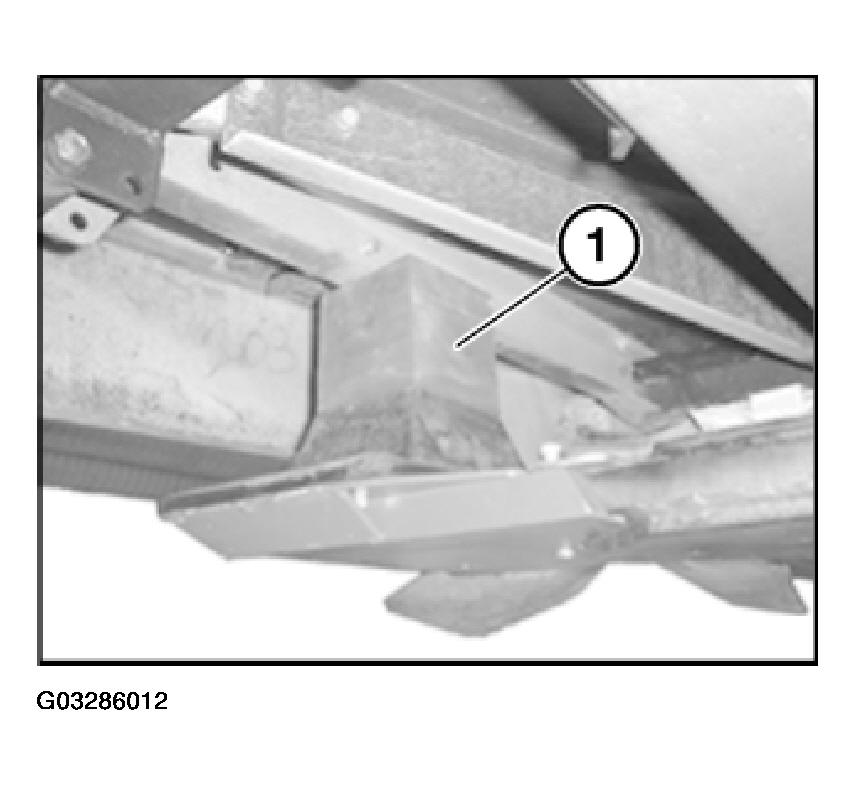

Fig 1: Identifying Becker & Sohne Twin-Strut Underfloor Platform
G03286012Courtesy of BMW OF NORTH AMERICA, INC.
CAUTION: Also lash the BMW multi-trailer to the flat girder bridges of the lifting platform. Flag the protruding tow hitch and the drawbar member of the BMW multi-trailer conspicuously so as to prevent injury, e.g. with a red cloth.
