67 16 011 Removing and installing/replacing left headlight vertical aim adjuster (xenon headlight)

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Xenon headlights: Danger to life due to high voltage! Therefore disconnect xenon headlights from the power supply.
Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.

Necessary preliminary tasks:

Remove LEFT HEADLIGHT .

Unlock catches (1) and remove cap (2) in direction of arrow.

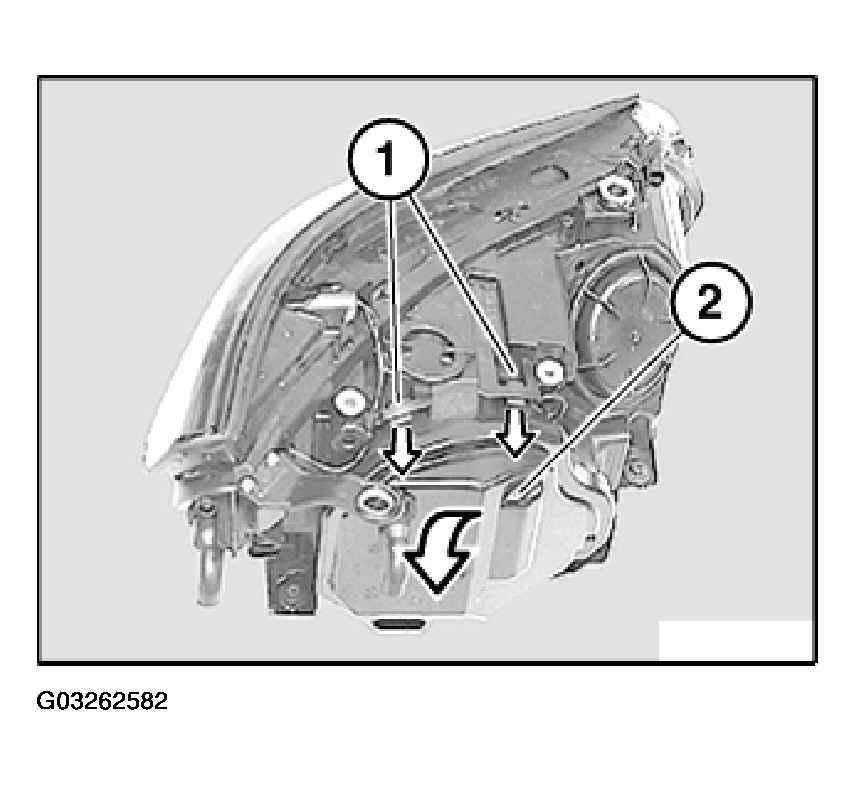

Fig 1: Removing Catches And Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Loosen screws (2).

Feed headlight vertical aim adjuster (3) out of mounting (4) and remove.

Installation:

Headlight vertical aim adjuster (3) must be correctly seated in mounting (4).

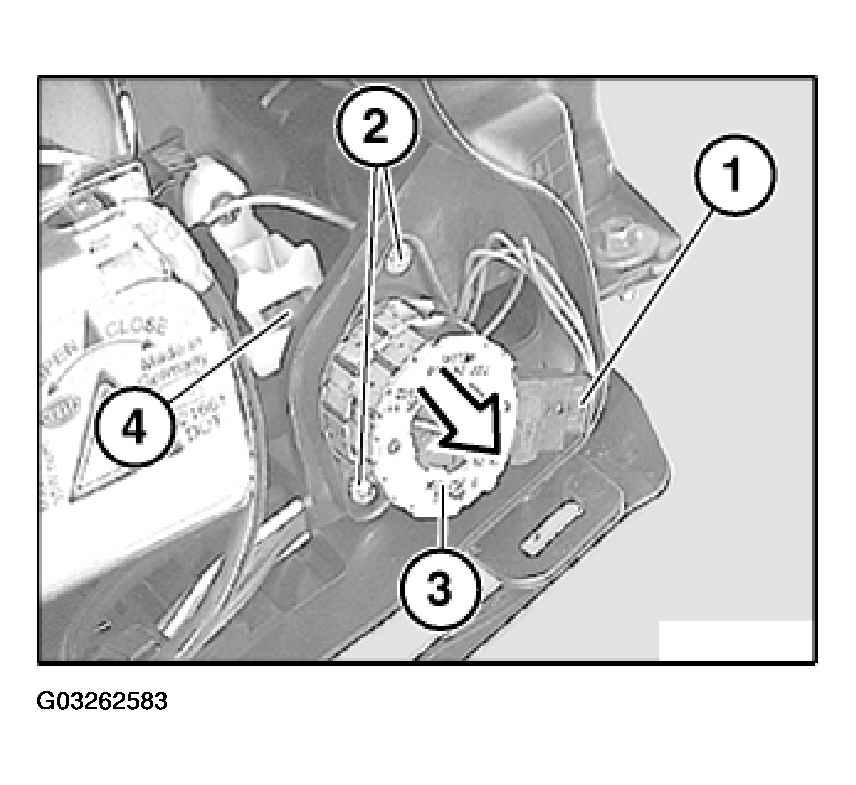

Fig 2: Feeding Headlight Vertical Aim Adjuster Out Of Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

ADJUST headlights.
