67 13 001 Replacing drive unit for electrically operated left or right door mirror

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove MIRROR GLASS FOR REARVIEW MIRROR .

Release screws (1).

Remove drive unit for electrically operated door mirror (2) slightly in direction of arrow.

Unfasten plug connection (3) and disconnect.

Remove drive unit for electrically operated door mirror (2).

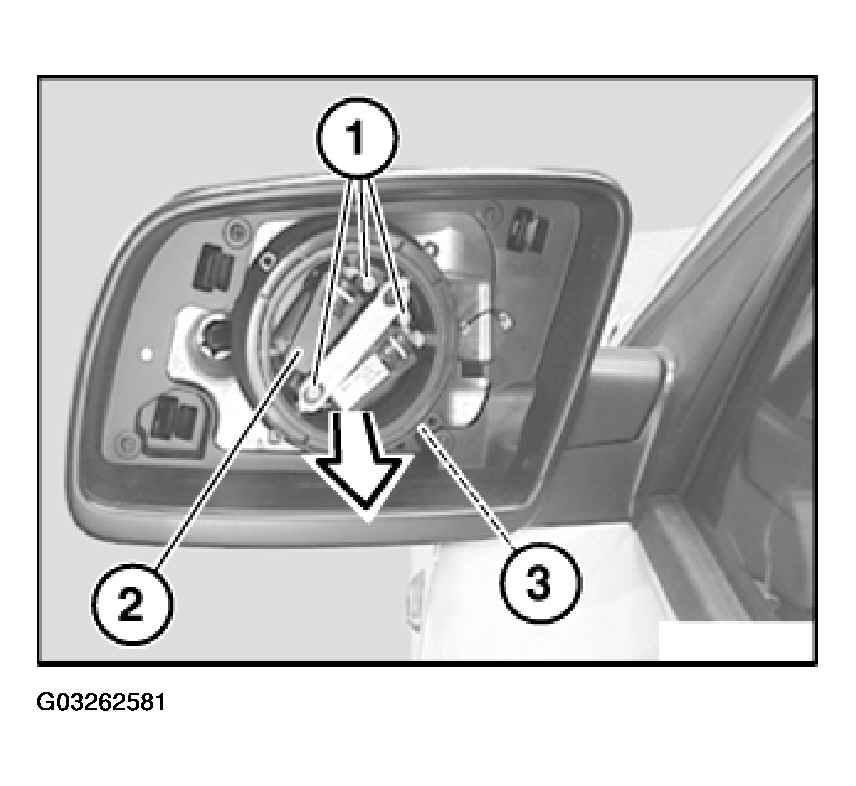

Fig 1: Removing Drive Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Build date from 03/2007:

Release screw (1) and remove drive (2).

Fig 2: Identifying Drive And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
