67 64 010 Removing and installing/replacing drive unit for electric steering column adjustment

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Move steering wheel into maximum "lower" and "extended" position
Remove DRIVER'S SIDE STORAGE COMPARTMENT .

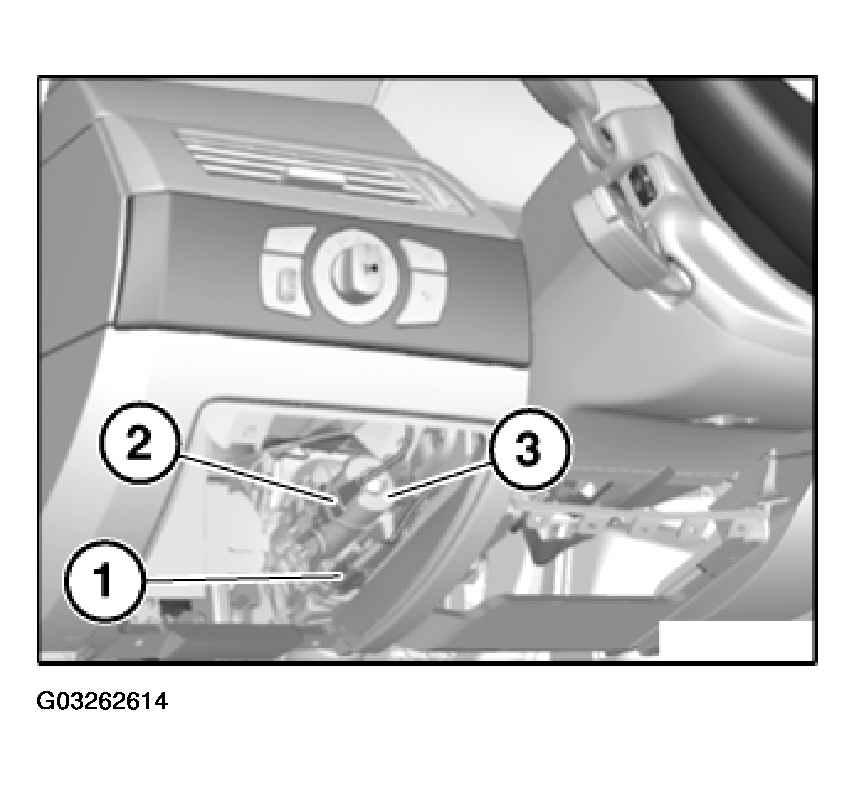

Unlock plug connections (1) and (2) of drive unit for electric steering column adjustment (3) and disconnect.

Fig 1: Disconnecting Plug Connections Of Drive Unit For Electric Steering Column Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, illustrations show steering column removed.

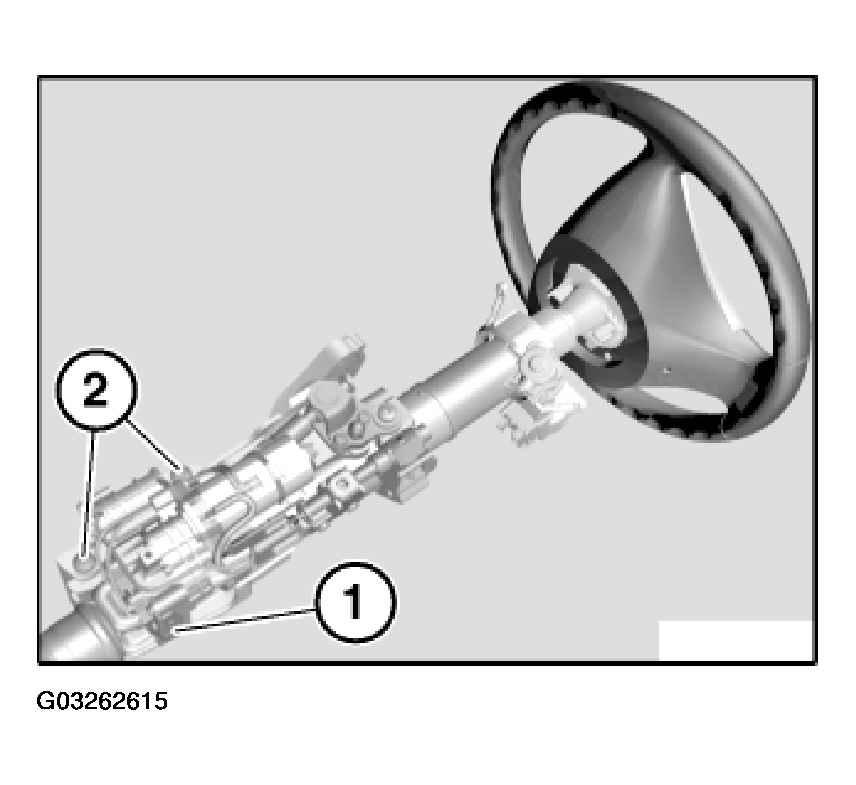

Remove screws (1) and (2).

Installation:

Replace screws (1) and (2).

Tightening torque: 6 Nm

Fig 2: Replacing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

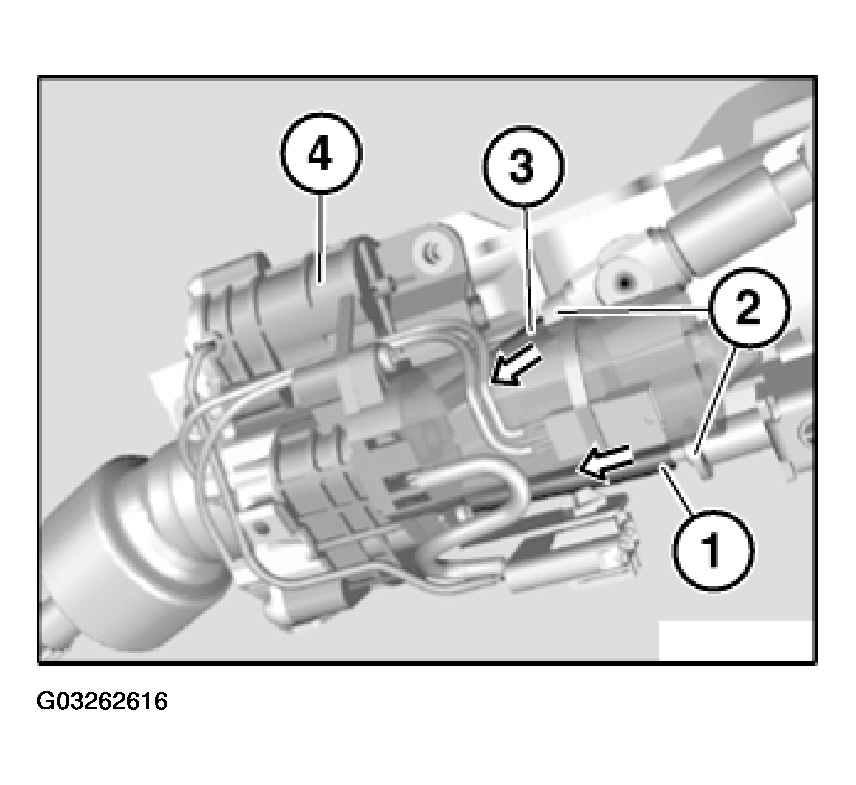

IMPORTANT: Pay attention to drive shafts (1) and (3) when removing and installing drive unit for electric steering column adjustment (4). Do not bend or twist.

Drive shafts (1) and (3) must be exactly inserted in associated mountings (2).

Detach drive shafts (1) and (3) from associated mountings (2) and remove drive unit for electric steering column adjustment (4).

Fig 3: Detaching Drive Shafts From Associated Mountings

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

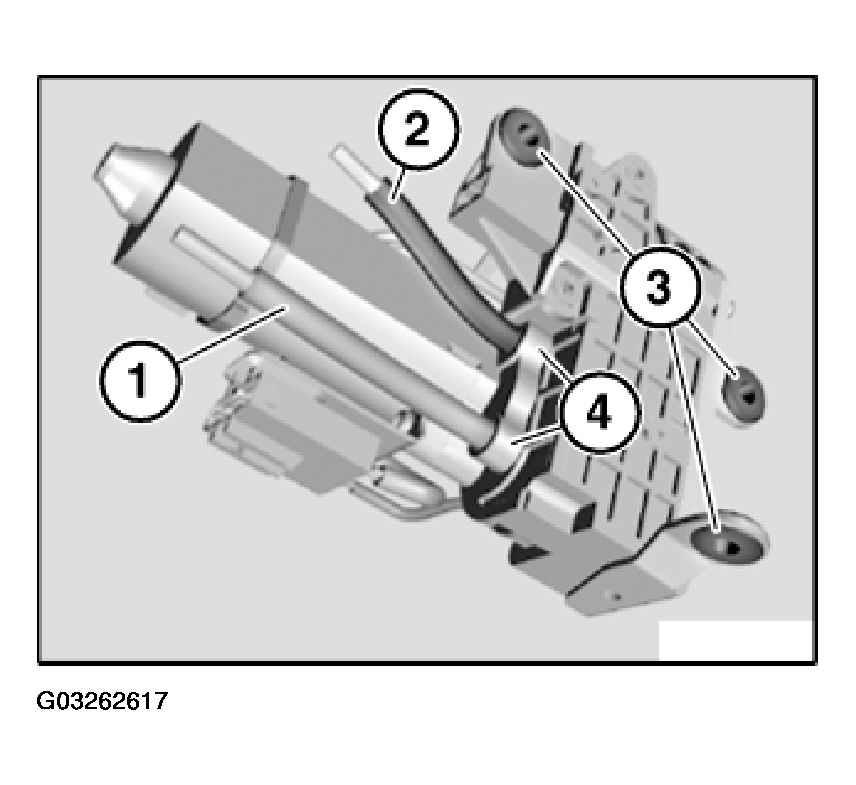

Longer drive shaft (1) is located in installation position under shorter drive shaft (2).

Drive shafts (1) and (2) must be exactly inserted in associated mountings (4).

If necessary, replace plastic mount (3).

Fig 4: Ensuring Drive Shafts Are Inserted In Mountings

Courtesy of BMW OF NORTH AMERICA, INC.
