67 62 000 Removing and installing/replacing flat motor for front left or right power window

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Detach SOUNDPROOFING ON FRONT DOOR in working area.

Unfasten plug connection (1) and disconnect.

Release screw (2) of locking bar (3).

Remove locking bar (3) in direction of arrow from flat motor for power window unit (5).

Release screws (4).

Carefully press flat motor for power window unit (5) towards rear out of mounting.

If necessary, pull power window unit forwards slightly and feed out flat motor for power window unit (5) and remove.

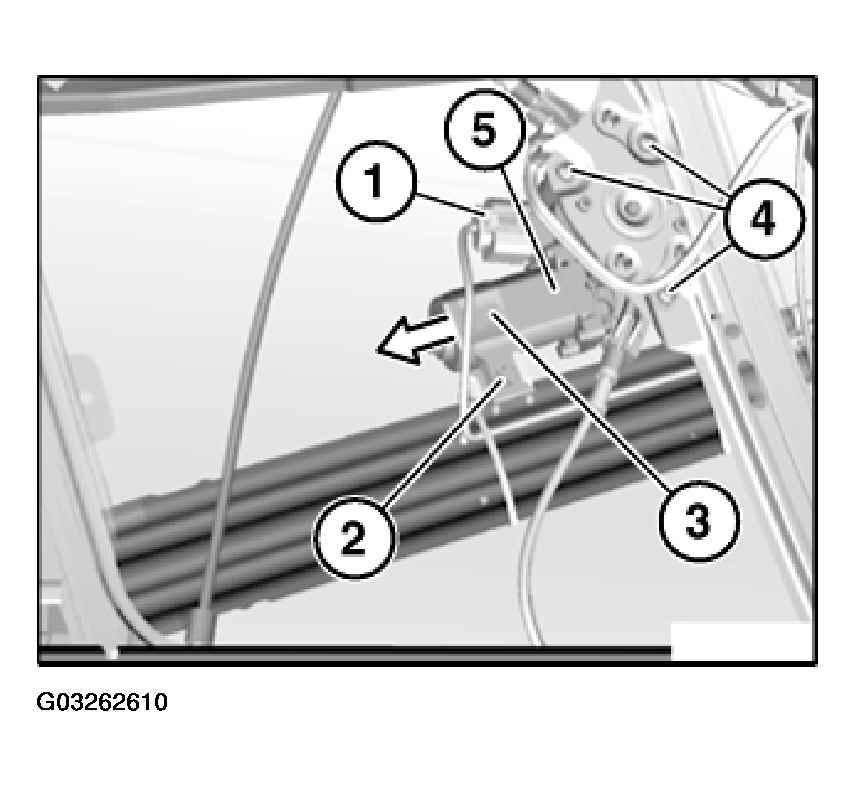

Fig 1: Removing Flat Motor For Power Window Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure guides (1) are correctly seated when fitting retaining clip (2).

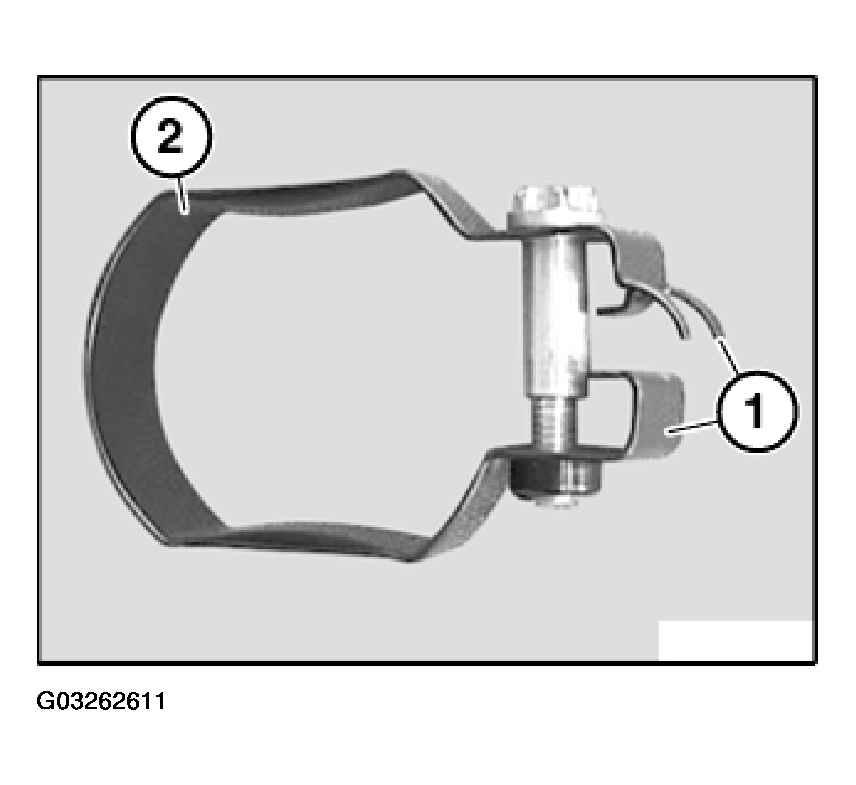

Fig 2: Identifying Guides And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

A normalization must be carried out in order to activate antitrapping protection.

Operating sequence for normalization:

Open corresponding window completely.
Press corresponding power window switch into "Close onetouch operation" (second switch stage).
Once the upper end position has been reached, hold power window switch down for approx. 500 secs. more.

NOTE: Carry out function check (one-touch function, anti-trapping protection and, if necessary, comfort function).
