67 31 530 Removing and installing/replacing drive unit for backrest angle adjustment

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT SEAT .
Remove REAR PANEL ON FRONT SEAT BACKREST .
Remove COVERS ON FRONT SEAT .

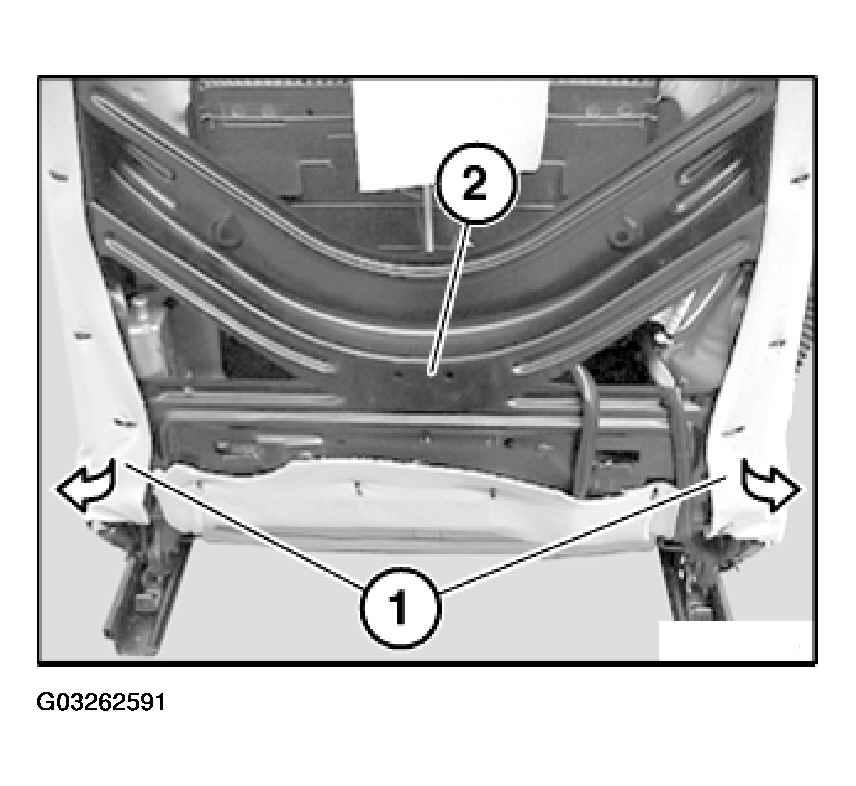

Unhook backrest cover (1) on left and right on backrest frame (2).

Fig 1: Unhook Backrest Cover On Left And Right On Backrest Frame

G03262591

Courtesy of BMW OF NORTH AMERICA, INC.

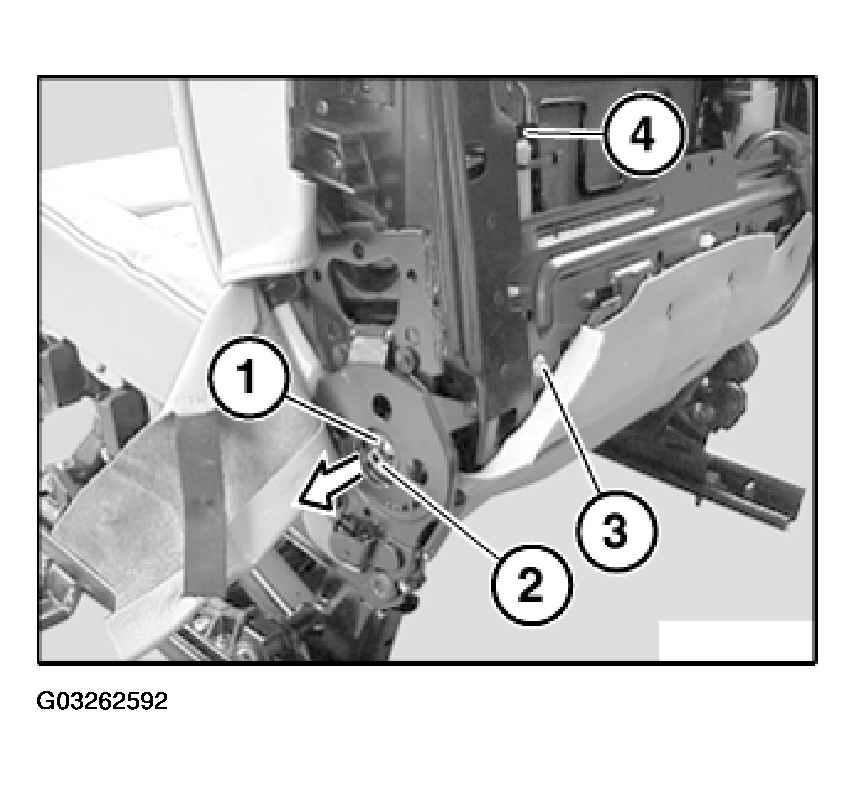

Remove metal retaining ring (1) in direction of arrow from drive rod (2).

Installation:

Always replace metal retaining ring (1).

Make sure metal retaining ring (1) is correctly seated.

Unscrew bolt (3).

Disconnect plug connection (4).

Fig 2: Disconnecting Plug Connection

G03262592

Courtesy of BMW OF NORTH AMERICA, INC.

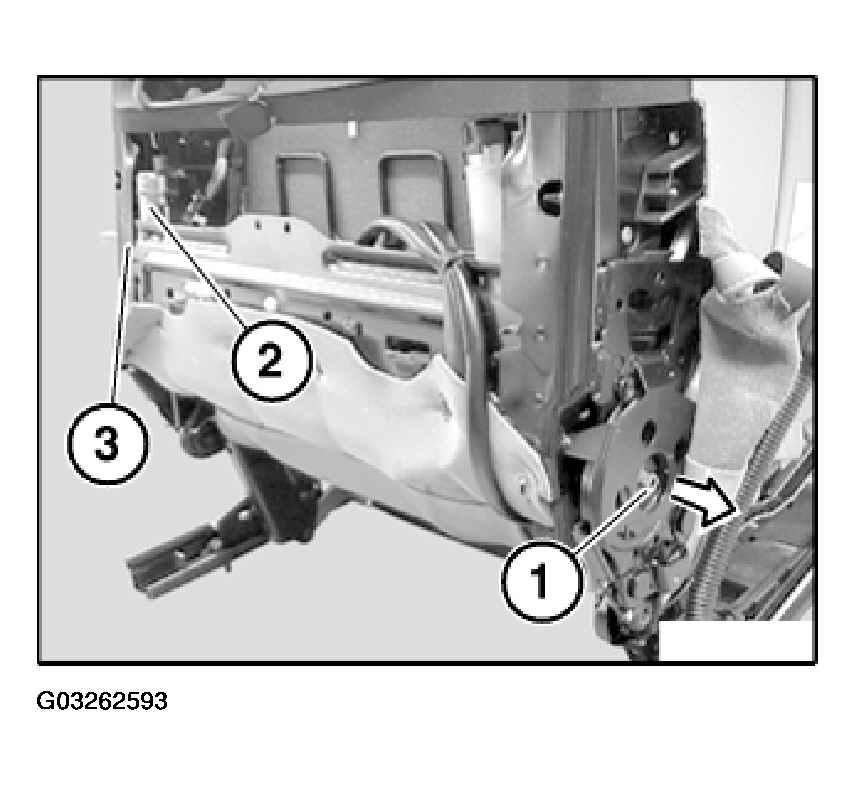

Pull out drive rod (1) until drive unit for backrest angle adjustment (2) is free.

Installation:

Make sure drive rod (1) is correctly seated in drive unit for backrest angle adjustment (2).

Feed drive unit for backrest angle adjustment (2) out of backrest frame (3) and remove.

Fig 3: Feeding Drive Unit For Backrest Angle Adjustment

G03262593

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

INITIALIZE drive unit for backrest angle adjustment.
