67 11 555 Removing and installing/replacing servodrive for tank filler flap

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT TRIM ON SIDE PANEL ON RIGHT .
Disconnect BATTERY NEGATIVE LEAD .

Unfasten plug connection (1) and disconnect.

Slacken screws (2) and feed servodrive for tank filler flap (3) towards rear out of retaining plate.

Remove servodrive for tank filler flap (3) in direction of arrow.

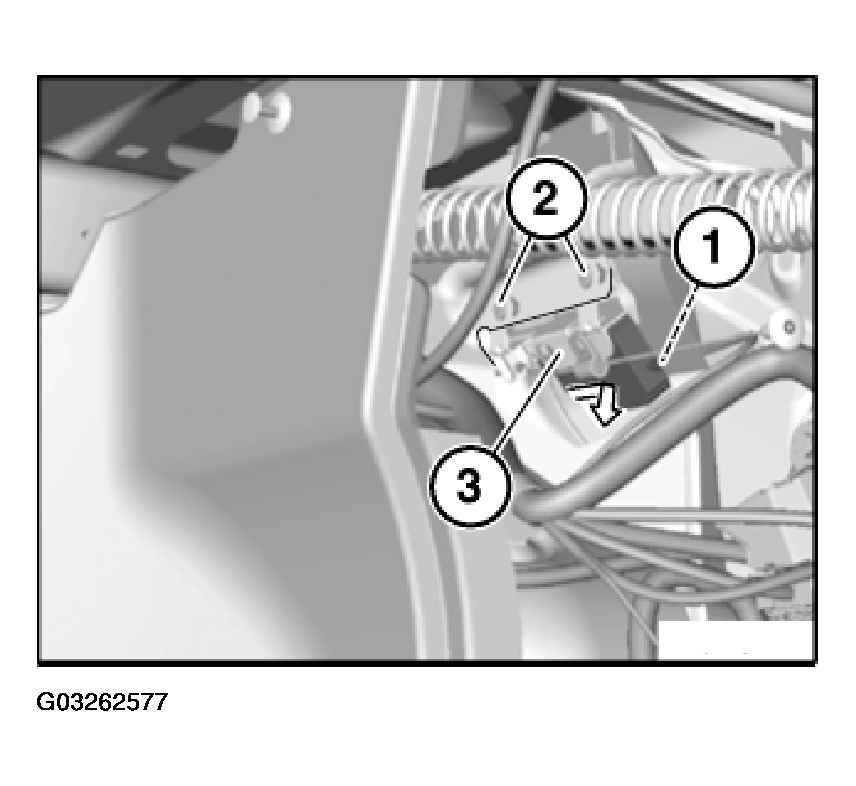

Fig 1: Removing Servodrive For Tank Filler Flap

Courtesy of BMW OF NORTH AMERICA, INC.

Turn sleeve (1) with a suitable tool (e.g.:pointed pliers) approx. 45° in direction of arrow and pull out of cover housing (2).

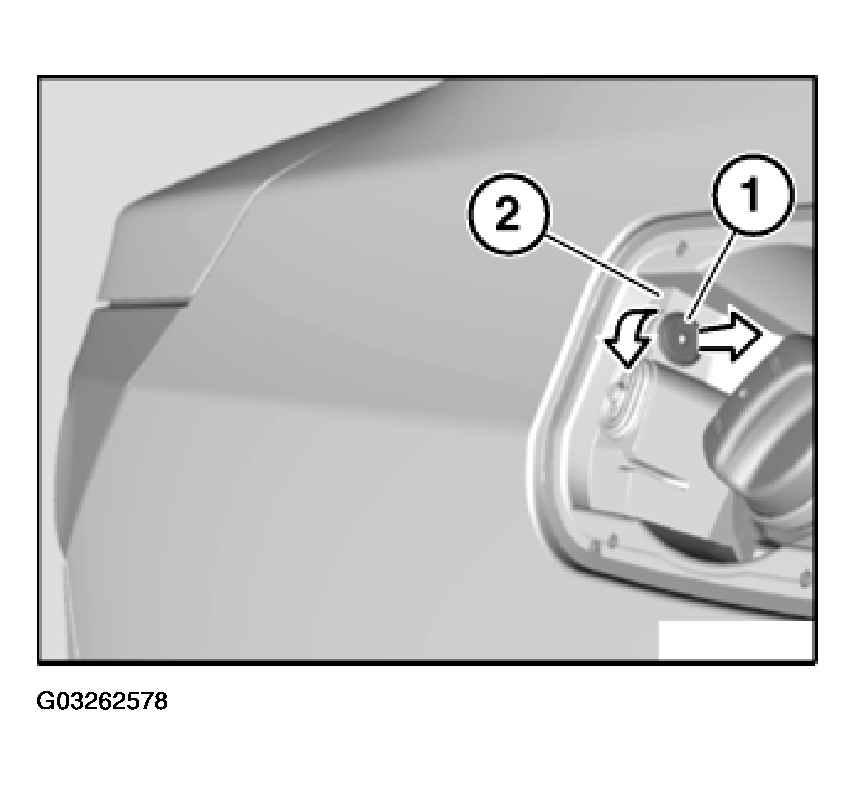

Fig 2: Turning Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide sleeve (1) over tank filler flap locking pin (2).

Make sure sleeve (1) is correctly engaged in cover housing (3).

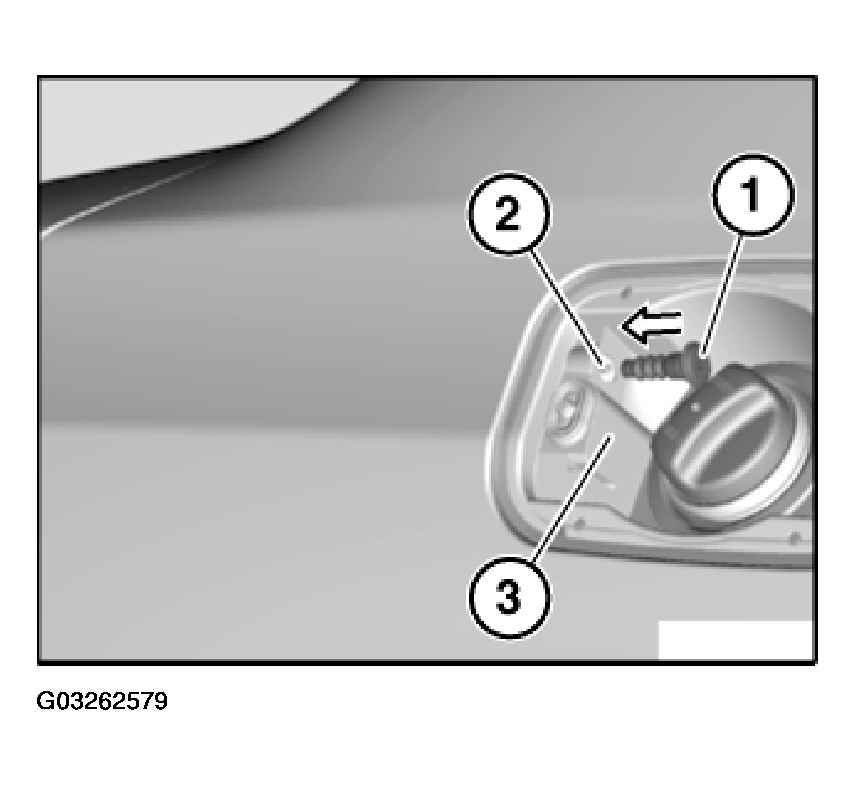

Fig 3: Ensuring Sleeve Is Engaged In Cover Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1).

Unclip tank filler flap Bowden cable (2) in direction of arrow from servodrive for tank filler flap (3).

Remove servodrive for tank filler flap (3) from retaining mount (4).

Installation:

Make sure clamp (5) is installed in correct position.

Carry out adjustment of servodrive for tank filler flap (3) via elongated holes (6). It must be possible to lock or unlock the fuel filler flap completely.

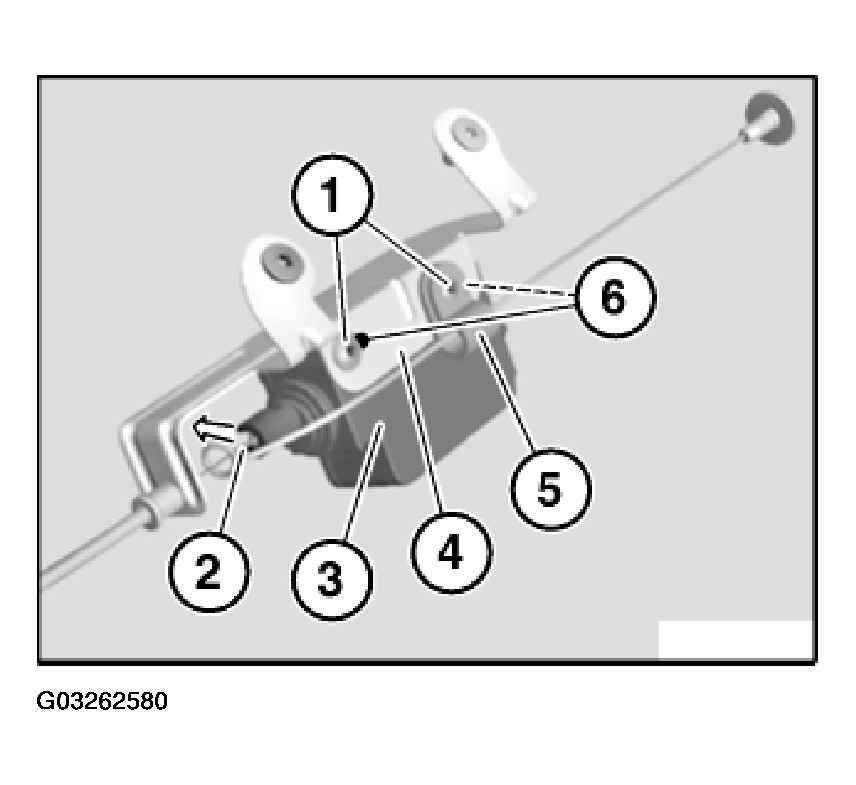

Fig 4: Adjusting Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.
