66 20 508 Removing and installing (replacing) control unit (Park Distance Control)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2007 BMW 530xi, 2007 BMW 530i, 2007 BMW 525xi, 2007 BMW 525i, and 2006 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). See 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Remove luggage compartment floor trim. See 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL .
Remove spare wheel.

Take off cover for control units (1).

Installation:

Make sure cover for control units (1) is correctly seated on locating pins (2).

Fig 1: Identifying Cover For Control Units And Pins

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Lift control unit (2) out of mounting for control units (3).

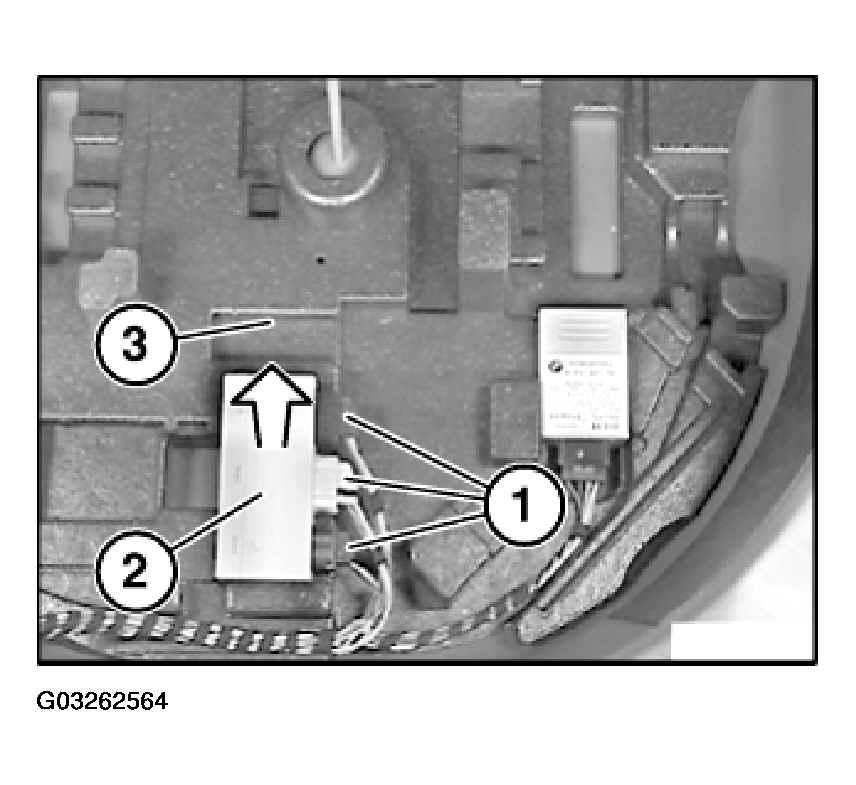

Fig 2: Lifting Control Unit Out Of Mounting For Control Units

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding.
