65 13 400 Removing and installing/replacing left or right frequency gate

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front door trim panel.
See TRIM PANEL (UP TO 03/2007) or TRIM PANEL (LONG VERSION OR FROM 03/2007) .

Disconnect plug connection (1).

Release screws (2) and remove frequency gate.

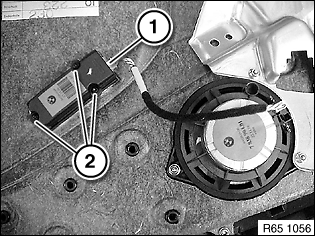

Fig 1: Identifying Frequency Gate Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
