65 12 260 Removing and installing/replacing DVD player in rear console (long version)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove UPPER REAR CONSOLE COVER
Cover, rear console, front

Disconnect plug connection (1).

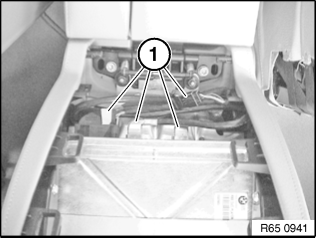

Fig 1: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove DVD player (2).

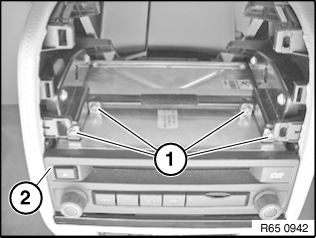

Fig 2: Identifying DVD Player And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/CODING .
