65 12 250 Removing and installing/replacing headphones module

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE LEAD .
If necessary, remove emergency wheel

Take off cover for control units (1).

Installation:

Make sure cover for control units (1) is correctly seated on locating pins (2).

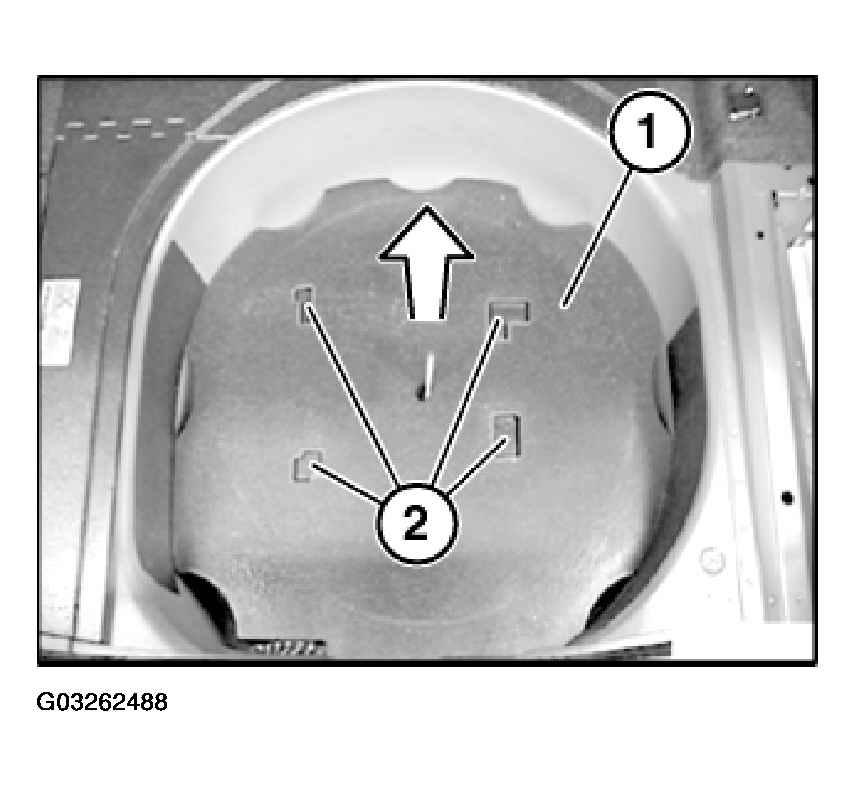

Fig 1: Identifying Cover For Control Units

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove headphones module (2) upwards out of mounting for control units (3).

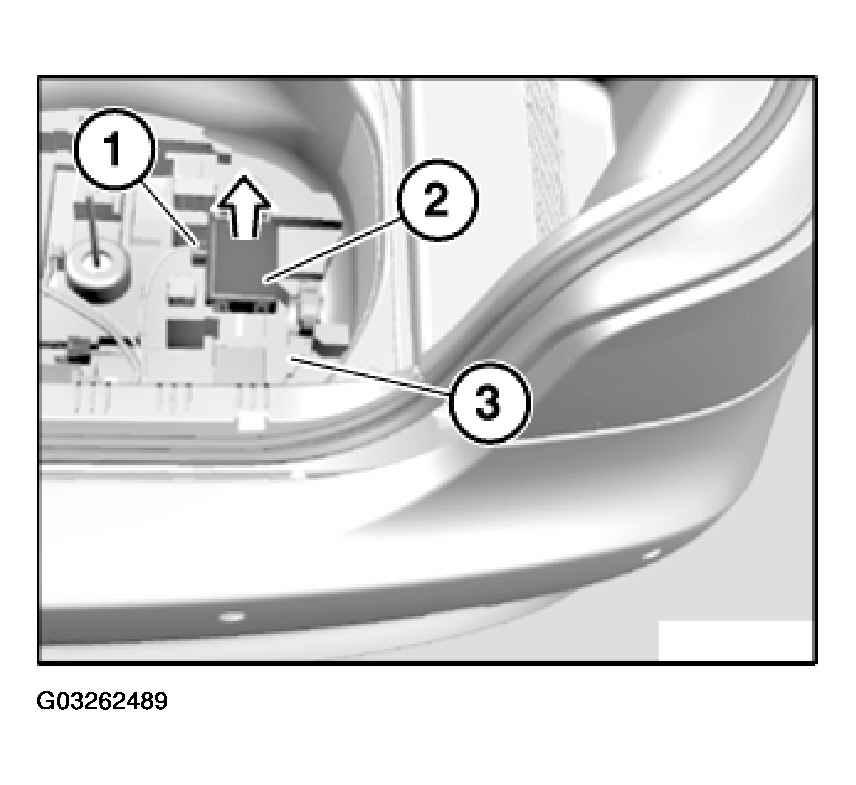

Fig 2: Removing Headphones Module Upwards Out Of Mounting For Control Units

Courtesy of BMW OF NORTH AMERICA, INC.
