65 12 070 Removing and installing/replacing amplifier
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Partially remove LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

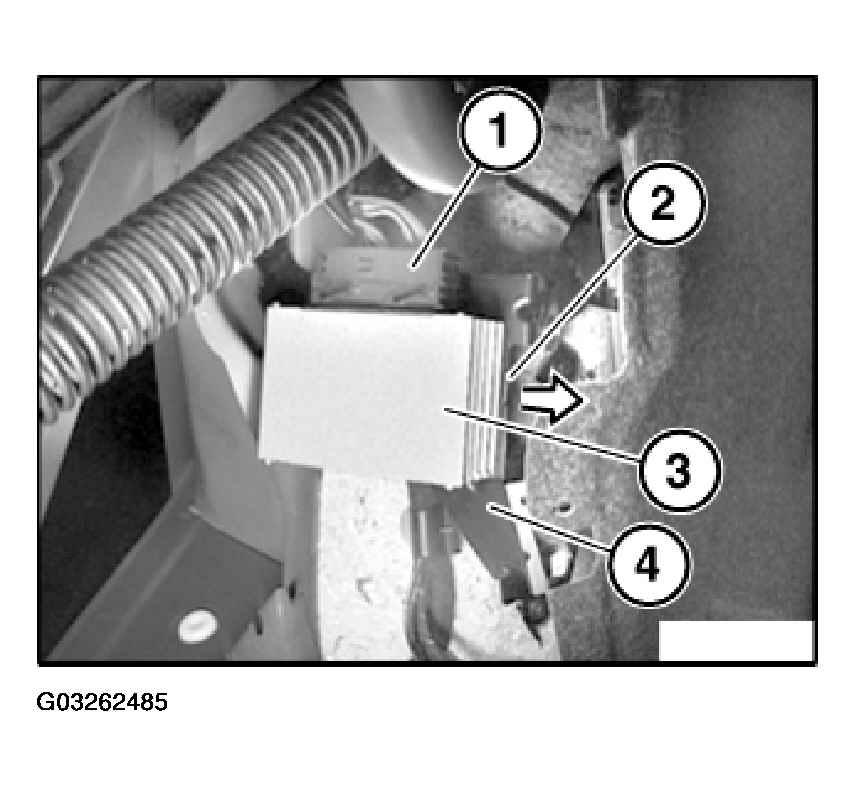

Unfasten plug connection (1) and disconnect.
Pull out retaining plate (2) in direction of arrow.
Installation:
Make retaining plate (2) is correctly seated.
Remove amplifier (3) from holder (4).
