65 83... Removing and installing/replacing front trim for Car Infotainment Computer

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage! A hard disk is installed in the Car Information Computer (CIC). Carry out mechanical work on the CIC and adjacent components with care. Avoid subjecting the CIC to shaking/shocks.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove MIDDLE INSTRUMENT PANEL TRIM .

Carefully raise catch (1) with a suitable tool in direction of arrow. Feed out front trim for Car Information Computer to right and remove.

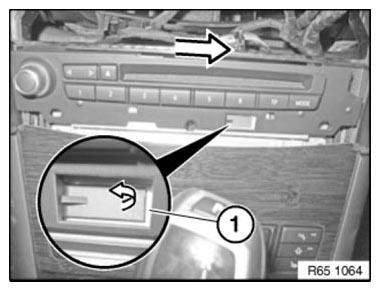

Fig 1: Lifting Catch

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1). Remove front trim of Car Information Computer.

Installation: Make sure guides (2) are correctly seated in designated openings. Replace front trim if guides are damaged.

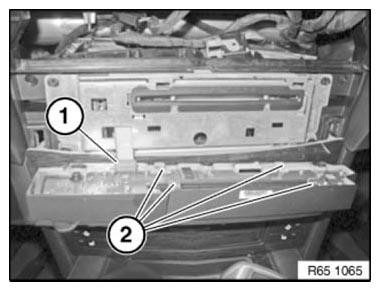

Fig 2: Identifying Plug Connection And Front Trim Guides

Courtesy of BMW OF NORTH AMERICA, INC.
