65 83 580 Removing and installing/replacing DVD drive for Car Communication Computer

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove FRONT TRIM FOR CAR COMMUNICATION COMPUTER .

If necessary, cut through warranty seal.

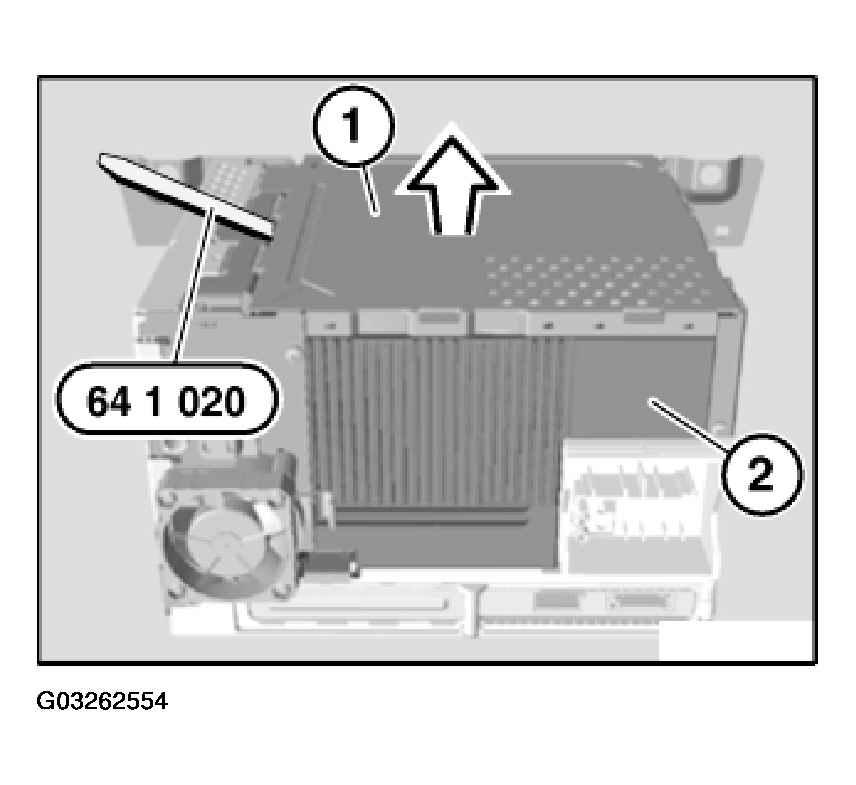

Raise cover (1) with special tool 64 1 020 all round and remove from Car Communication Computer (2).

Fig 1: Remove Cover From Car Communication Computer

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Feed out bridge (2).

Installation note:

Use special tool 00 9 450 (Torque wrench) to tighten down screws.

Tightening torque: 0.4 Nm

Fig 2: Identifying Bolts And Bridge

Courtesy of BMW OF NORTH AMERICA, INC.

Cut through labels at marked points (1).

Release screws (2) and remove cover (3).

Installation note:

Use special tool 00 9 450 (Torque wrench) to tighten down screws.

Tightening torque: 0.4 Nm

Fig 3: Identifying Marked Points, Screws And Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) with magnetic screwdriver.

Installation note:

Tab (2) of DVD drive must be above tab (3) of Car Communication Computer.

Fig 4: Identifying Screws And Lug

Courtesy of BMW OF NORTH AMERICA, INC.

Turn Car Communication Computer through 180° and carefully feed out DVD drive.

Carefully disconnect plug connections (1, 2).

Remove DVD drive (3).

Installation note:

Ensure correct cable routing.

Fig 5: Identifying Plug Connections And DVD Drive

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

There are two versions of the plug connection (2) shown in Fig 5:

Previous version (1): ribbon cable is connected horizontally

Current version (2): ribbon cable is connected vertically

Fig 6: Identifying Ribbon Cable Connection Horizontally And Vertically

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

On cars before March 2006 it is essential after replacing the DVD drive to carry out PROGRAMMING/CODING .
