65 83 570 Removing and installing/replacing CD drive for Car Communication Computer

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove FRONT TRIM FOR CAR COMMUNICATION COMPUTER .

If necessary, cut through warranty seal.

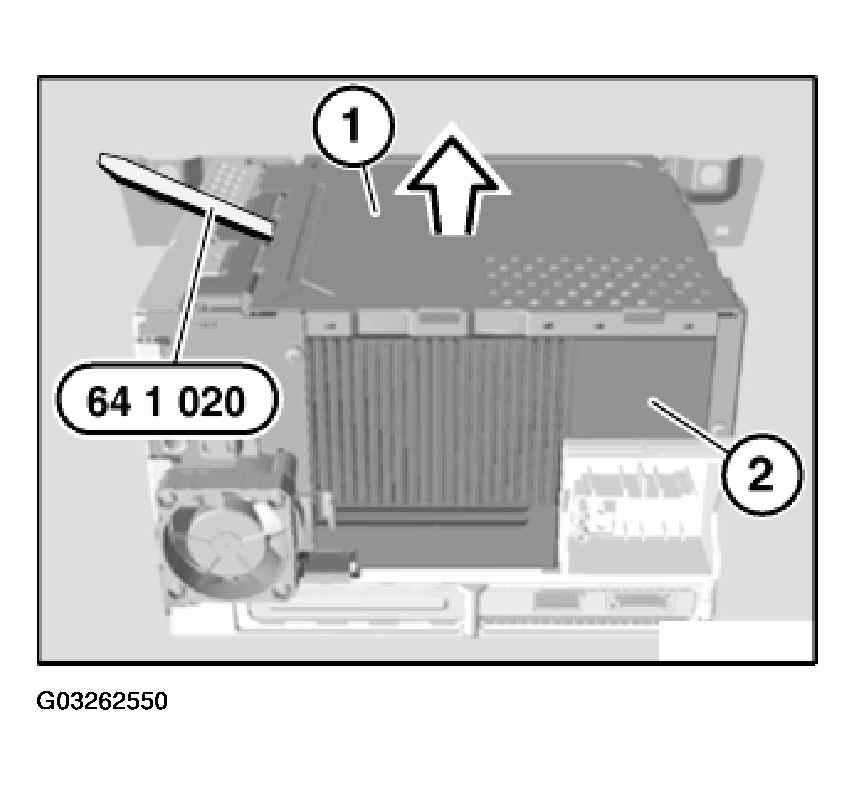

Raise cover (1) with special tool 64 1 020 all round and remove from Car Communication Computer (2).

Fig 1: Raising Cover

G03262550

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

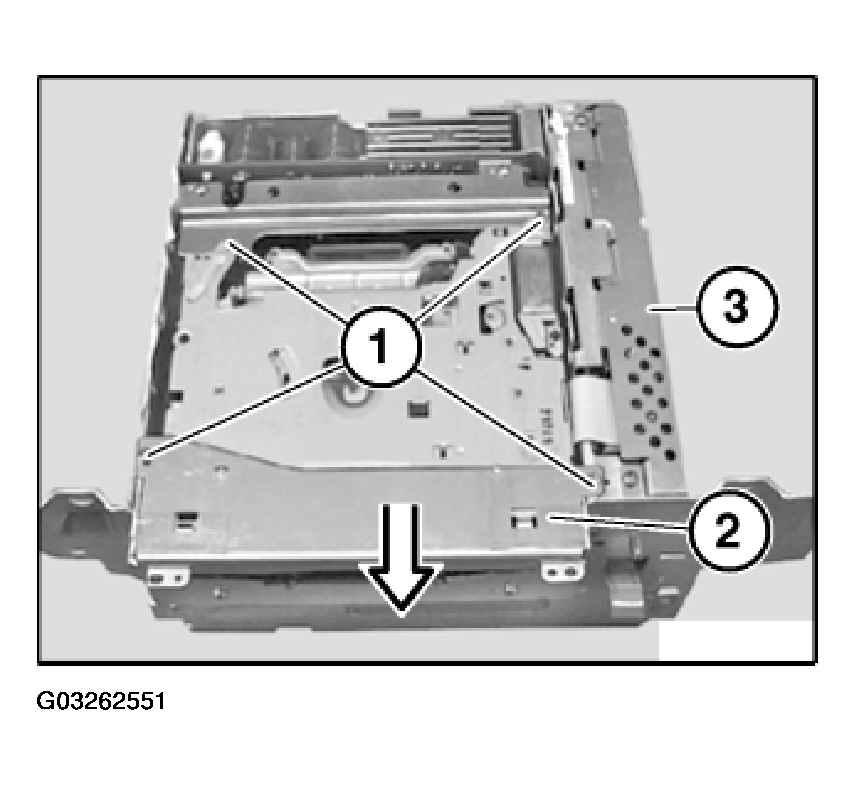

Feed CD drive for Car Communication Computer (2) in direction of arrow out of Car Communication Computer (3) and set down.

Installation:

Ensure correct routing of cables.

Fig 2: Feeding CD Drive For Car Communication Computer

G03262551

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

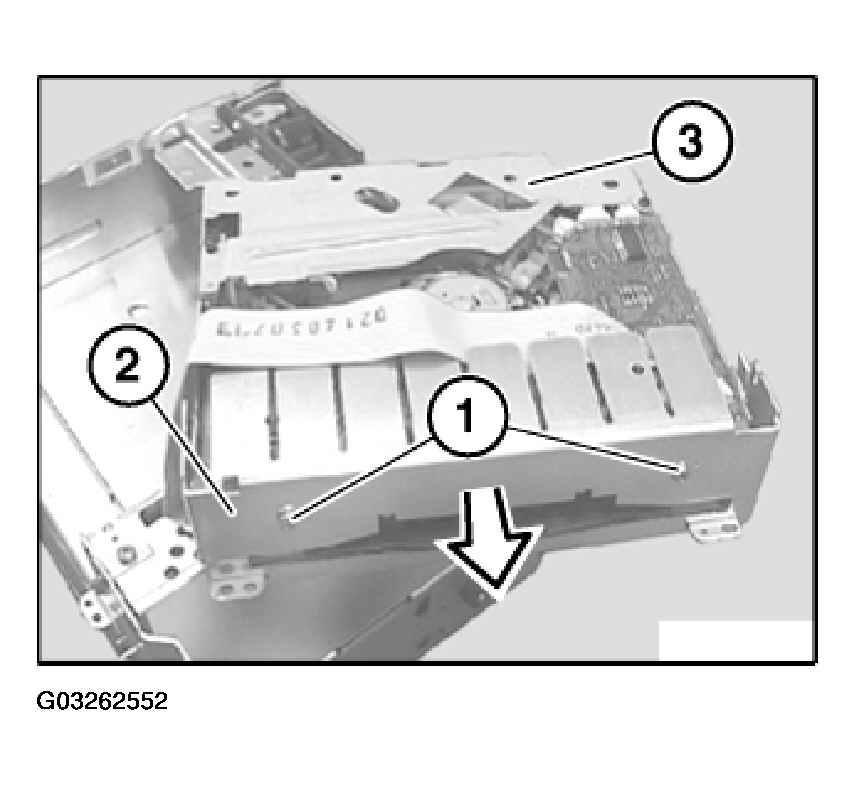

Remove CD drive trim (2) in direction of arrow from CD drive for Car Communication Computer (3).

Installation:

Ensure correct routing of cables.

Fig 3: Removing CD Drive Trim

G03262552

Courtesy of BMW OF NORTH AMERICA, INC.

Cut through warranty seal (1) at marked point.

Release screw (2).

Lift side cover out of mounting (3) and carefully place to one side.

Fig 4: Identifying Seal, Screws And Mounting

G04753759

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) and remove CD drive.

Fig 5: Identifying Plug Connection

G04753760

Courtesy of BMW OF NORTH AMERICA, INC.
