65 77... Overview of sensors for airbag system (from 09/2005)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

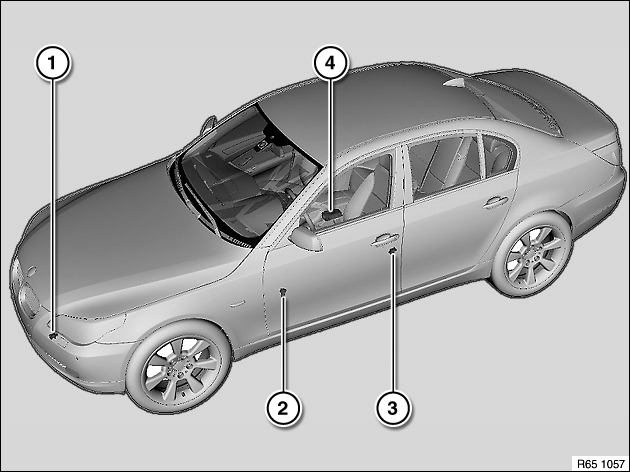

Fig 1: Overview Of Sensors For Airbag System (From 09/2005)
G00460304Courtesy of BMW OF NORTH AMERICA, INC.
  1. Acceleration sensors, front (left/right, US version only)
  2. Sensor, front door (left/right)
  3. Sensor, B-pillar (left/right)
  4. Airbag control unit (under center console)
