65 77 740 Removing and installing (replacing) left front door sensor
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)
.
WARNING:
Note airbag SAFETY INSTRUCTIONS !
Incorrect handling can activate airbag and cause injury.
Necessary preliminary tasks:
- Remove FRONT DOOR TRIM PANEL .
- Detach SOUND INSULATION IN WORK AREA .

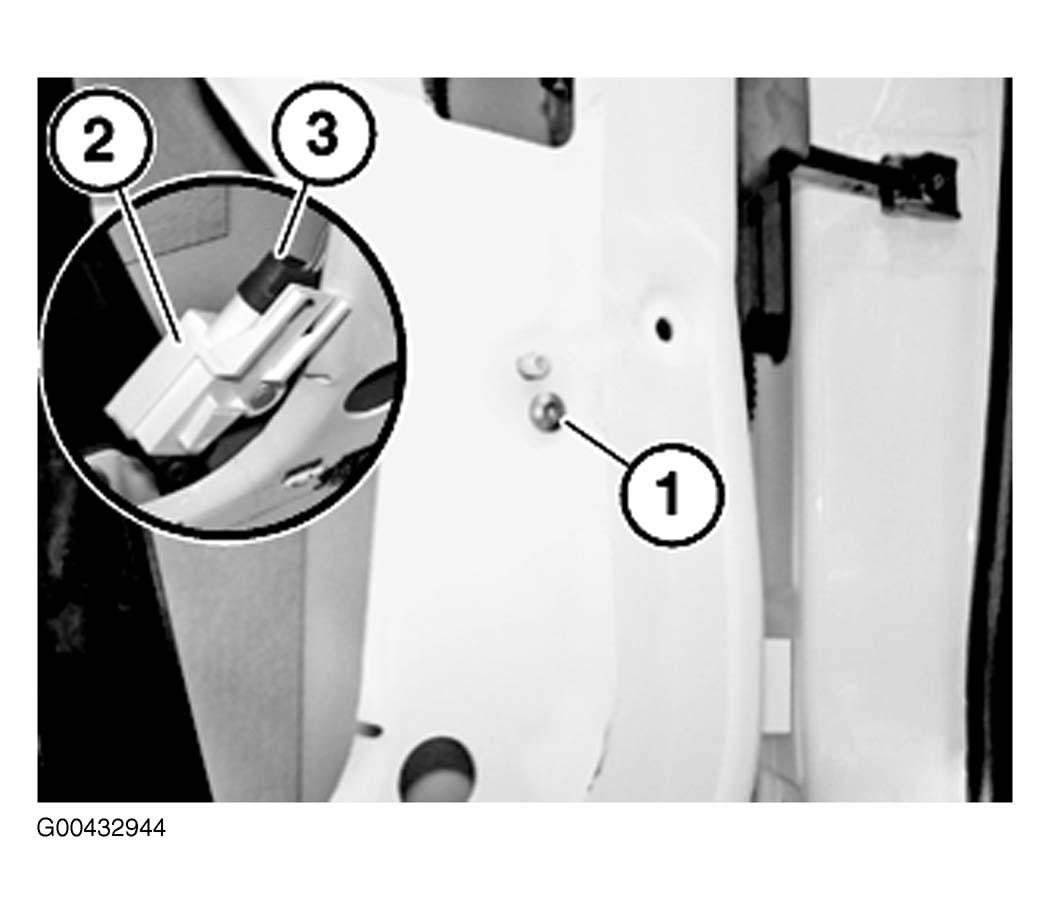

Release screw (1) and remove front door sensor (2) from door. Disconnect plug connection (3).
Tightening torque: 8 Nm
