65 77 720 Removing and installing (replacing) left B-pillar sensor

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

WARNING:

Note airbag SAFETY INSTRUCTIONS !

Incorrect handling can activate airbag and cause injury.

NOTE: Comply with notes and instructions on HANDLING OPTICAL FIBERS .

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE LEAD and cover.
Remove PANEL FOR DOOR PILLAR (bottom).

Slacken screws (1)

Release screw (2).

Installation:

Tightening torque: 4.6 Nm

Raise B-pillar sensor (3) slightly through opening in B-pillar and feed out towards rear.

Unclip cable duct (4) at points (5).

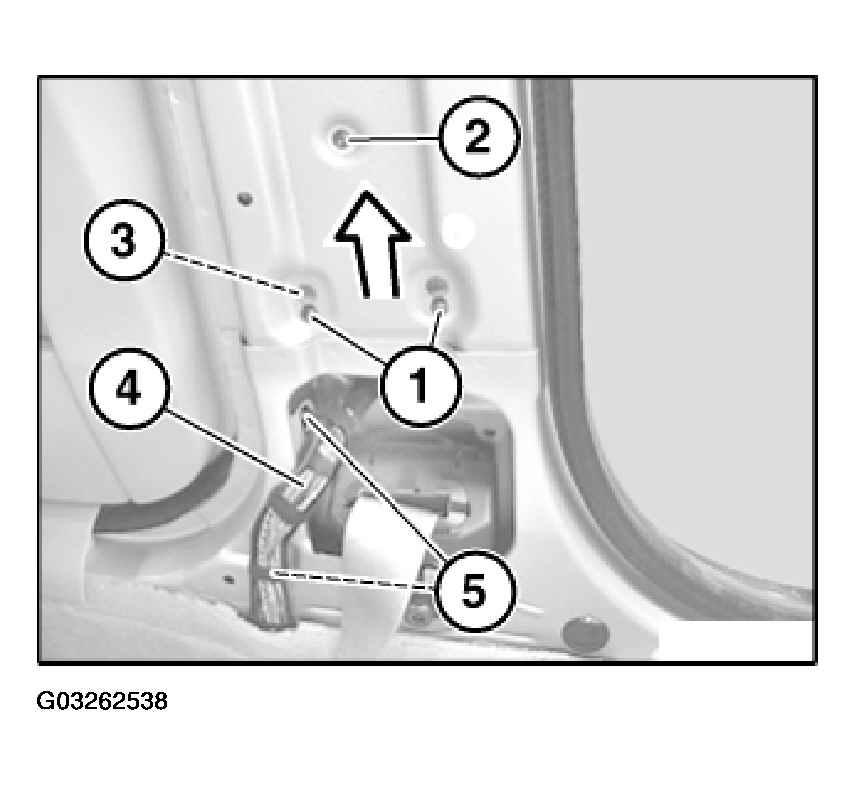

Fig 1: Identifying Unclip Cable

G03262538

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Feed B-pillar sensor (2) in direction of arrow out of B-pillar (3) and remove.

Installation:

Make sure electrical leads are correctly routed.

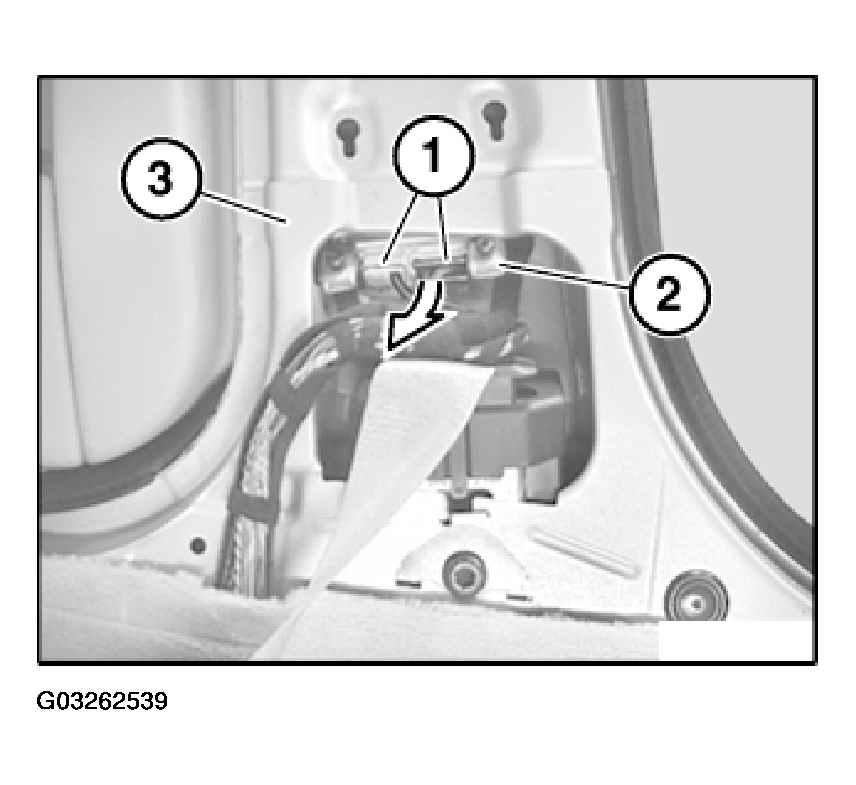

Fig 2: Feeding B-Pillar Sensor

G03262539

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure metal nut (1) is correctly positioned on B-pillar sensor (2).

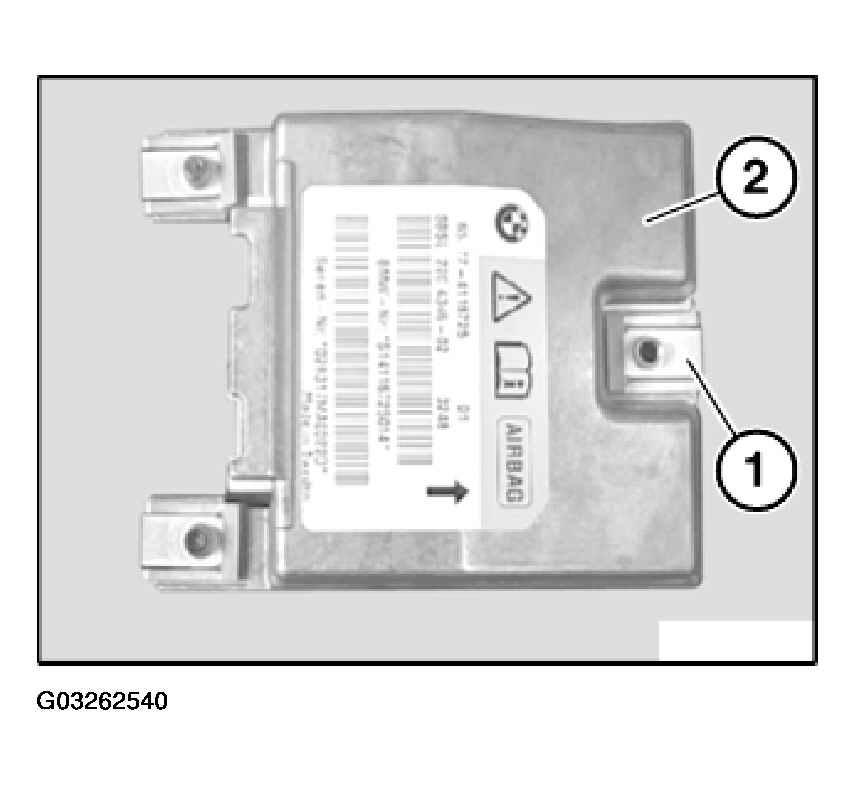

Fig 3: Identifying Metal Nut Location And B-Pillar Sensor

G03262540

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/CODING .
