65 77 720 Removing And Installing/Replacing Left Or Right B-Pillar Sensor (From 09/2005)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE LEAD .
Remove PANEL FOR DOOR PILLAR .

Release screw (1).

Slacken screw (2) and feed out B-pillar sensor in downward direction.

Tightening torque: 4.6 Nm

Installation:

Make sure centering pin (3) is correctly seated.

Replace screws (1 and 2).

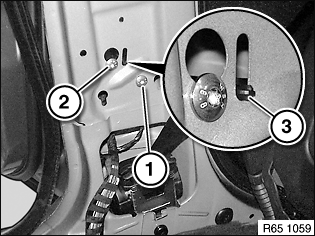

Fig 1: Identifying Screws And Centering Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) and remove B-pillar sensor.

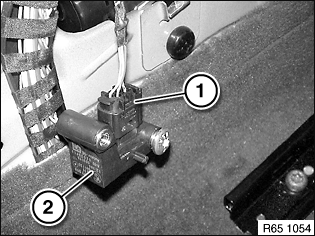

Fig 2: Identifying B-Pillar Sensor And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
