65 77 560 Removing and installing/replacing control electronics for passenger seat occupancy detector

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Move seat into most upward position.

NOTE: Seat shown removed for purposes of clarity.

Unlock plug connections (1) and disconnect.

Unlock catch (2) and remove control electronics for passenger seat occupancy detector (3) in direction of arrow from seat frame (4).

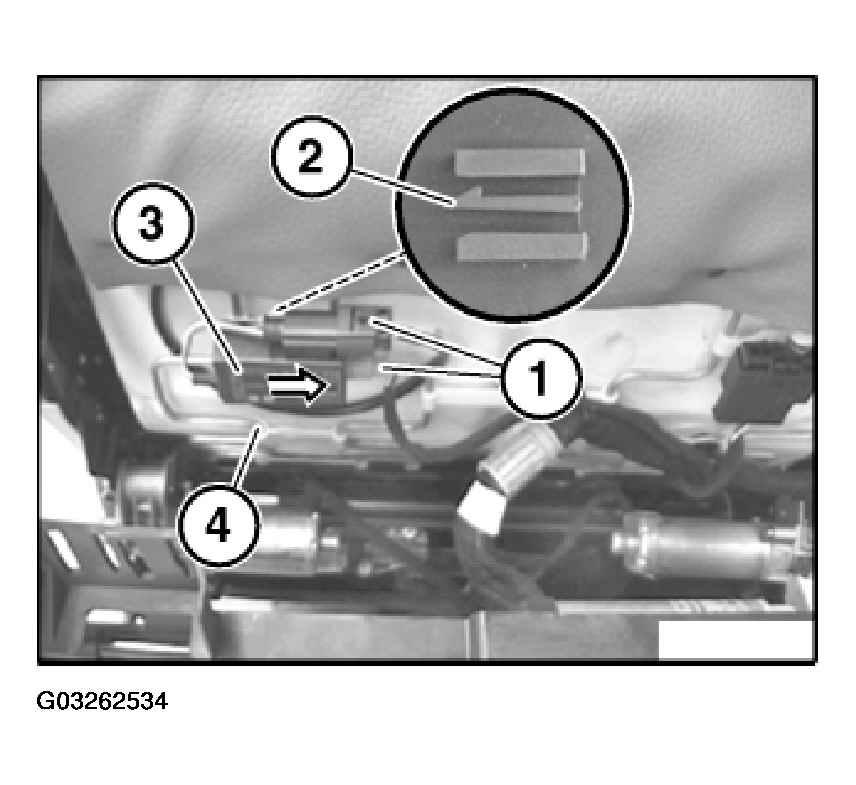

Fig 1: Removing Control Electronics For Passenger Seat Occupancy Detector

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining hook (1) of control electronics for passenger seat occupancy detector (2) must not be damaged.

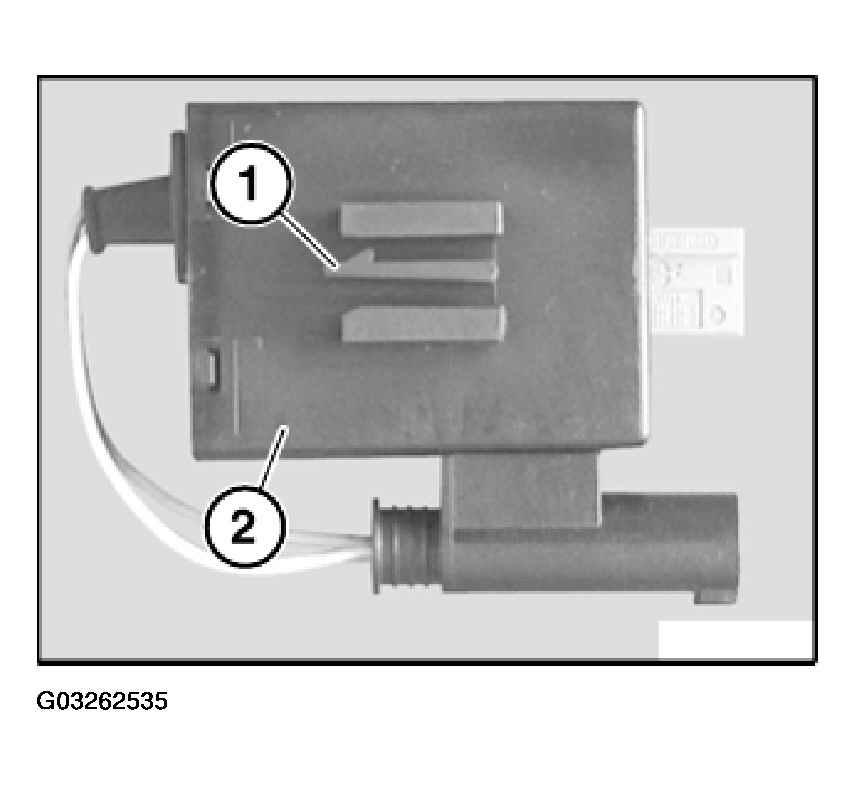

Fig 2: Identifying Retaining Hook Of Control Electronics For Passenger Seat Occupancy Detector

Courtesy of BMW OF NORTH AMERICA, INC.
