64 11 991 Removing and installing/replacing sensor for automatic recirculated air control
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2007 BMW M5, 2007 BMW 550i, 2007 BMW 530xi, 2007 BMW 530i, and 2007 BMW 525xi. However, it is still accessible from the selected car via links, so may be relevant.

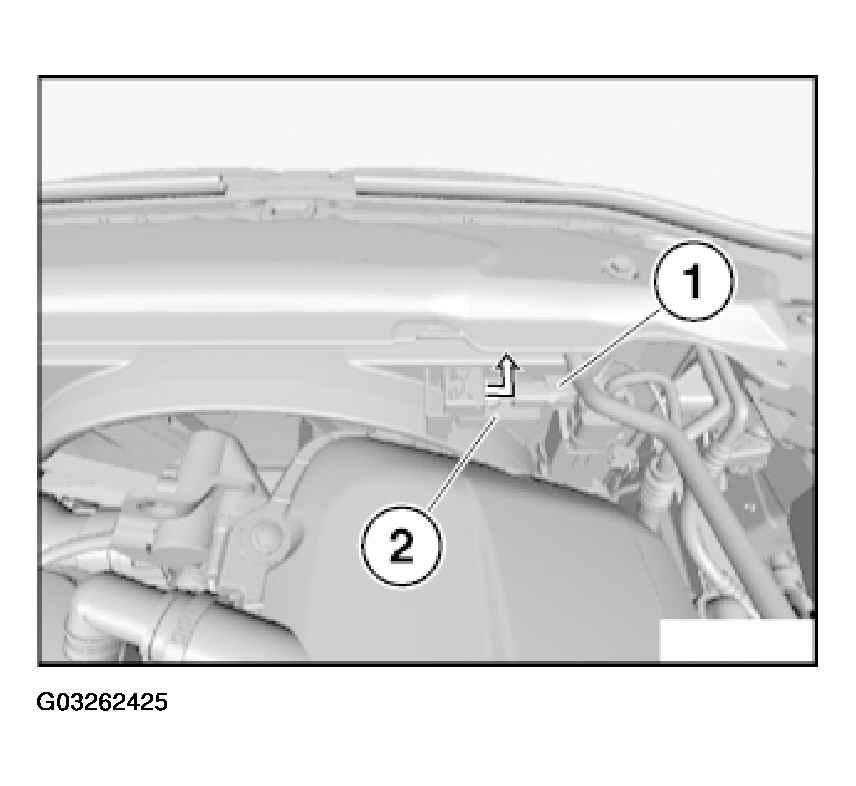

Unfasten plug connection (1) and disconnect.
Feed out sensor for automatic recirculated air control (2) in direction of arrow and remove.
Installation:
Make sure sensor for automatic recirculated air control (2) is correctly seated.
