64 11 912 Removing and installing/replacing temperature sensor for heating unit
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2007 BMW M5, 2007 BMW 550i, 2007 BMW 530xi, 2007 BMW 530i, and 2007 BMW 525xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove on-board monitor. See 65 82 050 REMOVING AND INSTALLING (REPLACING) ON-BOARD MONITOR .

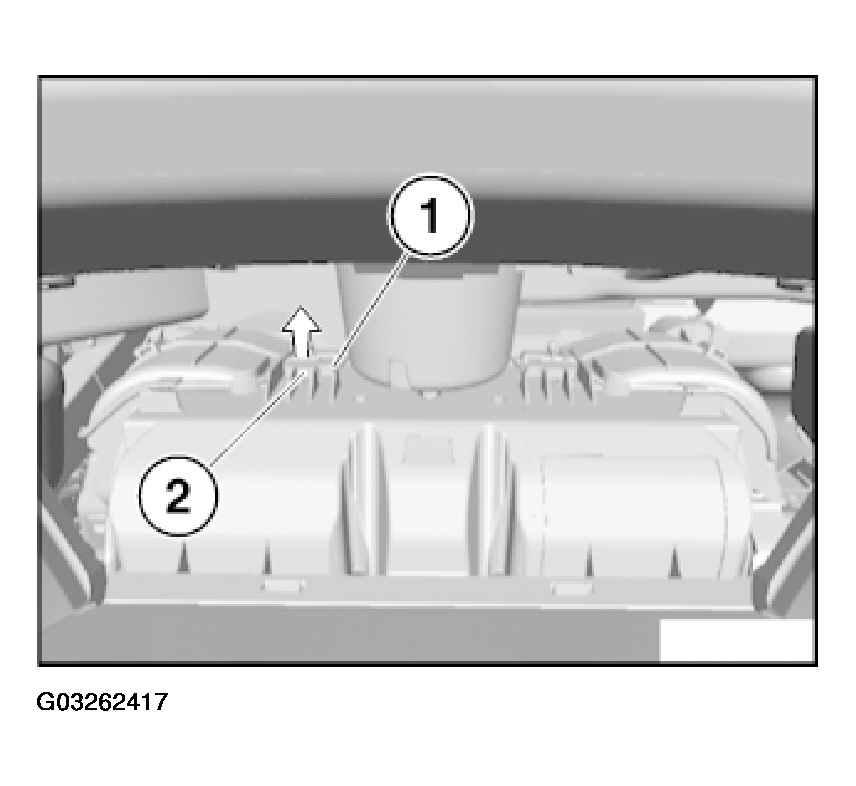

Unfasten plug connection (1) and disconnect.
Pull out temperature sensor for heating unit (2) in direction of arrow.
Installation:
Make sure temperature sensor for heating unit (2) is correctly seated.
