64 52 523 Replacing compressor for air conditioner

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2007 BMW M5, 2007 BMW 550i, 2007 BMW 530xi, 2007 BMW 530i, and 2007 BMW 525xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage!

Follow instructions for compressor replacement without fail. See 64 52... Instructions For Compressor Replacement .

Necessary preliminary tasks:

All models:

Draw off refrigerant from A/C system. See 64 50 009 Drawing Off, Evacuating And Filling A/C System (R 134a) .
Remove front underbody protection.

M54 only:

Release coolant expansion tank, disconnect plug connection and place coolant expansion tank to one side.

Version with Dynamic Drive:

Do not release pressure lines on active stabilizer.

Press lock (1) on distributor (2) and detach vent line (3) in direction of arrow.

Installation:

Make sure vent line (3) is correctly seated in distributor (2).

Lower stabilizer on front axle.

Fig 1: Pressing Lock On Distributor And Detach Vent Line

Courtesy of BMW OF NORTH AMERICA, INC.

Version with Dynamic Drive:

Release nuts (1) and (2).

Remove retaining fixture (3).

Installation:

Make sure retaining fixture (3) is correctly seated.

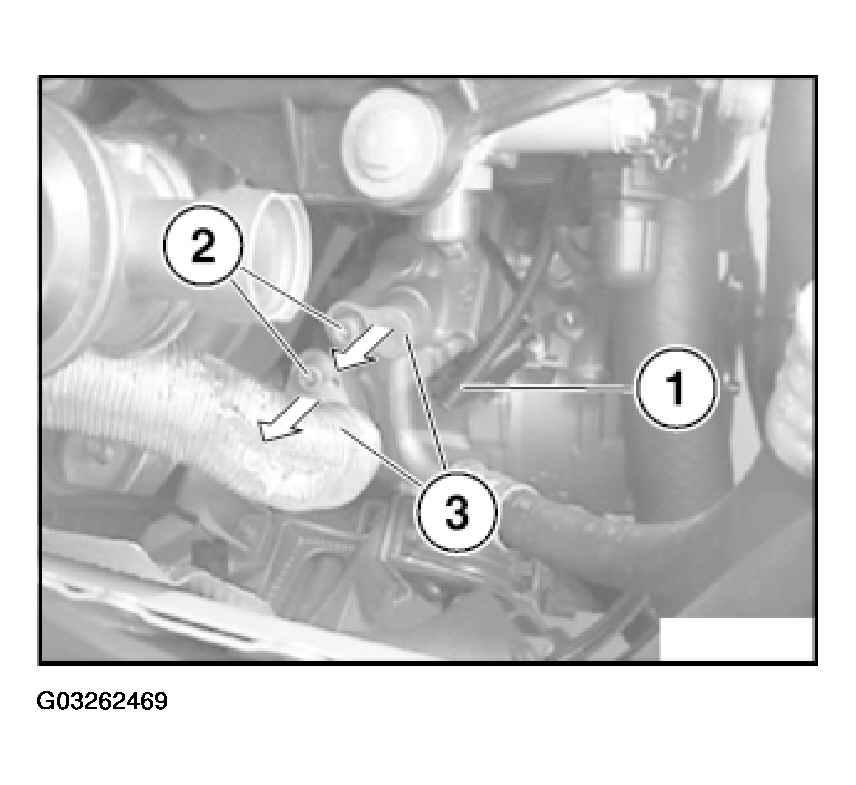

Fig 2: Removing Retaining Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

All models:

Unfasten plug connection (1) and disconnect.

Loosen screws (2).

Installation:

Tightening torque, see 64 52 1AZ in AIR CONDITIONING & HEATING - TIGHTENING TORQUES article.

Detach refrigerant lines (3) in direction of arrow.

Installation:

Replace sealing rings.

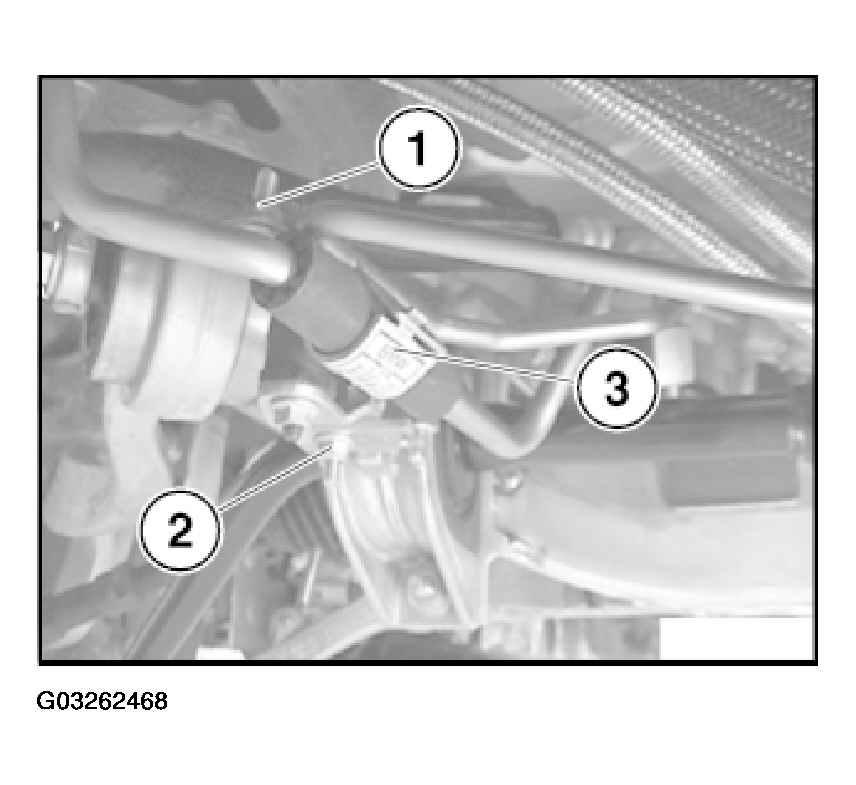

Fig 3: Detaching Refrigerant Lines

Courtesy of BMW OF NORTH AMERICA, INC.

All models:

NOTE:

Secure A/C compressor (2) against falling out.

Release screws (1).

Feed out A/C compressor (2) in direction of arrow.

Fig 4: Securing A/C Compressor Against Falling Out

Courtesy of BMW OF NORTH AMERICA, INC.
