63 13 200 Removing and installing/replacing front left or right auxiliary turn signal lamp

WARNING: This page is about a different car, the 2005 BMW 525i and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Slide front auxiliary turn signal lamp (1) towards rear and fold in direction of arrow out of front side wall (2).

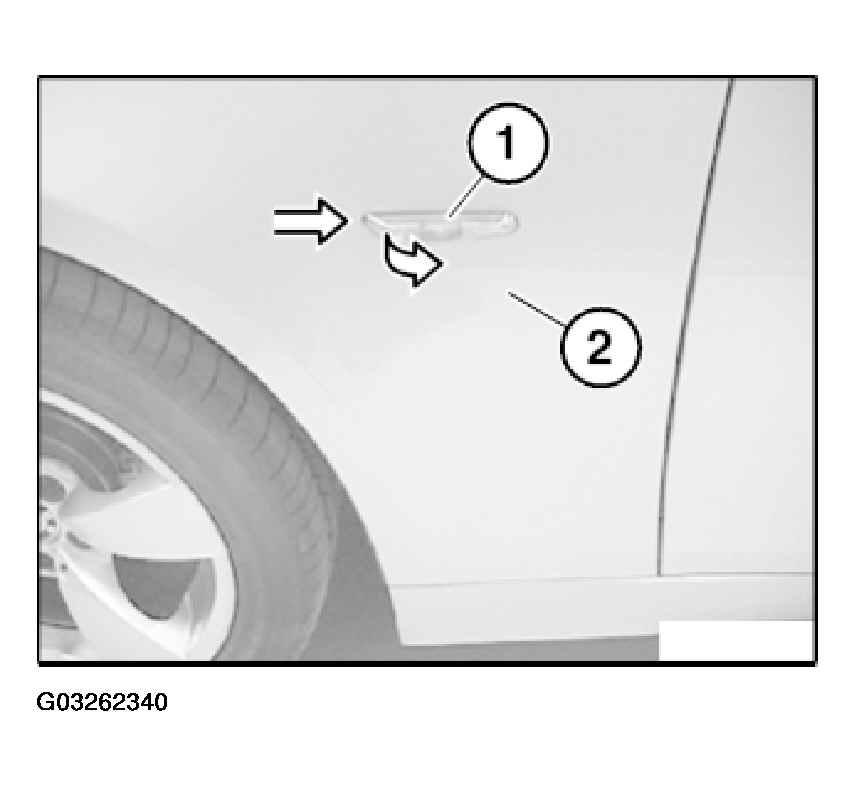

Fig 1: Sliding Front Auxiliary Turn Signal Lamp Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove front auxiliary turn signal lamp (2).

WARNING: Follow instructions for handling light bulbs (exterior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights) .

Replacement:

If necessary, convert bulb.

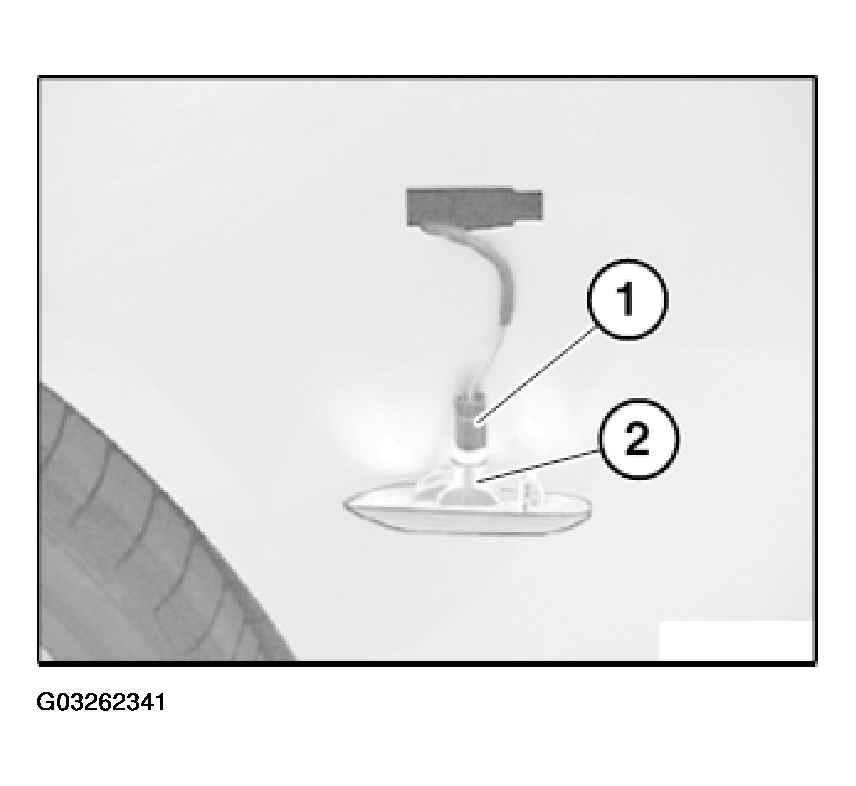

Fig 2: Removing Front Auxiliary Turn Signal Lamp

Courtesy of BMW OF NORTH AMERICA, INC.
