63 21 055 Replacing a socket housing for left or right rear light
WARNING: This page is about a different car, the 2005 BMW 525i and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove luggage compartment trim on side panel. See WARNING: Follow instructions for handling light bulbs (exterior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights) .

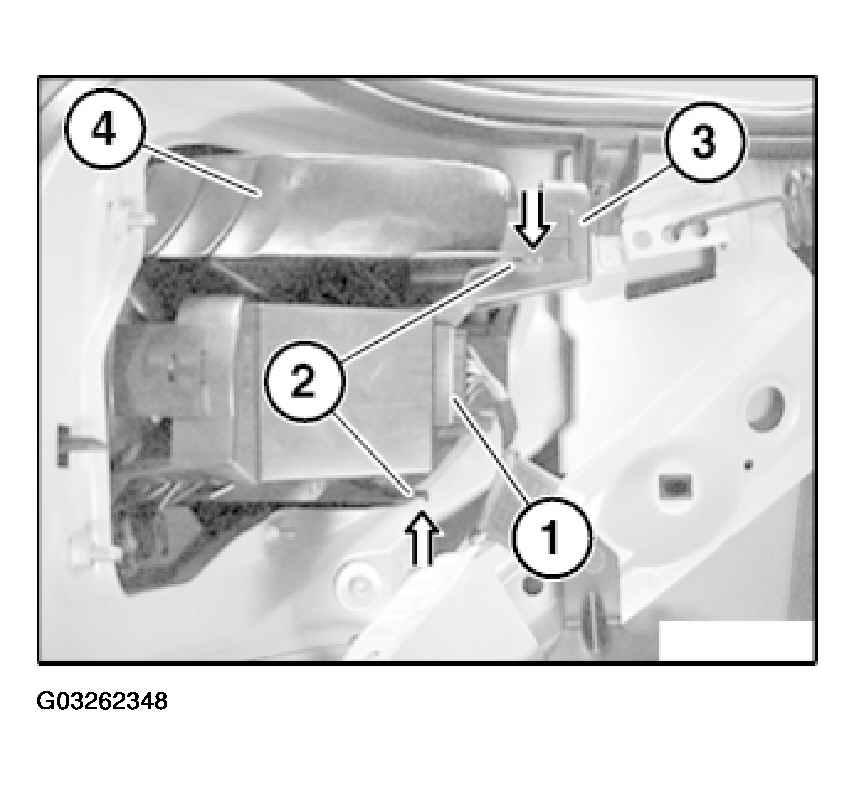

Unfasten plug connection (1) and disconnect.
Unlock locking clip (2) in direction of arrow and remove socket housing for rear light (3) from rear light (4).
Courtesy of BMW OF NORTH AMERICA, INC.
Installation:
Convert bulbs, replace if necessary.
