63 99 495 Replacing LED for left or right door handle/door compartment light

WARNING: This page is about a different car, the 2005 BMW 525i and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (interior lights). See 63 99... Instructions For Replacing Light Bulbs (Interior Lights) .

For door compartment light: Lever out cap for door compartment light.

Fig 1: Levering Out Cap For Door Compartment Light

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock LED in direction of arrow and detach cap. Remove sheathing from wiring harness. Disconnect cables. Connect cables of new wiring harness with butt connectors and heat-shrink sleeves. Insulate wiring harness with insulating tape.

Fig 2: Unlocking LED In Direction Of Arrow & Detaching Cap

Courtesy of BMW OF NORTH AMERICA, INC.

For door handle light: Lever out cap for door compartment light.

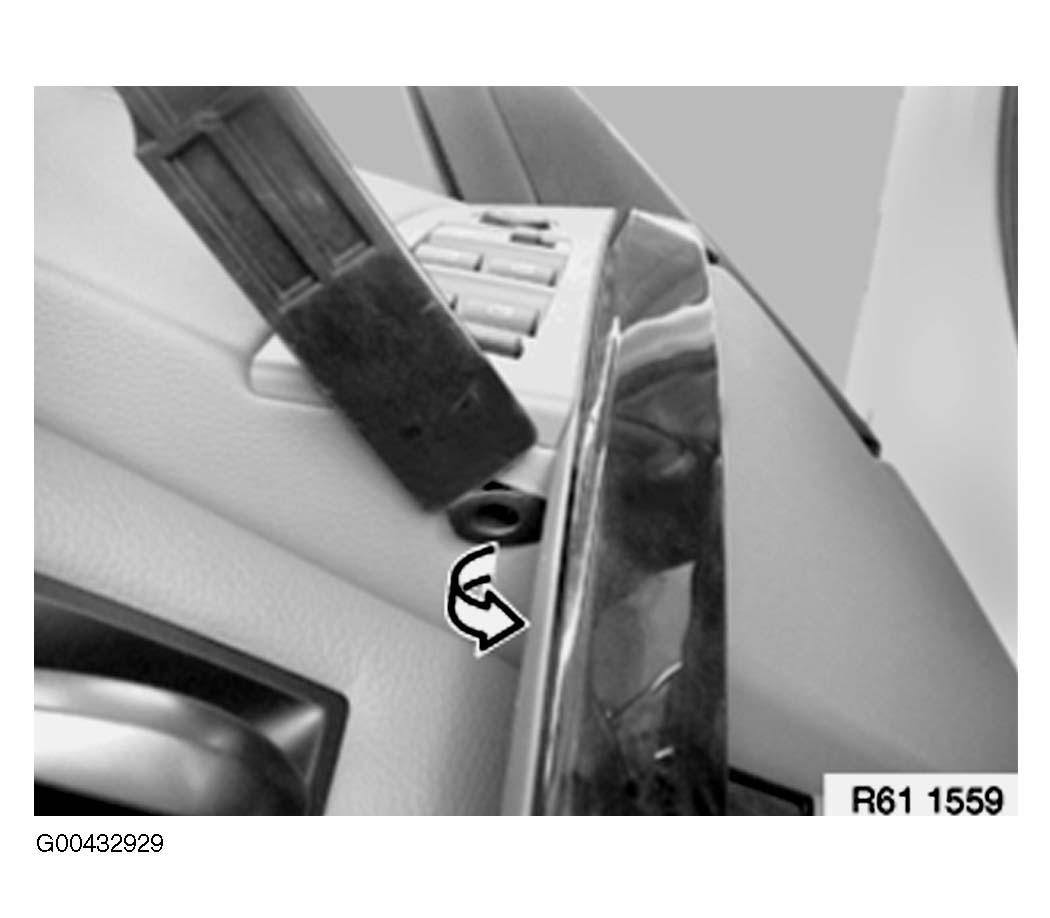

Fig 3: Levering Out Cap For Door Compartment Light

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock LED in direction of arrow and detach cap. Remove sheathing from wiring harness. Disconnect cables.

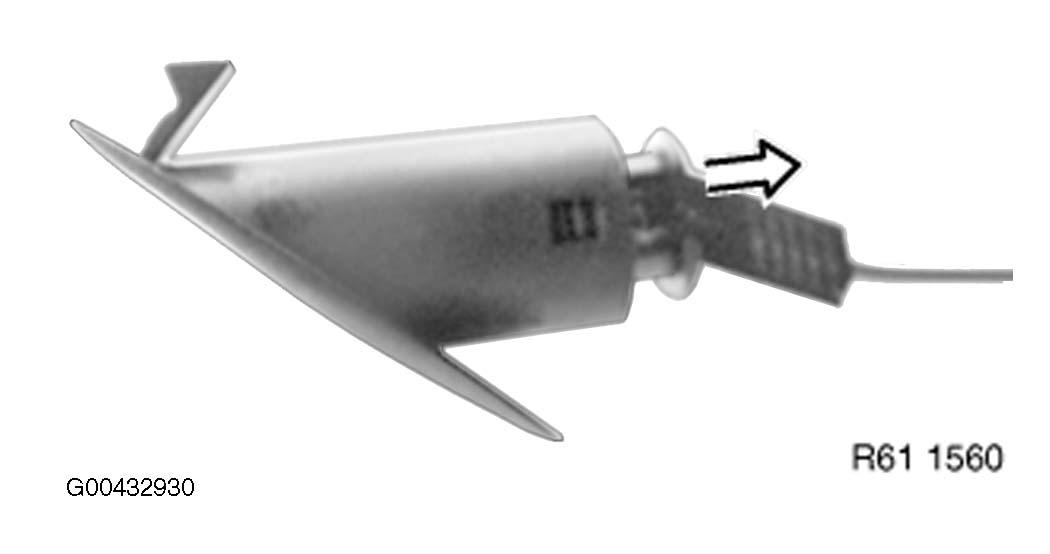

Fig 4: Unlocking LED In Direction Of Arrow & Detaching Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Connect cables of new wiring harness with butt connectors and heat-shrink sleeves. Insulate wiring harness with insulating tape.
