63 99 437 Replacing light bulb for footwell light

WARNING: This page is about a different car, the 2005 BMW 525i and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Follow instructions for handling light bulbs (interior lights). See 63 99... Instructions For Replacing Light Bulbs (Interior Lights)  .

Necessary preliminary tasks: Remove footwell light.

Move lens cover (1) in direction of arrow and remove. Remove festoon (2) underneath. Installation: Note bulb type.

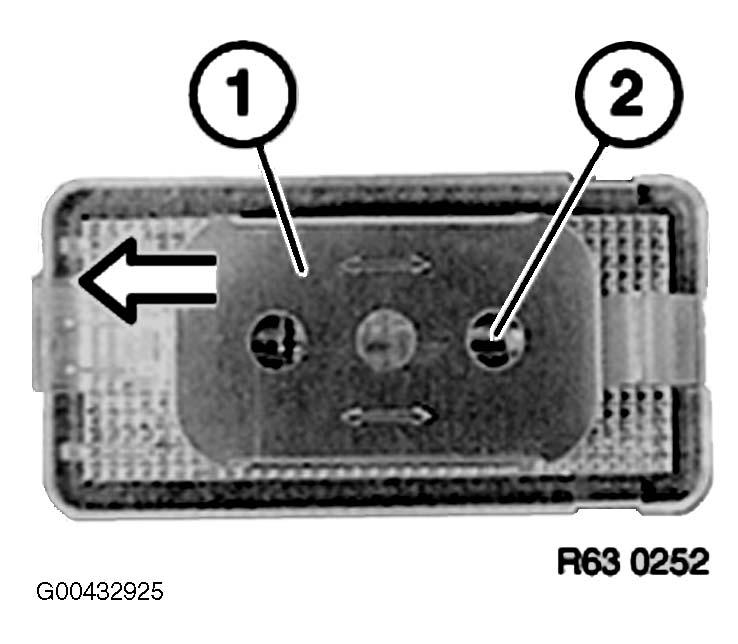

Fig 1: Moving Lens Cover & Removing Festoon
G00432925Courtesy of BMW OF NORTH AMERICA, INC.
