63 99 295 Replacing bulb for auxiliary turn signal light, front left or right

WARNING: This page is about a different car, the 2005 BMW 525i and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Follow instructions for handling light bulbs (exterior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights)  .

Necessary preliminary tasks:

Turn bulb holder (1) approx. 45° and remove from front auxiliary turn signal light (2).

Pull bulb out of holder (1).

Installation:

Note type of bulb.

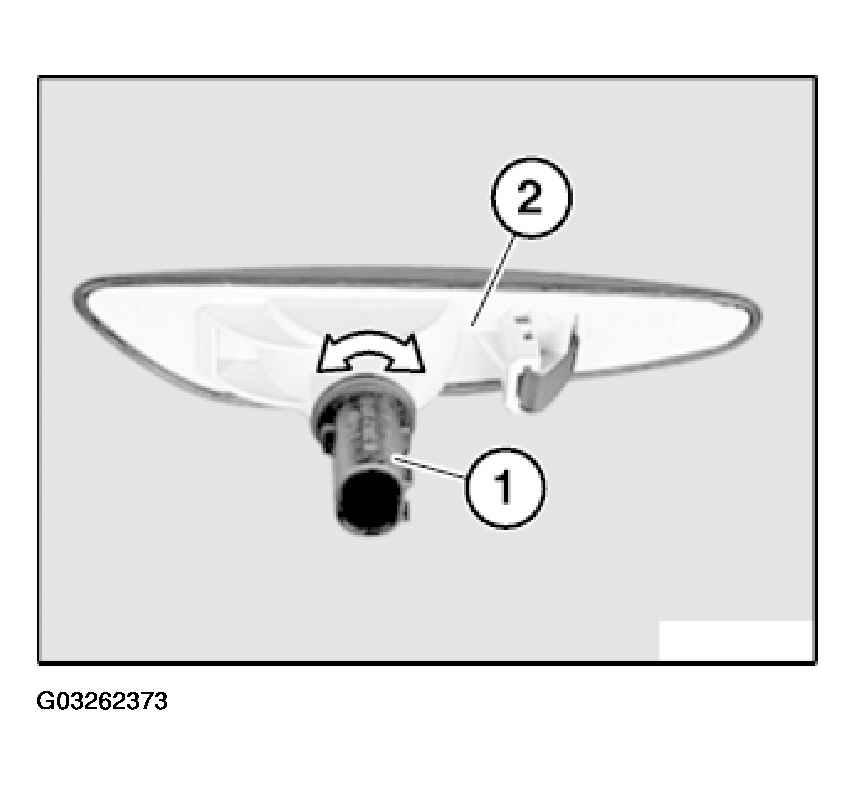

Fig 1: Turning Bulb Holder Approx. 45° And Removing From Front Auxiliary Turn Signal Light
G03262373Courtesy of BMW OF NORTH AMERICA, INC.
