63 99 132 Replacing bulb for side marker lamp, front left
WARNING: This page is about a different car, the 2005 BMW 525i and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow instructions for handling light bulbs (exterior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights)
.
Necessary preliminary tasks:
- Remove halogen lamp for high-beam headlight

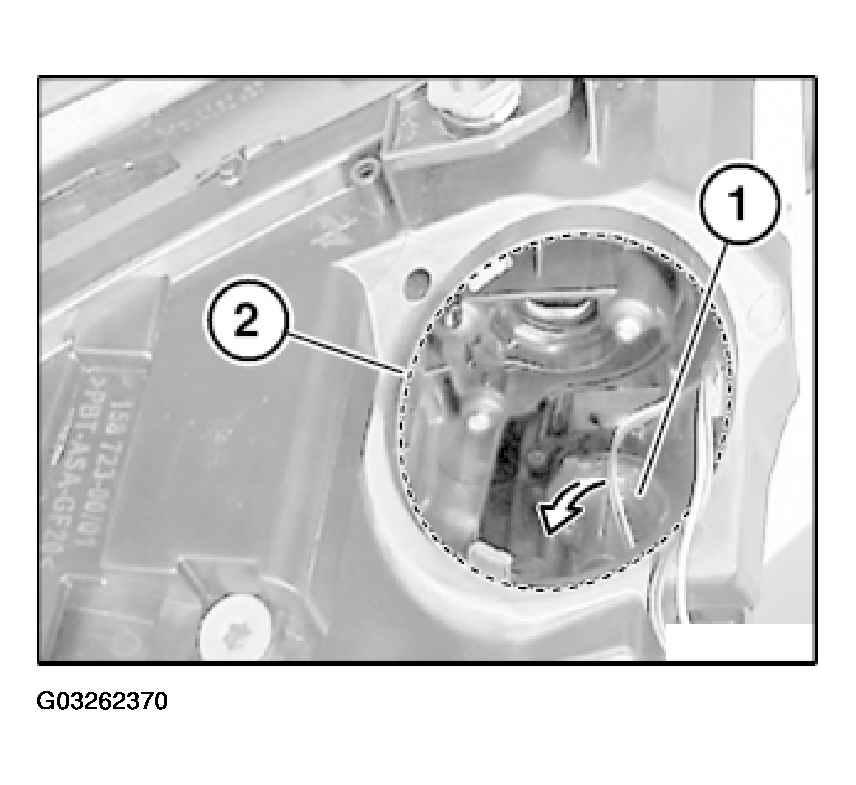

Turn holder with bulb for side marker lamp (1) approx. 30° counterclockwise.
Feed holder with bulb for side marker lamp (1) out of aperture for headlight (2).
Unlock associated plug connection and disconnect.
Installation:
Holder with bulb for side marker lamp (1) must be correctly seated in mounting.
Note type of bulb.
