63 99 072 Replacing halogen bulb for headlight on left

WARNING: This page is about a different car, the 2005 BMW 525i and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights)

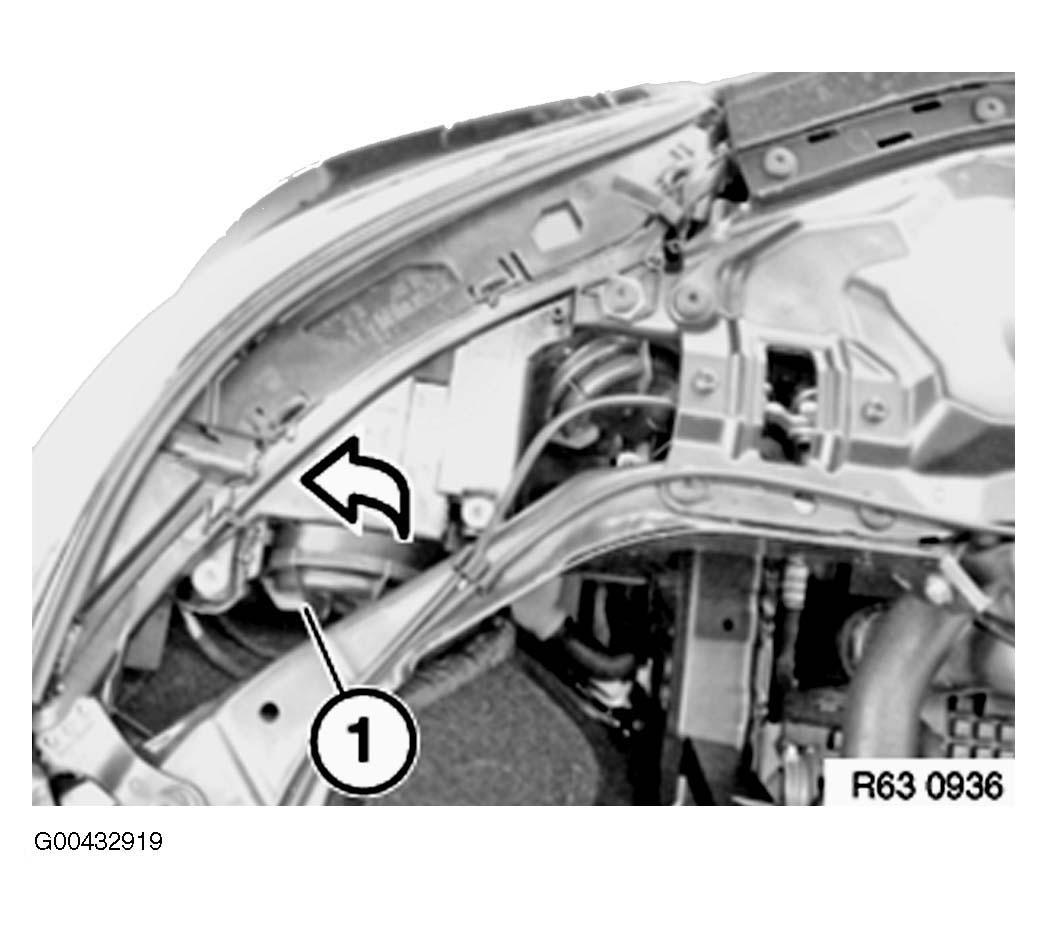

Turn protective cap (1) approx. 30° in direction of arrow and remove from headlight.

Installation: Make sure cover (1) is correctly seated on headlight.

Fig 1: Ensuring Cover Is Correctly Seated On Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

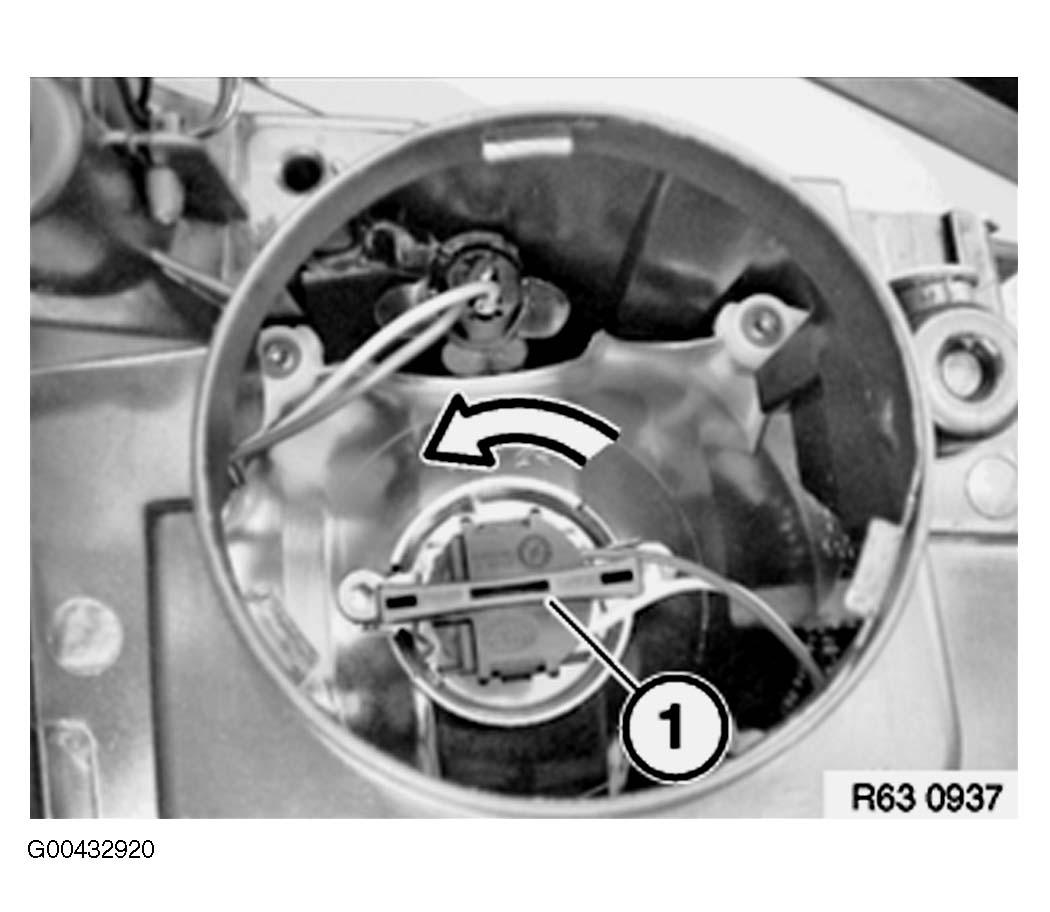

Turn bulb holder (1) in direction of arrow and feed together with bulb out of headlight. Disengage spring wire clip (2). Remove bulb (3) towards rear from headlight (4).

Fig 2: Turning Bulb Holder In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

Installation: Make sure retaining tabs are correctly seated.

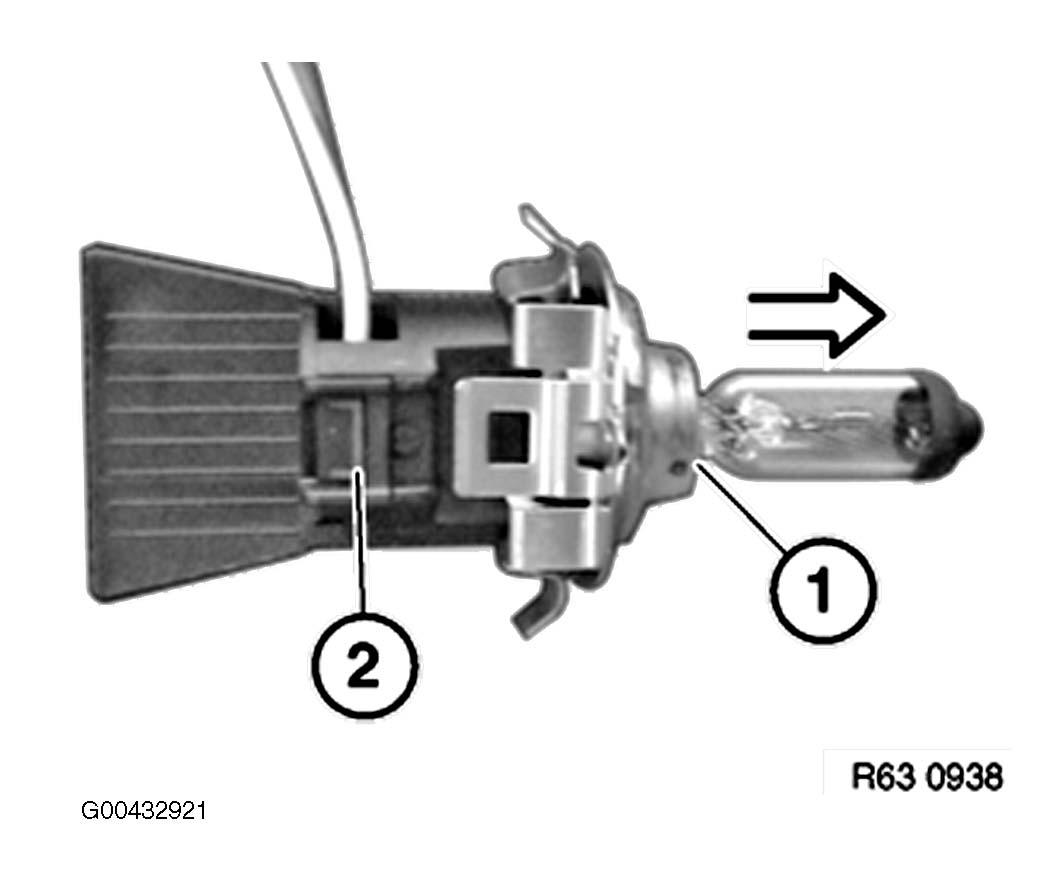

Pull bulb (1) out of bulb holder (2) in direction of arrow.

Installation: Make sure bulb (1) is exactly seated in bulb holder (2).

Fig 3: Ensuring Bulb Is Seated In Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Bulb type. See LIGHTS - TECHNICAL DATA - 525i & 530i (M54/E60) .
