63 10 014 Adjusting fog lamps

WARNING: This page is about a different car, the 2005 BMW 525i and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Comply with test preconditions for headlight adjustment.

With standard front bumper trim:

Adjust fog lamp (1) at adjusting screw (2).

Fig 1: Adjusting Fog Lamp At Adjusting Screw - With Standard Front Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

With M aerodynamic kit:

Adjust fog lamp (1) at adjusting screw (2).

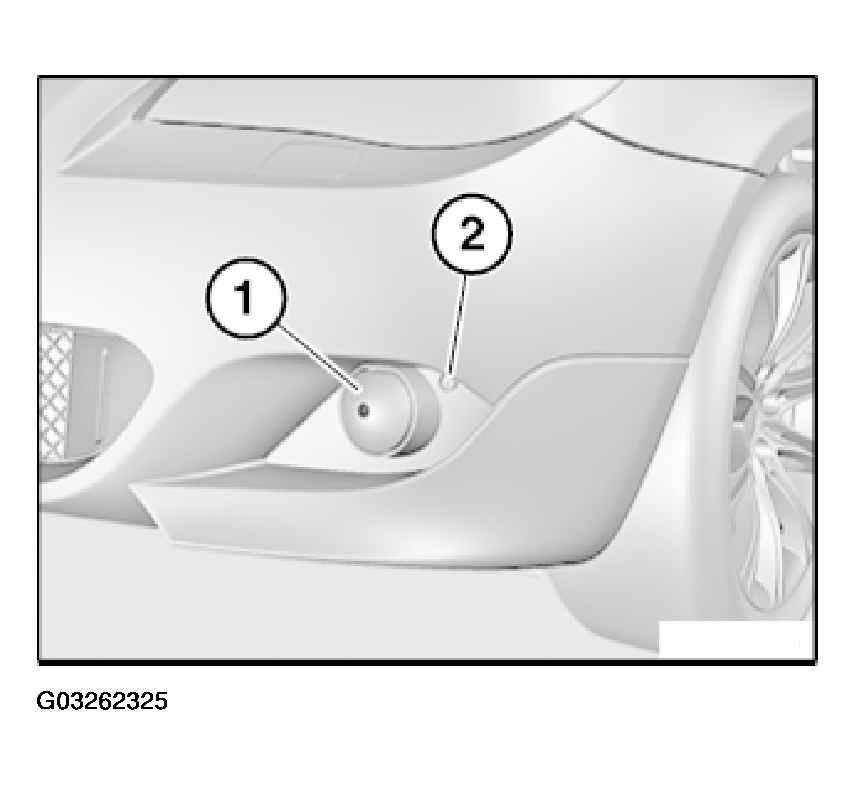

Fig 2: Adjusting Fog Lamp At Adjusting Screw - With M Aerodynamic Kit

Courtesy of BMW OF NORTH AMERICA, INC.
