63 10 004 Adjusting headlights

WARNING: This page is about a different car, the 2005 BMW 525i and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Comply with test preconditions for headlight adjustment.

Adjust headlights at adjusting screws (1) and (2).

A definite allocation of adjusting screws is not possible.

Adjustment screw primarily for vertical adjustment
Adjustment screw primarily for lateral adjustment

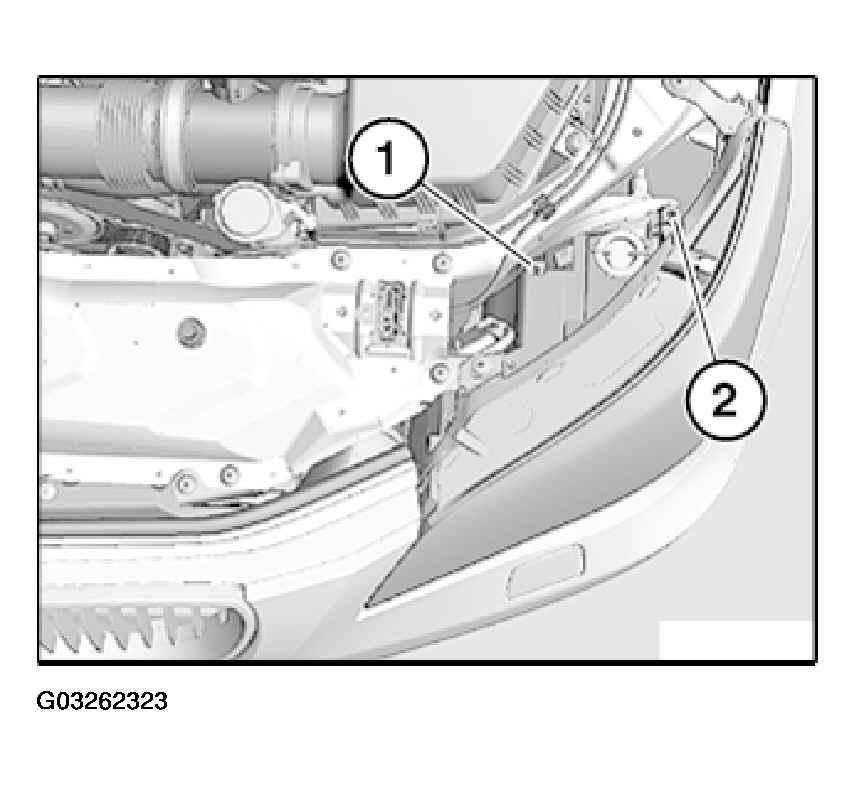

Fig 1: Adjusting Headlights At Adjusting Screws (1) And (2)

Courtesy of BMW OF NORTH AMERICA, INC.
